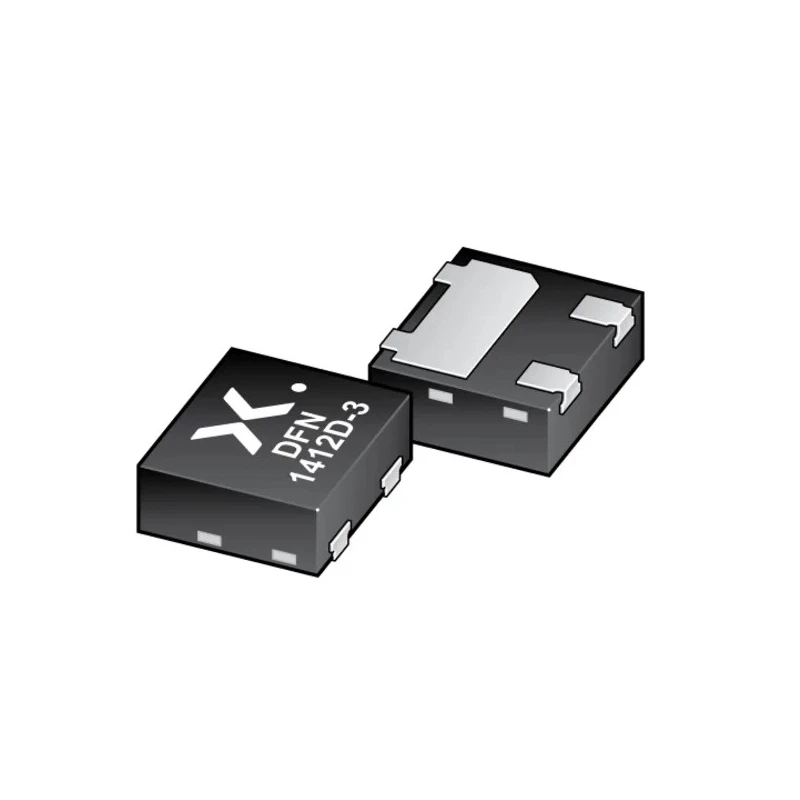

Nexperia Bipolar Transistor PNP 500 mA, 45 V, 3-Pin DFN1412D-3 Package BC807-16QC-QZ

Free Delivery in India | Lowest Global Shipping Charges

Nexperia Bipolar Transistor PNP 500 mA, 45 V, 3-Pin DFN1412D-3 Package BC807-16QC-QZ

Name: Nexperia Bipolar Transistor PNP 500 mA, 45 V, 3-Pin DFN1412D-3 Package BC807-16QC-QZ
Brand: Nexperia
SKU: 114583
Price: 0.07 USD
Availability: InStock



Category Bipolar Transistor Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Model	BC807-16QC-QZ
Mount Type	Surface
Series	BC807QB-Q
Maximum Operating Temperature	150°C
Package Type	DFN1412D-3
Minimum Operating Temperature	-55°C
Standards/Approvals	RoHS
Pin Count	3
Maximum Collector Emitter Voltage Vceo	-45V
Minimum DC Current Gain hFE	100
Transistor Polarity	PNP
Maximum Emitter Base Voltage VEBO	-5V
Maximum Collector Base Voltage VCBO	-50V
Automotive Standard	AEC-Q101
Maximum DC Collector Current Idc	-500mA
Transistor Configuration	PNP

Key Features

Designed in ultra-small leadless surface-mount DFN1412D-3 package.
Offers a maximum DC collector current of 500 mA for efficient switching applications.
Withstands a maximum collector-emitter voltage of 45 V suitable for low-voltage circuits.
Qualified according to AEC-Q101 standard for automotive reliability.
Low package height (0.5 mm) suitable for compact PCB designs.
High current gain with minimum hFE of 100 for amplification needs.
RoHS compliant ensuring environmental safety.
Supports operating temperature range from -55°C up to 150°C.

Product Description

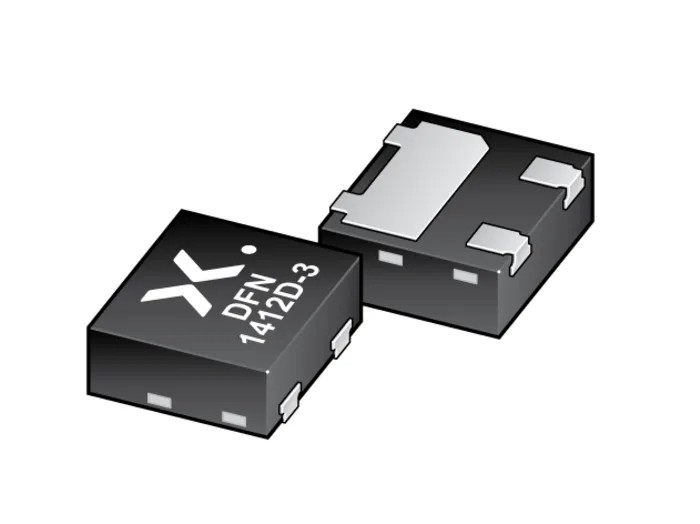

Nexperia BC807-16QC-QZ bipolar transistor is a PNP transistor with a maximum DC collector current rating of 500 mA and a maximum collector-emitter voltage of 45 V. Packaged in an ultra-small DFN1412D-3 (SOT8009) leadless surface-mounted device, it features side-wettable flanks for enhanced manufacturing inspection.

This transistor provides high power dissipation capability with three current gain selections, enabling versatile use in amplification and switching circuits. The small footprint and low package height of 0.5 mm make it ideal for space-constrained PCB designs.

Qualified according to the AEC-Q101 automotive standard, the BC807-16QC-QZ is recommended for automotive applications requiring reliability at a wide operating temperature range from -55°C to 150°C. RoHS compliance ensures environmental friendliness.

The device is well-suited for industrial, automotive, and electronic circuit boards where compactness, reliability, and performance are critical. Designed in ultra-small leadless surface-mount DFN1412D-3 package. Maximum DC collector current of 500 mA for efficient switching and amplification.

Maximum collector-emitter voltage rating of 45 V for low voltage circuit protection. Minimum DC current gain (hFE) of 100 ensures effective amplification. RoHS compliant for environmentally safe use. Operates reliably in temperature range from -55°C to 150°C.

AEC-Q101 qualified for automotive-grade applications. Side-wettable flanks enable automatic optical inspection during PCB assembly. Low profile (0.5 mm height) fits compact electronic assemblies. Recommended for automotive, industrial, and general-purpose electronics.
