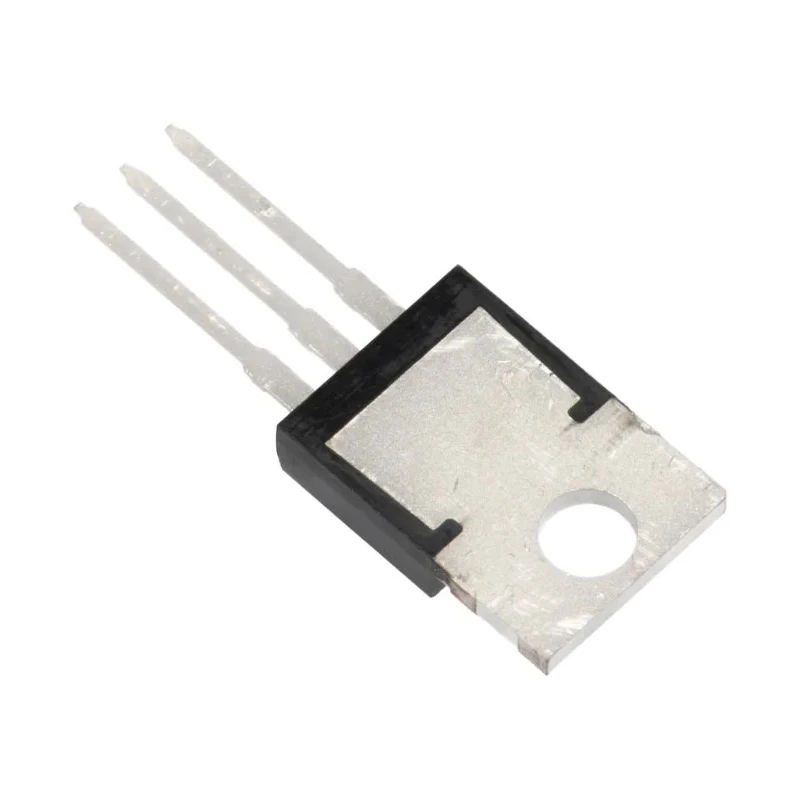

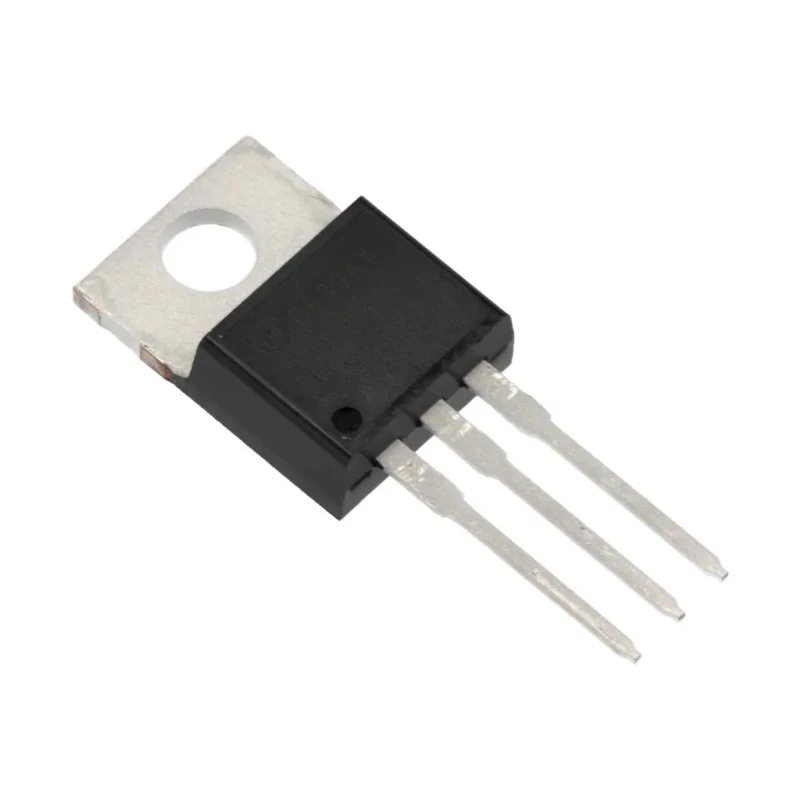

onsemi Digital Transistor 390V N-Channel 46A TO-220 3-Pin ISL9V5036P3-F085
Specifications
| Country of Origin | Philippines |
|---|---|
| Brand | onsemi |
| Height | 9.4mm |
| Length | 10.67mm |
| Model | ISL9V5036P3-F085 |
| Width | 4.7mm |
| Mount Type | Through Hole |
| Series | EcoSPARK |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-220 |
| Standards/Approvals | RoHS Compliant |
| Pin Count | 3 |
| Maximum Continuous Collector Current Ic | 46A |
| Maximum Collector Emitter Voltage Vceo | 390V |
| Transistor Polarity | N-Channel |
| Maximum Collector Emitter Saturation Voltage VceSAT | 1.8V |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 250W |
| Transistor Configuration | Single |
Key Features
- TO-220 package ensures easy mounting and excellent thermal performance.
- Maximum collector-emitter voltage of 390 V suitable for robust switching circuits.
- Supports a continuous collector current up to 46 A for high current applications.
- N-channel configuration enhances switching efficiency.
- Includes an internal diode for voltage clamping without external components.
- Logic level gate drive for easy integration with digital electronics.
- Maximum power dissipation of 250 W ensures reliability in demanding uses.
- Operates up to 175°C for automotive and industrial durability.
Product Description
The onsemi ISL9V5036P3-F085 Digital Transistor combines advanced N-channel switching performance with robust construction, making it ideal for demanding automotive and industrial applications. The device features a TO-220 package, which provides both mechanical stability and optimum heat dissipation. With a maximum collector-emitter voltage of 390 V and continuous collector current rating of 46 A, this transistor offers reliable performance for power switching, ignition circuits, and high-current control solutions.
The ISL9V5036P3-F085 benefits from an internal diode, enabling voltage clamping without the need for additional external components. This simplifies circuit design and enhances robustness in environments where voltage spikes may occur. Supporting a maximum power dissipation of 250 W, the device is engineered for efficiency under prolonged operational loads.
Its logic level gate drive allows straightforward integration with digital control systems and microcontrollers. Because of its N-channel configuration and single transistor design, users can optimize circuit efficiency for automotive ignition, body electronics, and similar applications requiring high-speed and high-current capability.
With a three-pin layout, mounting is efficient and reliable, ideal for through-hole PCB installation. The device meets RoHS standards and AEC-Q101 automotive requirements, confirming its suitability for environmentally responsible and safety-critical projects.
Additional technical details include maximum collector-emitter saturation voltage VceSAT of 1.8 V, a maximum operating temperature of 175°C, and dimensions of 10.67 mm (length), 9.4 mm (height), and 4.7 mm (width). The EcoSPARK series designation indicates optimized energy performance for automotive ignition coil drivers and similar use cases.
Practical applications span automotive coil drivers, power management modules, body electronics, and other industrial systems requiring robust transistor operation. Its design prioritizes high efficiency, safety, and ease of integration.
