DiodesZetex PNP Bipolar Transistor, 3 A Collector Current, 50 V Collector Emitter Voltage, Surface Mount SOT-89 DPLS350Y-13

DiodesZetex DPLS350Y-13 is a high-performance PNP bipolar transistor designed for general purpose switching and amplification in electronic circuits. Offering a maximum collector current of -3 A and maximum collector emitter voltage of -50 V, this transistor meets a wide range of industrial and commercial application requirements.

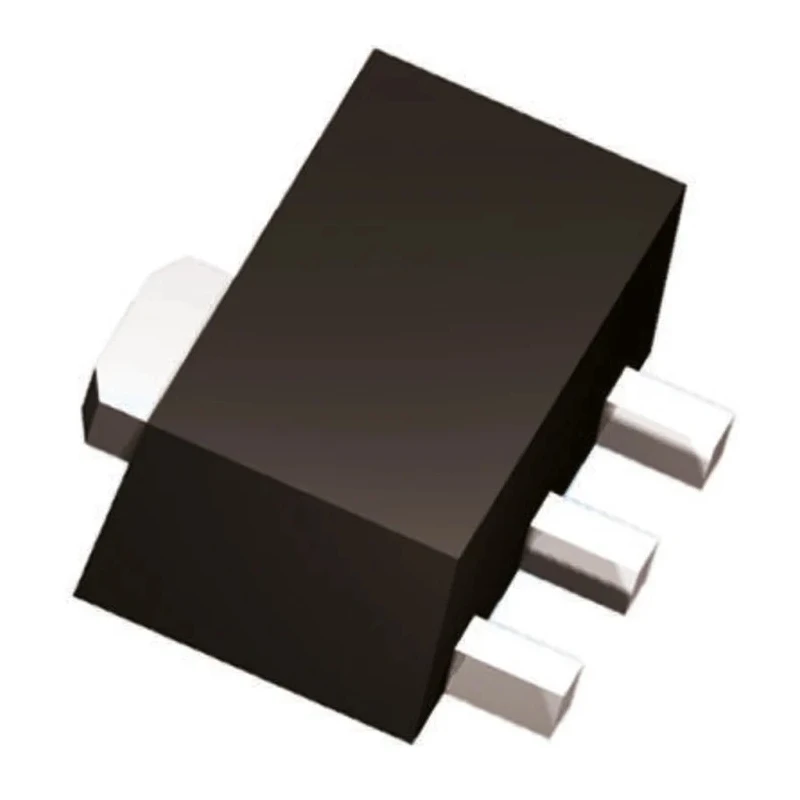

Encapsulated in a compact SOT-89 surface mount package with dimensions of 4.6 mm length, 4.25 mm width, and 1.6 mm height, it supports efficient PCB space utilization. The transistor is rated for maximum power dissipation of 2 watts, ensuring reliability under load. It also accommodates a transition frequency (ft) of 100 MHz, making it suitable for moderately high-frequency applications.

Operational across a broad temperature range from -55°C to 150°C, the DPLS350Y-13 transistor is rugged and capable of maintaining performance in harsh environments. Additional features include a minimum DC current gain (hFE) of 80 and conformity to the automotive standard AEC-Q101, which ensures suitability for automotive electronics.

This transistor's 3-pin configuration and surface mount design facilitate easy integration into automated manufacturing processes and compact electronic devices. Maximum DC collector current: -3 A. Maximum collector-emitter voltage: -50 V.

Package type: SOT-89 surface mount. Maximum power dissipation: 2 W. Transition frequency: 100 MHz. Operating temperature range: -55°C to 150°C. Minimum DC current gain: 80. Automotive standard: AEC-Q101 certified.

This transistor is suitable for industrial electronics, automotive systems, power management, and general semiconductor applications requiring reliable PNP bipolar transistor performance. Browse more in our Bipolar Transistor category for diverse component selections.
