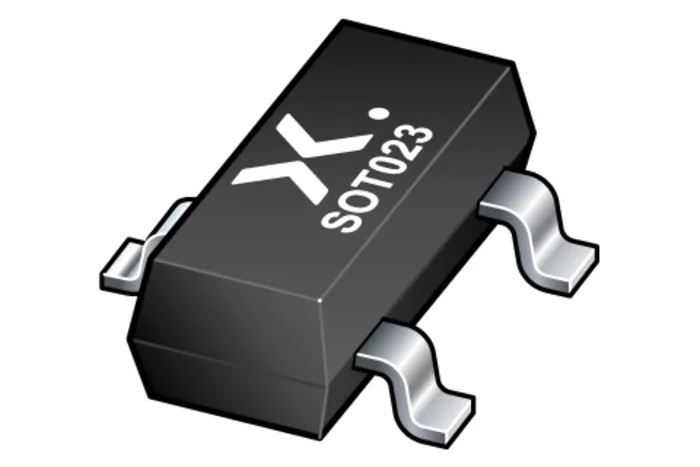

Nexperia Resistor-Equipped PNP Transistor, -100mA Collector Current, -50V Voltage, 3-Pin SOT, AEC-Q101 PDTA113ZT,215

Free Delivery in India | Lowest Global Shipping Charges

Nexperia Resistor-Equipped PNP Transistor, -100mA Collector Current, -50V Voltage, 3-Pin SOT, AEC-Q101 PDTA113ZT,215

Name: Nexperia Resistor-Equipped PNP Transistor, -100mA Collector Current, -50V Voltage, 3-Pin SOT, AEC-Q101 PDTA113ZT,215
Brand: Nexperia
SKU: 398240
Price: 0.02 USD
Availability: InStock



Category Bipolar Transistor Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	1mm
Length	2.9mm
Model	PDTA113ZT,215
Width	1.3mm
Mount Type	Surface
Series	PDTA113ZT
Maximum Operating Temperature	150°C
Package Type	SOT
Minimum Operating Temperature	-65°C
Pin Count	3
Maximum Collector Emitter Voltage Vceo	-50V
Minimum DC Current Gain hFE	35
Transistor Polarity	PNP
Maximum Emitter Base Voltage VEBO	-5V
Maximum Collector Base Voltage VCBO	-50V
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	250mW
Maximum DC Collector Current Idc	-100mA
Transistor Configuration	Single
ROHM DTA113ZCAHZGT116 Digital Transistor, -50 V PNP Surface SOT-23, 3-PinBrand	ROHM

Key Features

This transistor combines a transistor with built-in bias resistors for reduced component count.
It has a maximum power dissipation of 250 mW supporting efficient operation.
Featuring a gain hFE minimum of 35 and PNP polarity for circuit compatibility.
Designed with surface mount SOT package and a compact size of 2.9mm length, 1.3mm width, and 1mm height.
Qualified to automotive standard AEC-Q101 ensuring reliability in automotive applications.
Operating temperature range is between -65°C and 150°C for extended environmental usage.
Pin count is 3 enabling straightforward integration into circuits.

Product Description

Nexperia PDTA113ZT,215 resistor-equipped transistor is a high-quality PNP transistor designed for space and cost savings in electronic circuit design by integrating built-in bias resistors.

This device has a maximum DC collector current of -100mA and collector-emitter voltage rating of -50V, making it suitable for various electronic applications requiring these electrical characteristics.

The transistor is housed in a small 3-pin SOT surface mount package measuring 2.9 mm in length, 1.3 mm in width, and 1 mm in height to support compact PCB layouts. It supports dissipation up to 250mW and exhibits a minimum current gain (hFE) of 35, providing reliable amplification performance.

Being AEC-Q101 qualified, this transistor meets stringent requirements demanded in automotive electronics and robust industrial environments. Operating temperature range from -65°C to 150°C makes it applicable in harsh ambient conditions commonly found in automotive, industrial, and consumer electronics.

This transistor combines a transistor with built-in bias resistors for reduced component count. It has a maximum power dissipation of 250 mW supporting efficient operation. Featuring a gain hFE minimum of 35 and PNP polarity for circuit compatibility.

Designed with surface mount SOT package and a compact size of 2.9mm length, 1.3mm width, and 1mm height. Qualified to automotive standard AEC-Q101 ensuring reliability in automotive applications. Operating temperature range is between -65°C and 150°C for extended environmental usage.

Pin count is 3 enabling straightforward integration into circuits.

This transistor type is ideal for electronic industrial, automotive, and laboratory use where miniature and reliable Bipolar Transistors are required. It reduces pick-and-place costs and simplifies PCB assembly.
