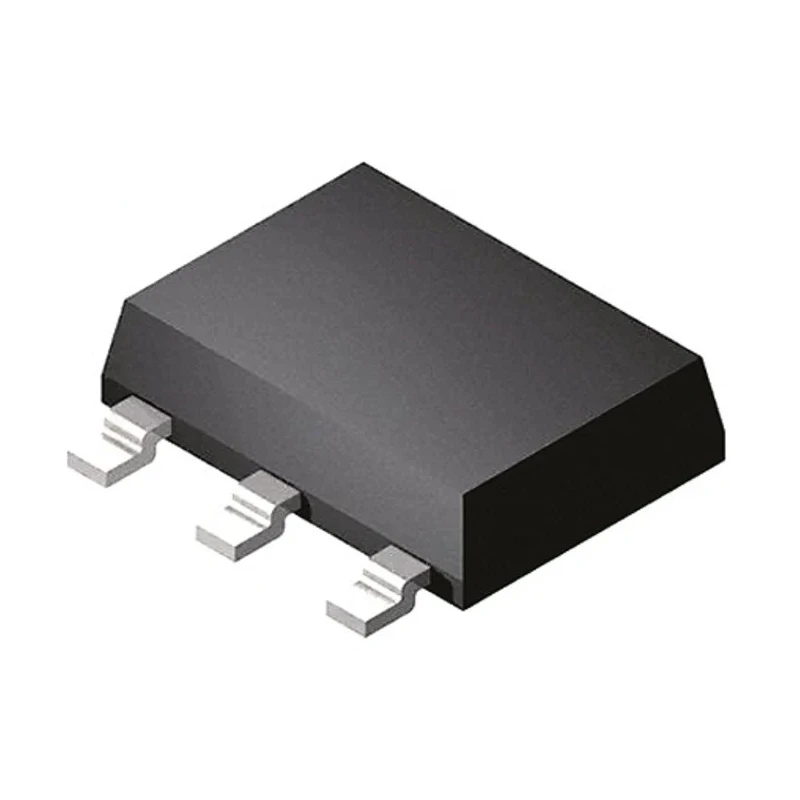

DiodesZetex High Voltage PNP Bipolar Transistor, -500 mA, -300 V, 4-Pin SOT-223 FZT757TA
Specifications
| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Height | 1.7mm |
| Length | 6.7mm |
| Model | FZT757TA |
| Width | 7.3mm |
| Mount Type | Surface |
| Series | FZT757 |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-223 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 4 |
| Maximum Collector Emitter Voltage Vceo | -300V |
| Minimum DC Current Gain hFE | 40 |
| Transistor Polarity | PNP |
| Maximum Emitter Base Voltage VEBO | -5V |
| Maximum Collector Base Voltage VCBO | -300V |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 2W |
| Maximum DC Collector Current Idc | -500mA |
| Transistor Configuration | Single |
| Maximum Transition Frequency ft | 30MHz |
Key Features
- Maximum DC collector current of -500 mA for moderate current handling.
- Collector emitter voltage rating of -300 V ensuring high voltage tolerance.
- Maximum power dissipation capacity of 2 watts for reliable thermal management.
- Transistor configured as a single PNP type suitable for switch and amplifier circuits.
- Compact SOT-223 package with 4 pins optimized for surface mount applications.
- High temperature operating range from -55°C to 150°C for harsh environment performance.
- Minimum DC current gain (hFE) of 40 providing adequate amplification.
- Maximum transition frequency of 30 MHz supporting moderate frequency electronics.
Product Description
The DiodesZetex FZT757TA is a high voltage PNP bipolar transistor suitable for a broad range of electronic and industrial applications including power management, switching, and amplification. Featuring a maximum DC collector current of -500 mA and a collector emitter voltage of -300 V, this device offers robustness in handling moderate electrical loads with excellent voltage tolerance.
Its single transistor configuration in a compact 4-pin SOT-223 surface mount package enables easy integration into densely populated circuit boards. The transistor supports a maximum power dissipation of 2 watts, ensuring efficient thermal management during operation.
Designed to operate reliably in extreme environments, the transistor withstands temperatures from -55°C up to 150°C, making it suitable for automotive and industrial electronics requiring high durability. The device has a minimum DC current gain (hFE) of 40, which provides consistent amplification and switching performance, and it can operate at frequencies up to 30 MHz.
The transistor complies with the AEC-Q101 automotive standard, demonstrating its reliability for automotive electronics applications. Its compact form factor, approximately 7.3 mm in width, 6.7 mm in length, and 1.7 mm in height, allows for precise PCB layout considerations.
Maximum DC collector current of -500 mA. Collector emitter voltage of -300 V. Maximum power dissipation rating of 2 W. Single PNP transistor configuration. Surface mount 4-pin SOT-223 package. Operating temperature range from -55°C to 150°C.
Minimum DC current gain hFE of 40. Maximum transition frequency 30 MHz. Automotive standard AEC-Q101 compliant. Physical dimensions of 7.3 mm wide, 6.7 mm long, 1.7 mm high.
This transistor is ideal for use in electronic circuits within industrial, automotive, and power management systems, offering high voltage tolerance and reliable operation. Ideal for design engineers and manufacturers requiring a durable and compact high-voltage PNP transistor.
