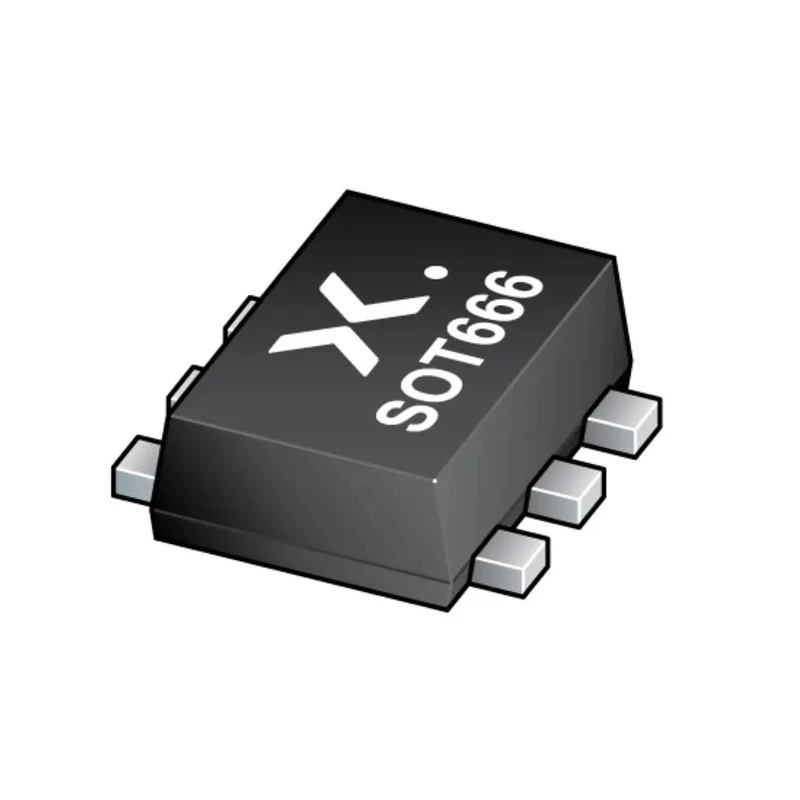

Nexperia Double Transistor NPN + PNP, 500 mA 12 V SOT-666 Package PEMZ7,315

The Nexperia PEMZ7,315 is a double transistor housing both NPN and PNP transistors within a single compact 6-pin SOT-666 surface-mount package. Designed to enable efficient and space-saving layouts on modern PCBs, this component delivers a maximum DC collector current of 500 mA and sustains collector-emitter voltages up to 12 V.

This device is engineered for general-purpose amplification and switching, offering a minimum DC current gain of 200 and a maximum transition frequency of 420 MHz, making it suitable for high-speed electronic circuits. The integrated NPN and PNP configuration allows designers to implement complementary switching stages without the need for separate discrete transistors, reducing board space and improving assembly efficiency.

The SOT-666 package is extremely compact with dimensions of 1.7 mm length, 1.3 mm width, and 0.6 mm height. Featuring flat leads, this device promotes optimal thermal behaviour, self-alignment during soldering, and higher current-handling capabilities in a small footprint. With a maximum power dissipation of 200 mW, the PEMZ7,315 can operate continuously in space-constrained electronics while maintaining performance and reliability.

Operating reliably from -65°C to 150°C, it matches demanding industrial, automotive, and telecommunications standards. The PEMZ7,315 is compliant with AEC-Q101 automotive requirements, ensuring consistent performance for automotive and industrial electronics exposed to harsh environments. Low collector capacitance and VCE(sat) keep signal losses minimal, supporting efficient signal processing in high-density circuits.

This double transistor is especially well-suited for switching, general amplification, and logic-level interface circuits in automotive, telecom, consumer electronics, and industrial equipment. Its ultra-small footprint and robust electrical characteristics unlock new possibilities for miniaturized system design, while its soldering-friendly construction eases automated manufacturing processes.

For engineers developing advanced electronic control systems, battery-powered instrumentation, or high-density logic arrays, the Nexperia PEMZ7,315 delivers versatile performance, proven reliability, and substantial footprint savings. Explore more high-quality double transistors and discrete semiconductor solutions under the Nexperia brand in the Bipolar Transistor category on EnvMart.
