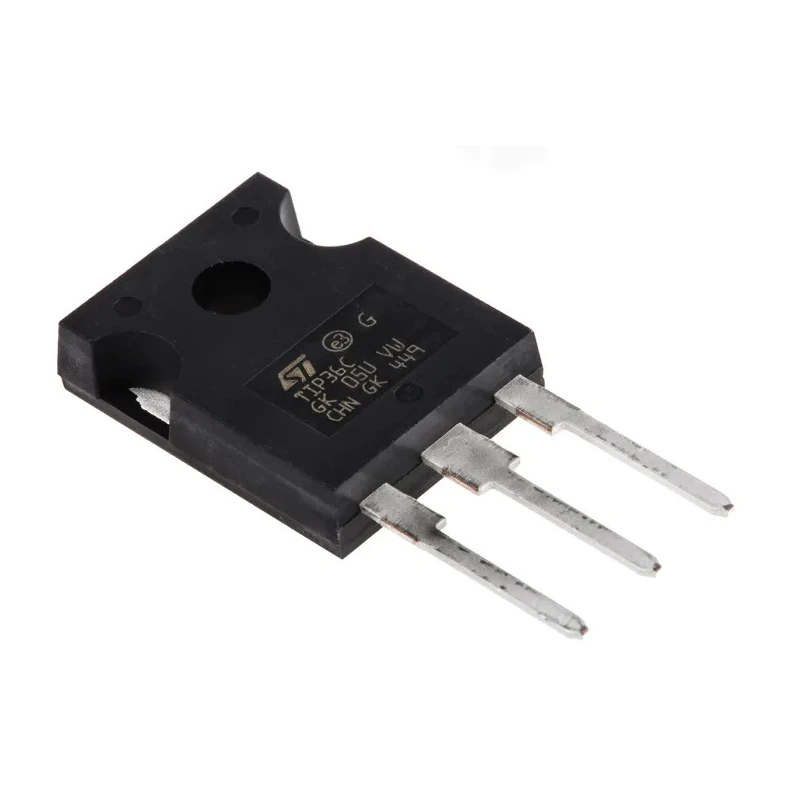

STMicroelectronics Power PNP Bipolar Transistor TIP36C TO-247, -25A, -100V, 125W, Through-Hole
Specifications
| Country of Origin | Planar technology with base island layout |
|---|---|
| Brand | STMicroelectronics |
| Height | 34.95mm |
| Length | 15.75mm |
| Model | TIP36C |
| Width | 5.15mm |
| Mount Type | Through Hole |
| Series | TIP36C |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-247 |
| Pin Count | 3 |
| Maximum Collector Emitter Voltage Vceo | -100V |
| Minimum DC Current Gain hFE | 10 |
| Transistor Polarity | PNP |
| Maximum Emitter Base Voltage VEBO | 5V |
| Maximum Collector Base Voltage VCBO | 100V |
| Maximum Power Dissipation Pd | 125W |
| Maximum DC Collector Current Idc | -25A |
| Transistor Configuration | Single |
| Maximum Transition Frequency ft | 3MHz |
| STMicroelectronics Transistor, -25 A PNP, -100 V, 3-Pin TO-247Brand | STMicroelectronics |
Key Features
- Maximum collector current of -25A enables high power handling.
- Collector-emitter voltage rated at -100V ensures reliability in demanding circuits.
- TO-247 package and through-hole mounting offer robust integration for industrial and audio applications.
- Low collector-emitter saturation voltage supports efficient operation.
- Planar technology with base island layout results in high gain and low saturation voltage.
- Operates up to 125W power dissipation for versatile high-wattage applications.
- Minimum DC current gain hFE of 10 for consistent amplification performance.
Product Description
The STMicroelectronics TIP36C is a high-power PNP bipolar transistor designed for demanding industrial, audio amplification, and switching regulator tasks. This device is part of the TIP35C/TIP36C series, renowned for their complementary NPN/PNP power handling capabilities in both general-purpose and specialized amplifier circuits.
Featuring a TO-247 package, the TIP36C offers robust mechanical integration for through-hole mounting, making it ideal for construction and manufacturing environments. With a maximum collector current of -25A and collector-emitter voltage of -100V, it is engineered to reliably drive high-current loads while maintaining stable electrical performance.
Manufactured using planar technology with base island layout, the TIP36C delivers exceptional amplification gain and ensures minimal collector-emitter saturation voltage. This results in highly efficient power delivery and reliable operation across a range of voltage and current demands. Its maximum power dissipation stands at 125W, suitable for continuous use in power amplifiers, switching converters, and driver stages.
Designed for applications such as audio amplification, switching regulators, converters, and power amplifiers, the TIP36C's performance is further enhanced by its minimum DC current gain hFE of 10 and transition frequency of 3MHz. The transistor's single configuration and PNP polarity make it a versatile component for use in electronic, industrial, and manufacturing systems.
The device is rated to operate at ambient temperatures up to 150°C and features compact dimensions (length 15.75mm, width 5.15mm, height 34.95mm) to fit a variety of circuit designs. The TIP36C is well-suited to both laboratory prototyping and commercial circuit assembly, ensuring reliable amplification and switching in all environments.
Engineers and designers in fields such as industrial controls, HVAC, audio systems, and power conversion benefit from the high-current performance and technical reliability of the STMicroelectronics TIP36C. For further selection in complementary circuits, the TIP35C NPN counterpart is also available, enabling matched pair configurations for optimal circuit design.
Explore more semiconductor and Bipolar Transistor solutions from STMicroelectronics in the EnvMart category section.
