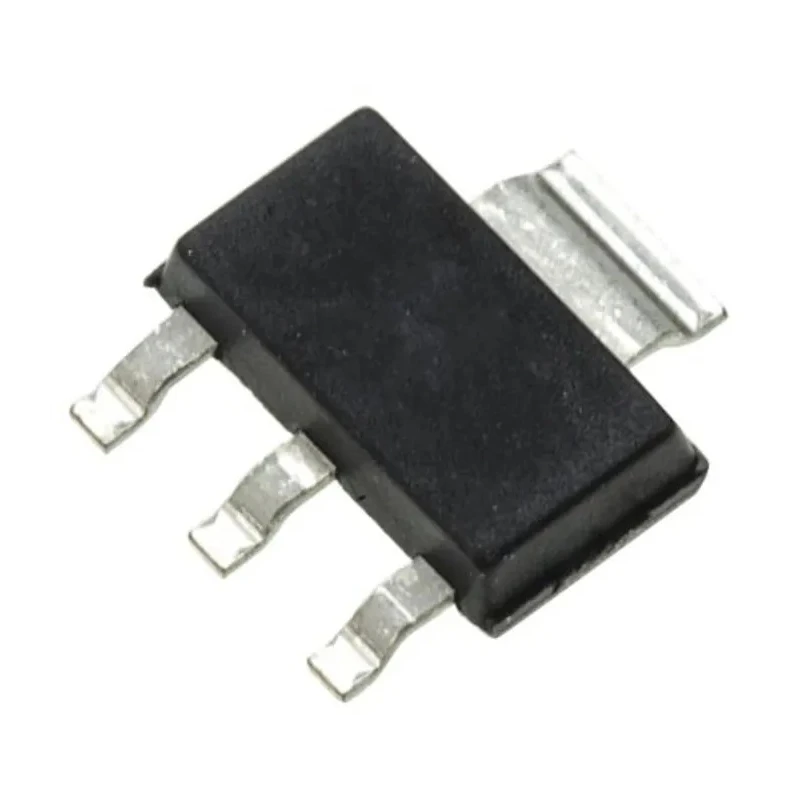

onsemi NPN Bipolar Transistor 6A 60V SOT-223 Surface-Mount, High Gain, AEC-Q101 NSS60601MZ4T1G

onsemi NSS60601MZ4T1G is a high-performance NPN bipolar transistor designed for demanding power management, switching, and linear regulation applications. Its maximum collector current of 6A and collector-emitter voltage rating of 60V make it ideal for a wide range of electronic and automotive uses. The device comes in a compact SOT-223 surface-mount package, ensuring efficient thermal dissipation and ease of integration onto printed circuit boards.

Engineered for reliability, the NSS60601MZ4T1G features high DC current gain and a current-gain bandwidth product that supports fast switching speeds up to 1MHz. Superior gain linearity allows for minimal signal distortion, making it suitable for both switching regulator and linear control circuits. Low collector-emitter saturation voltage ensures minimized power loss, enhancing efficiency in power-critical environments.

This transistor complies with the AEC-Q101 automotive standard, guaranteeing performance for automotive and industrial applications where robust reliability is essential. With four pins, a single transistor configuration, and a surface-mount design, it is optimized for modern electronics requiring space-saving solutions.

Typical applications include linear voltage regulation, power management for portable devices, switching regulators, inductive load drivers such as motors, fans, and relays, as well as linear controls in industrial and laboratory electronic systems.

The NSS60601MZ4T1G is both Pb-free and Halogen/BFR-free, offering minimized power loss and very low current requirements for high-frequency designs. Its minimal distortion and superior thermal characteristics ensure stable performance over a wide operating temperature range up to 150°C.

Maximum collector current of 6A for high load capacity. Rated for 60V collector-emitter voltage for robust power handling. SOT-223 surface-mount package enables compact PCB layout and thermal management. High DC gain, linearity, and rapid switching speed for precision control.

Low saturation voltage improves efficiency and reduces energy consumption. Designed to meet AEC-Q101 for automotive and industrial reliability. Suitable for voltage regulation, power management, switching regulator, and inductive load driver applications.

This transistor is widely used in industrial automation, automotive electronics, laboratory instrumentation, switching power supplies, and other commercial electronic systems requiring reliable, high-speed bipolar devices. Explore more bipolar transistor solutions and related products from onsemi in the Bipolar Transistor category at EnvMart.
