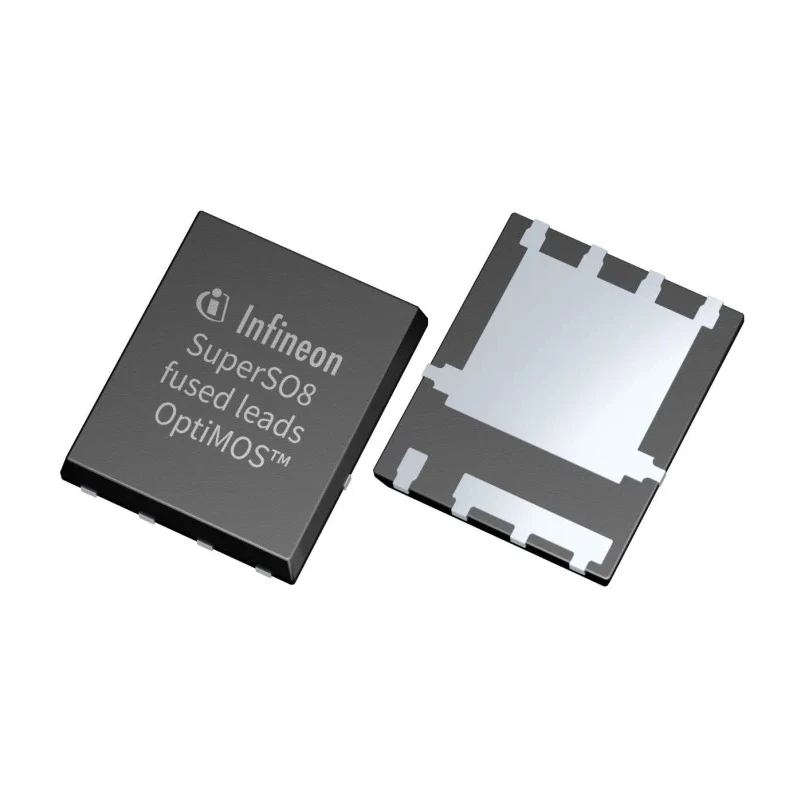

Infineon OptiMOS 5 Type N-Channel MOSFET 145 A 40 V 8-Pin TDSON-8 FL ISC015N04NM5ATMA1

Name: Infineon OptiMOS 5 Type N-Channel MOSFET 145 A 40 V 8-Pin TDSON-8 FL ISC015N04NM5ATMA1
Brand: Infineon
SKU: 113158
Price: 1 USD
Availability: InStock



Category MOSFET Brand Infineon Condition New

Specifications

Country of Origin	India
Brand	Infineon
Height	5.35mm
Length	6.1mm
Model	ISC015N04NM5ATMA1
Width	1.2mm
Mount Type	Surface
Series	OptiMOS 5
Maximum Operating Temperature	175°C
Package Type	TDSON-8 FL
Minimum Operating Temperature	-55°C
Pin Count	8
Channel Type	Type N
Maximum Continuous Drain Current Id	145A
Maximum Drain Source Voltage Vds	40V
Maximum Drain Source Resistance Rds	15mΩ
Maximum Power Dissipation Pd	115W
Typical Gate Charge Qg @ Vgs	67nC
Maximum Gate Source Voltage Vgs	20V

Key Features

Advanced OptiMOS 5 technology optimizes conduction and switching losses for efficiency.
Features an 8-pin TDSON-8 FL surface mount package for compact PCB integration.
Maximum power dissipation rating of 115 W ensures thermal and electrical robustness.
Gate charge of 67 nC supports fast switching capabilities.
Wide operating temperature range from -55°C to 175°C suits industrial applications.
Low drain-source resistance of 15 mΩ minimizes conduction losses.
Surface mount mounting type supports automated assembly processes.
Durability ensured by 100% avalanche testing ensuring reliability in harsh environments.

Product Description

Infineon ISC015N04NM5ATMA1 OptiMOS 5 Type N-Channel MOSFET is engineered for industrial and electronic applications requiring efficient low-voltage power switching. It provides a high maximum continuous drain current of 145 A and a drain-source voltage of 40 V, making it suitable for demanding power management tasks.

This device features a compact 8-pin TDSON-8 FL surface mount package, ideal for space-constrained PCB designs. The advanced OptiMOS 5 technology offers superior thermal resistance and low on-resistance for enhanced power efficiency.

With a typical gate charge of 67 nC, ISC015N04NM5ATMA1 ensures fast switching speeds, improving overall system performance. Its robust construction includes 100% avalanche testing for protection against voltage spikes and transient conditions.

Operating over a wide temperature range from -55°C up to 175°C, it is suitable for industrial, automotive, and commercial applications including motor drives, power supplies, and low-voltage DC-DC converters.

OptiMOS 5 technology delivers low conduction and switching losses. 8-Pin TDSON-8 FL package supports surface mount assembly. Maximum continuous drain current of 145 A provides high current capacity. Drain-source voltage rating of 40 V suitable for low-voltage circuits.

Low Rds(on) of 15 mΩ reduces power losses in operation. Fast switching with 67 nC gate charge enhances efficiency. Wide temperature range from -55°C to 175°C ensures durability. 100% avalanche tested for reliable protection in harsh conditions.

Ideal for power management, motor drives, and industrial electronics.
