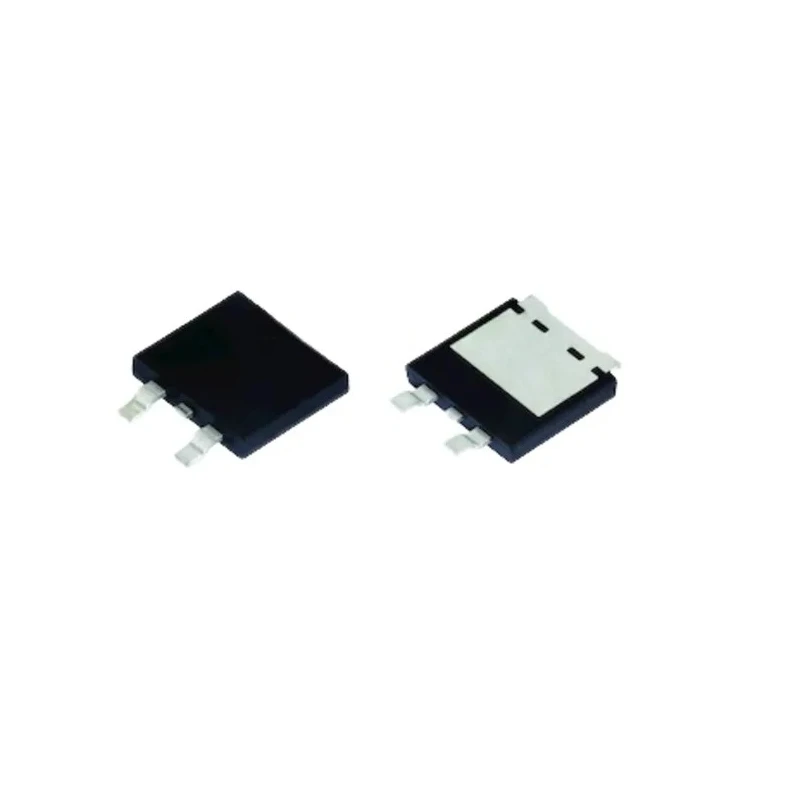

Vishay 150 V 30 A Surface Mount Rectifier & Schottky Diode TO-263 3-Pin V30DM153CHM3/I
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 1.8mm |
| Length | 12.93mm |
| Model | V30DM153CHM3/I |
| Width | 10.2mm |
| Mount Type | Surface |
| Series | V30 |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-263 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 30A |
| Peak Reverse Repetitive Voltage Vrrm | 150V |
| Diode Configuration | 2x Common Cathode Pair |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 10mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 140A |
| Maximum Forward Voltage Vf | 0.96V |
Key Features
- Employs Trench MOS Barrier Schottky technology for fast switching and low forward voltage drop.
- Designed for surface mounting with TO-263 package featuring 3 pins.
- High peak non-repetitive forward surge current rating of 140 A.
- Wide operating temperature range from -40°C to 175°C supports industrial and automotive environments.
- Low profile diode with dimensions 12.93 mm length, 10.2 mm width, and 1.8 mm height.
- Configured as 2x common cathode pair for rectifier and Schottky diode applications.
- Complies with automotive standard AEC-Q101 ensuring reliable automotive grade semiconductor quality.
- Maximum forward voltage is 0.96 V minimizing power losses and improving efficiency.
Product Description
Vishay V30DM153CHM3/I is a high-performance surface mount rectifier and Schottky diode utilizing Trench MOS Barrier Schottky technology. It features a compact TO-263 3-pin package with a low profile height of 1.8 mm and precise dimensions of 12.93 mm length and 10.2 mm width, allowing automated placement on printed circuit boards.
This diode supports a maximum continuous forward current of 30 A and a peak reverse repetitive voltage of 150 V. Its low forward voltage drop of 0.96 V reduces power losses significantly, thereby ensuring high efficiency in power management applications.
The device exhibits a peak non-repetitive forward surge current of 140 A and operates reliably in temperature extremes ranging from -40°C to 175°C, making it suitable for industrial and automotive environments. The diode configuration includes 2 common cathode pairs, enhancing its versatility in rectification and protection circuits.
Designed in compliance with the automotive standard AEC-Q101, this diode assures automotive-grade quality and reliability. With excellent fast switching speeds and low power dissipation, it is ideal for use in high frequency inverters, freewheeling circuits, DC/DC converters, and polarity protection applications.
Its robust construction and optimized electrical specifications render it an excellent choice for electronics in industrial, automotive, and commercial power supply systems. Employs Trench MOS Barrier Schottky technology for efficient switching and low voltage drop.
Compact TO-263 3-pin surface mount package facilitates automated PCB assembly. Handles up to 30 A continuous forward current with 150 V maximum reverse voltage. Wide temperature range supports harsh operating environments.
Conforms to automotive quality standards AEC-Q101 for enhanced reliability. Ideal for use in inverters, converters, and polarity protection circuits. Explore more Vishay semiconductor components and Schottky diode products within EnvMart for your industrial and technical needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for the Vishay V30DM153CHM3/I is 30 A.
This model has a peak reverse repetitive voltage rating of 150 V.
It has a height of 1.8 mm and comes in a TO-263 package type.
The operating temperature range for the Vishay V30DM153CHM3/I is from -40°C to 175°C.
The maximum forward voltage drop is 0.96 V, which helps minimize power losses.
The TO-263 package of this model features 3 pins.
It has a peak non-repetitive forward surge current rating of 140 A.
The diode configuration is a 2x common cathode pair, suitable for rectifier and Schottky diode applications.
Yes, it complies with the automotive standard AEC-Q101, ensuring reliable automotive-grade quality.
It employs Trench MOS Barrier Schottky technology for fast switching and low forward voltage drop.
This model is suitable for use in high frequency inverters, freewheeling circuits, DC/DC converters, and polarity protection applications.
The country of origin for this diode is India.
