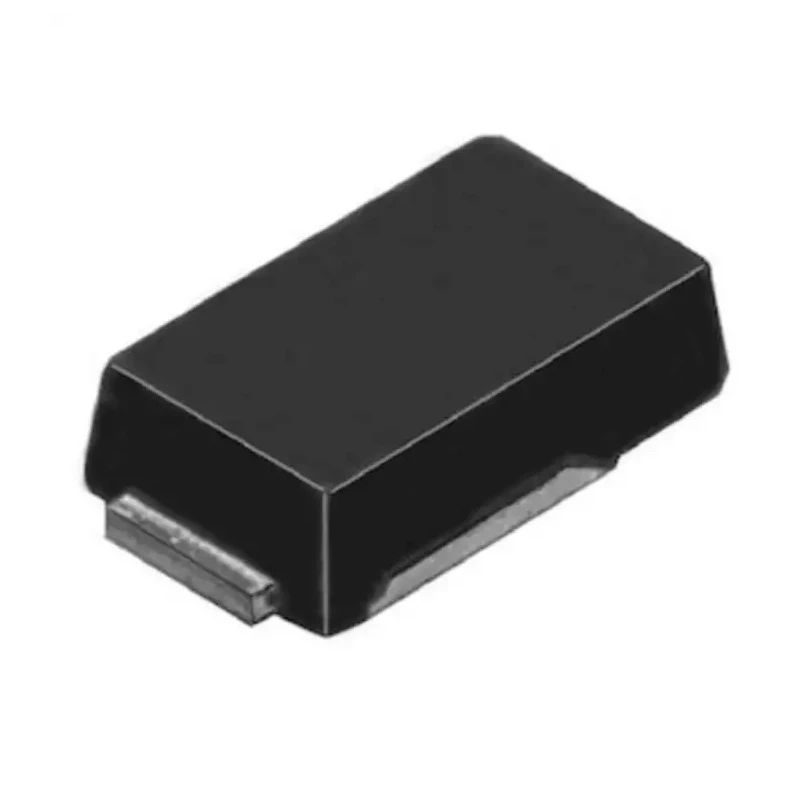

Vishay Schottky Diode 200 V 2 A Surface Mount DO-220AA VS-2ENH01-M3/84A
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 1.15mm |
| Length | 4mm |
| Model | VS-2ENH01-M3/84A |
| Width | 2.18mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-220AA |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 20μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 40A |
| Maximum Forward Voltage Vf | 1V |
Key Features
- Maximum continuous forward current of 2 A with low forward voltage drop.
- Peak reverse repetitive voltage of 200 V ensuring reliable blocking capability.
- Single diode configuration with a 2-pin surface mount DO-220AA package.
- Low peak reverse current of 20 μA reduces leakage losses.
- Operating temperature range from -55°C to 175°C for robust thermal performance.
- Fast switching speeds suitable for DC/DC converters and polarity protection.
- Conforms to RoHS standards and automotive standard AEC-Q101 for quality assurance.
- Manufactured in China with high reliability for industrial and automotive uses.
Product Description
Vishay VS-2ENH01-M3/84A Schottky Diode is a high-performance single diode designed for efficient conduction with a maximum continuous forward current of 2 A and peak reverse voltage of 200 V. Packaged in a compact DO-220AA surface mount type, it ensures easy automated placement and integration on printed circuit boards.
The diode features low forward voltage drop of 1 V and low leakage current, which contributes to reduced power losses in high-frequency inverter circuits, freewheeling applications, and DC/DC converters. Its peak non-repetitive forward surge current of 40 A enables it to withstand transient currents effectively.
Engineered for harsh environments, it operates reliably from -55°C to 175°C, making it suitable for commercial, industrial, and automotive applications. The product meets stringent RoHS compliance and the automotive industry standard AEC-Q101.
The compact DO-220AA package measures 4 mm in length, 2.18 mm in width, and 1.15 mm in height, facilitating space-saving design. This diode is ideal for polarity protection and fast switching applications in electronic circuits.
Maximum continuous forward current of 2 A with low forward voltage drop. Peak reverse repetitive voltage of 200 V ensuring reliable blocking capability. Compact 2-pin DO-220AA surface mount package for automated PCB placement.
Low leakage current with peak reverse current of 20 μA. Wide operating temperature range from -55°C to 175°C for industrial robustness. Fast switching suitable for DC/DC converters and inverter applications. RoHS compliant and meets automotive standard AEC-Q101.
Ideal for automotive, industrial, and commercial electronics. Explore the Vishay semiconductor range for advanced diodes suitable for demanding electronic designs on EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the Vishay VS-2ENH01-M3/84A is 2 A.
This model has a peak reverse repetitive voltage rating of 200 V, ensuring reliable blocking capability.
The DO-220AA package measures 4 mm in length, 2.18 mm in width, and 1.15 mm in height.
It operates reliably within a temperature range of -55°C to 175°C.
The peak non-repetitive forward surge current for this diode is 40 A.
The maximum forward voltage drop is 1 V, contributing to low power losses.
The peak reverse current is rated at 20 μA, which helps reduce leakage losses.
It conforms to RoHS standards and the automotive standard AEC-Q101 for quality assurance.
This diode is configured as a single diode.
It is suitable for applications such as DC/DC converters and polarity protection.
The DO-220AA package has a pin count of 2.
The Vishay VS-2ENH01-M3/84A is manufactured in China.
