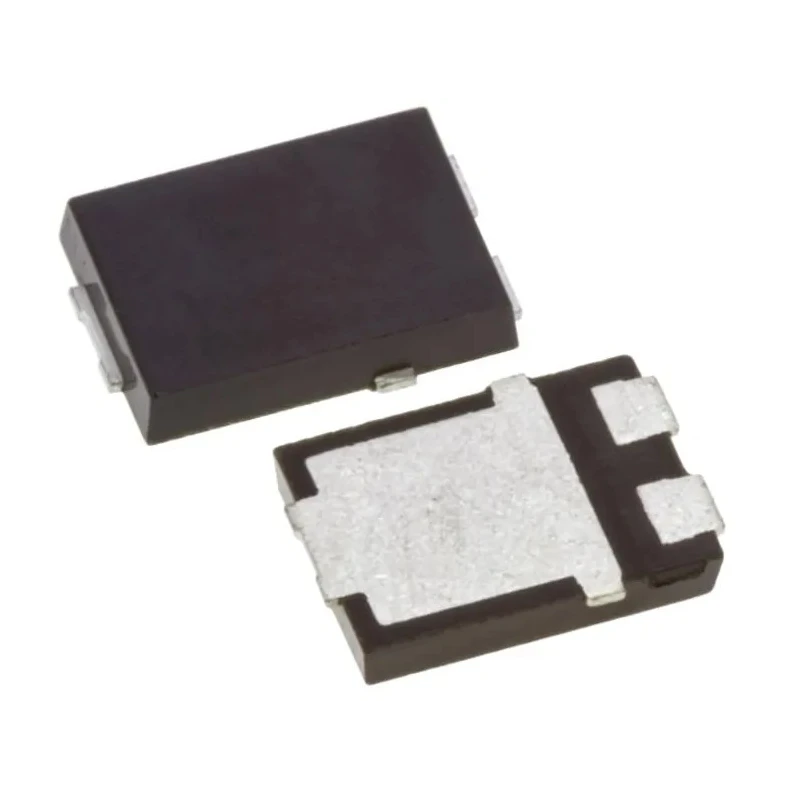

Vishay 60 V 15 A Surface Mount Schottky Diode 2-Pin TO-277 V15PM63HM3/H
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 4.75mm |
| Brand | Vishay |
| Height | 4.8mm |
| Length | 6.65mm |
| Model | V15PM63HM3/H |
| Width | 1.2mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-277 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 15A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 6.5mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 220A |
| Maximum Forward Voltage Vf | 0.66V |
Key Features
- Maximum continuous forward current of 15 A ensures high current handling capability.
- Peak reverse repetitive voltage rated at 60 V for robust voltage protection.
- Low forward voltage drop of 0.66 V reduces power loss and enhances efficiency.
- Trench MOS Barrier Schottky technology delivers high current density and fast switching.
- Wide operating temperature range from -40°C to 175°C suits diverse industrial environments.
- Compact TO-277 surface mount package ideal for automated placement on PCBs.
- Pin count of 2 compatible with standard Schottky diode circuit designs.
- Certified to RoHS standards with automotive AEC-Q101 compliance.
Product Description
Vishay V15PM63HM3/H is a high performance surface mount Schottky diode housed in a compact TO-277 package, designed for demanding electronic applications. With a maximum continuous forward current of 15 A and peak repetitive reverse voltage of 60 V, this diode is suitable for high current rectification tasks.
It features Trench MOS Barrier Schottky technology ensuring ultra low forward voltage drop of approximately 0.40 V at 5 A, minimizing power losses and providing high efficiency in low voltage, high frequency inverters, freewheeling, DC/DC converters, and polarity protection circuits.
The diode operates over a broad temperature range from -40°C up to 175°C, making it highly reliable for automotive and industrial electronics where temperature variation is critical.
The device includes 2 pins in a surface mount TO-277 form factor, facilitating automated PCB assembly processes. This Schottky diode complies with RoHS regulations and meets automotive standard AEC-Q101, indicating suitability for automotive electronics use cases.
It is built for industrial, automotive, commercial electronics manufacturing, and power management systems where efficiency and reliability are paramount. Maximum continuous forward current of 15 A. Peak reverse repetitive voltage 60 V.
Forward voltage drop 0.66 V. Peak non-repetitive forward surge current 220 A. Operating temperature -40°C to 175°C. Trench MOS Barrier Schottky technology. Package type TO-277 surface mount. 2-pin configuration. RoHS compliant and AEC-Q101 certified.
Explore the Vishay range of Schottky diodes and other semiconductor components on EnvMart for industrial and automotive electronics applications.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this Schottky diode is 15 A.
The peak reverse repetitive voltage rating is 60 V.
The forward voltage drop is approximately 0.66 V.
The operating temperature range is from -40°C to 175°C.
This diode is housed in a compact TO-277 surface mount package.
This model has a pin count of 2.
This diode is certified to the automotive standard AEC-Q101.
Yes, this diode complies with RoHS regulations.
The peak non-repetitive forward surge current is 220 A.
It features Trench MOS Barrier Schottky technology for high current density and fast switching.
The peak reverse current is 6.5 mA.
This Schottky diode is suitable for high current rectification tasks, including low voltage, high frequency inverters, DC/DC converters, and polarity protection circuits.
