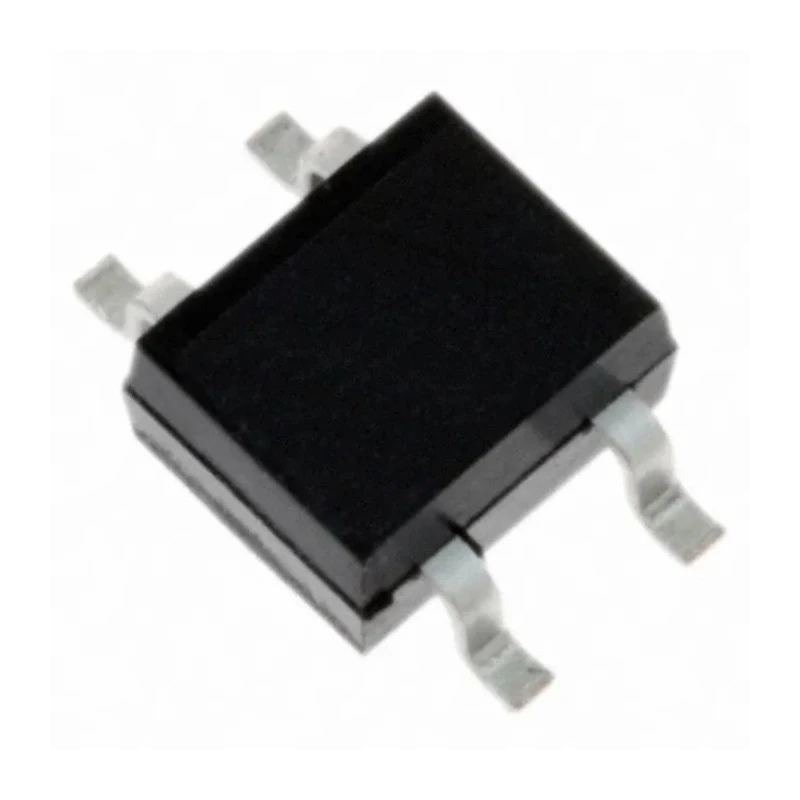

DiodesZetex Bridge Rectifier 1000 V 280 A 4-Pin Surface Mount HBS Package HBS610-13
Specifications
| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Model | HBS610-13 |
| Width | 5.7mm |
| Mount Type | Surface |
| Series | HBS |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | HBS |
| Minimum Operating Temperature | -55°C |
| Number of Phases | 1 |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Automotive Standard | AEC-Q100 |
| Peak Reverse Repetitive Voltage Vrrm | 1000V |
| Peak Reverse Current Ir | 100μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 280A |
| Forward Current If | 6A |
| Peak Forward Voltage Vf | 0.96V |
Key Features
- Glass passivated bridge rectifier with high surge current capacity.
- Peak non-repetitive forward surge current of 280 A ensures high durability.
- Low forward voltage drop of 0.96 V optimizes power efficiency.
- Operating temperature range from -55°C to 150°C for robust industrial usage.
- Compact 5.7 mm width in a low profile HBS package.
- Meets RoHS compliance and AEC-Q100 automotive standard.
- Suitable for switching power supplies and fast charging applications.
- Single-phase configuration with 4 pins for easy PCB surface mounting.
Product Description
DiodesZetex HBS610-13 is a high-performance bridge rectifier designed for reliable AC-to-DC conversion in various industrial and electronic applications. This single-phase, 4-pin device features a glass passivated construction that enhances durability and efficiency.
With a peak reverse repetitive voltage (Vrrm) rating of 1000 V and a forward continuous current (If) of 6 A, the HBS610-13 offers stable operation in demanding environments. It supports a peak non-repetitive forward surge current (Ifsm) up to 280 A, making it suitable for surge-prone power electronics.
The device operates effectively over a temperature range from -55°C to 150°C, ensuring performance stability under thermal stress. Its low forward voltage of 0.96 V reduces power loss and heat generation, optimizing overall system efficiency.
The compact 5.7 mm wide HBS surface mount package allows for space-saving PCB design and efficient heat dissipation. Compliance with RoHS and AEC-Q100 underlines its suitability for automotive and environmentally conscious applications.
This bridge rectifier is ideal for use in switching power supplies, USB power delivery systems, fast charging circuits, and other industrial power conversion setups requiring robust and efficient rectification technology.
Glass passivated bridge rectifier with high surge current capacity. Peak non-repetitive forward surge current of 280 A ensures high durability. Low forward voltage drop of 0.96 V optimizes power efficiency. Operating temperature range from -55°C to 150°C for robust industrial usage.
Compact 5.7 mm width in a low profile HBS package. Meets RoHS compliance and AEC-Q100 automotive standard. Suitable for switching power supplies and fast charging applications. Single-phase configuration with 4 pins for easy PCB surface mounting.
Explore more high-quality bridge rectifiers and semiconductor components at EnvMart for industrial, laboratory, and electronic manufacturing needs.
Explore more products in our Bridge Rectifier Module category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak reverse repetitive voltage (Vrrm) rating of this bridge rectifier is 1000 V.
The forward current capacity (If) of the HBS610-13 is 6 A.
This rectifier can handle a peak non-repetitive forward surge current (Ifsm) of up to 280 A.
The operating temperature range for this model is from -55°C to 150°C.
The forward voltage drop (Vf) of this bridge rectifier is 0.96 V, which optimizes power efficiency.
This rectifier uses a compact HBS package type, with a width of 5.7 mm.
Yes, it meets RoHS compliance and the AEC-Q100 automotive standard.
The configuration of this bridge rectifier is single-phase with 4 pins for easy PCB surface mounting.
The HBS610-13 is suitable for applications such as switching power supplies and fast charging circuits.
The peak reverse current (Ir) rating for this model is 100 μA.
This bridge rectifier is manufactured in India.
The main features include high surge current capacity, low forward voltage drop, and a wide operating temperature range.
