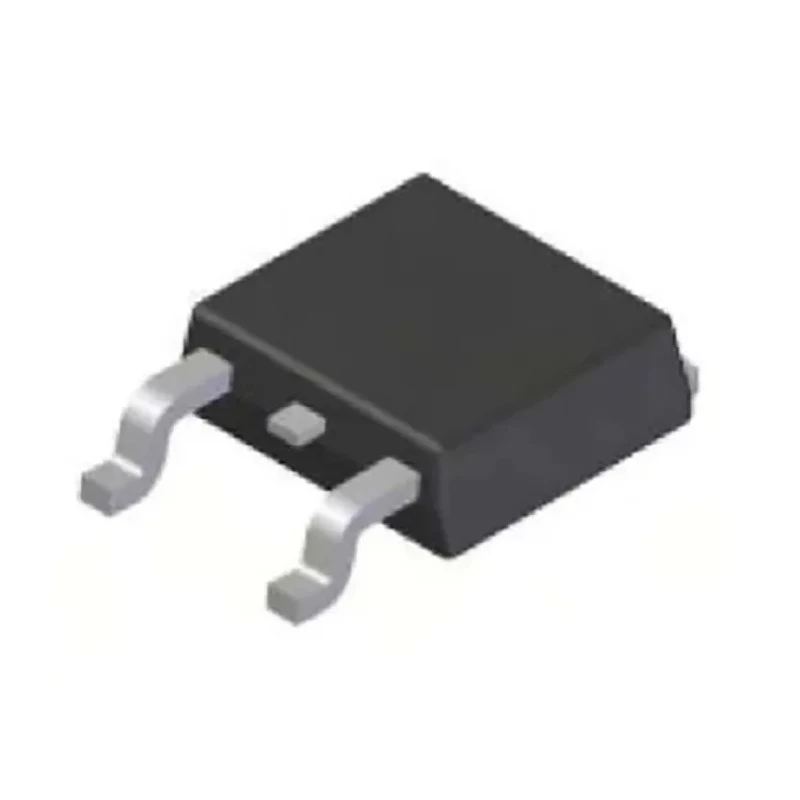

DiodesZetex Type P-Channel MOSFET, 74 A, 40 V Enhancement Mode, 3-Pin TO-252 DMP4011

The DiodesZetex DMP4011 Type P-Channel MOSFET is engineered for high-efficiency power management in electronic circuits requiring high continuous drain current up to 74 A and a maximum drain source voltage of 40 V. Designed in a surface mount 3-pin TO-252 package, this enhancement mode MOSFET offers low on-resistance and superior switching capabilities.

This MOSFET is optimized to minimize on-state resistance while maintaining fast switching speed, making it ideal for industrial, laboratory, and power supply applications. Its wide operating temperature range from -55°C to 150°C supports reliability under varying thermal conditions.

The device features a gate-source voltage limit of 20 V and a forward voltage of approximately -1 V, suitable for efficient operation within electronic power circuits. With a typical gate charge of 52 nC, it provides stable gate drive characteristics for precise control.

Compact physical dimensions including a length of 6.15 mm, width of 5.15 mm, and height of 0.9 mm allows versatile use in modern compact electronic assemblies requiring surface mount components.

Key benefits include low power dissipation of 1.8 W facilitating thermal management and a robust channel mode enhancement ensuring dependable switching performance. The device complies with no specific automotive standards and is manufactured in China.

High continuous drain current rating of 74 A supports demanding loads. Low Rds(on) of 19 mΩ reduces conduction losses. Surface mount TO-252 package enhances assembly efficiency. Wide temperature range from -55°C to 150°C ensures robust operation.

Compact size enables design flexibility in constrained PCB layouts. Typical gate charge of 52 nC balances fast switching and control. Stable gate-source voltage rating at 20 V enables secure gate control. Maximum power dissipation of 1.8 W assists efficient thermal handling.

Ideal for industrial, power management, and electronic applications. Made in China with high manufacturing standards. Explore a wide selection of MOSFETs and semiconductor components on EnvMart to support your industrial and electronic design needs.
