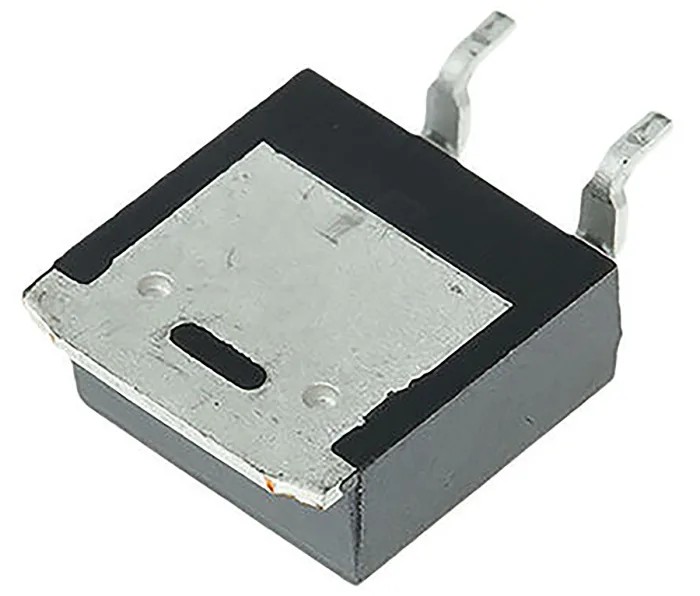

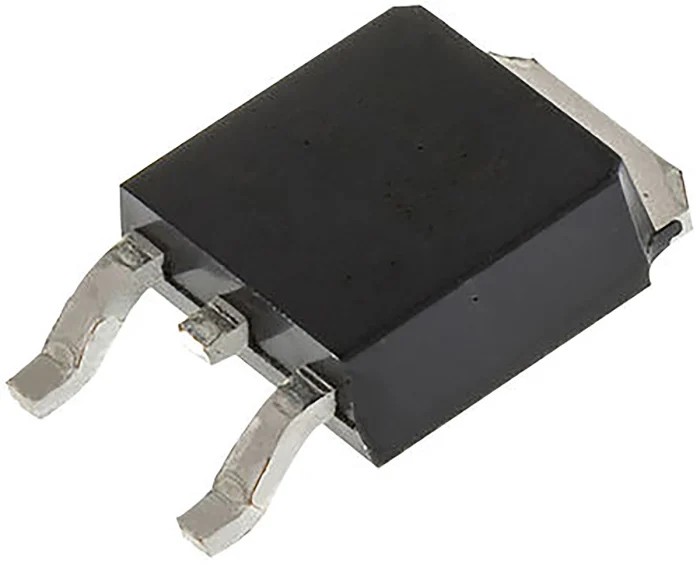

Vishay 600 V 15 A Ultra Fast Diode 3-Pin DPAK Surface Mount TO-252 Package VS-15AWL06FNTR-M3

Vishay VS-15AWL06FNTR-M3 is an ultra fast rectifier diode designed for high efficiency and reliable performance in electronic circuits. It features a rugged 3-pin DPAK (TO-252) surface mount package ideal for power switching and rectification applications. Rated for a maximum continuous forward current of 15 A and a peak reverse repetitive voltage of 600 V, this diode suits demanding industrial and electronic component requirements.

The device delivers rapid switching with a peak reverse recovery time of only 120 nanoseconds, minimizing switching losses in power supplies, inverters, and motor drives. It supports a peak non-repetitive forward surge current of 180 A, ensuring protection during transient overloads. Its low forward voltage drop of 1.05 V enhances energy efficiency by reducing power dissipation.

Designed for robust performance, it operates reliably over a temperature range from -65°C to 175°C, fitting a wide spectrum of industrial environments including power management, automotive electronics, and consumer devices. The diode’s compact footprint with dimensions of 6.73 mm length, 6.22 mm width, and 2.39 mm height facilitates integration into dense circuit boards.

Vishay’s VSX series are well-known for quality and durability, complying with RoHS standards to ensure environmental responsibility. This diode is a key component for designers needing efficient rectification with fast recovery characteristics in semiconductor applications.

Features a 3-pin DPAK surface mount package suitable for compact circuit designs. Ultra fast recovery time of 120 ns optimizes switching performance. Capable of handling peak reverse repetitive voltage of 600 V. Maximum continuous forward current rating of 15 A ensures reliability under load.

Peak non-repetitive forward surge current of 180 A accommodates transient conditions. Low maximum forward voltage of 1.05 V reduces power losses during conduction. Wide operating temperature range from -65°C to 175°C supports harsh environments.

Compact dimensions with length 6.73 mm, width 6.22 mm, and height 2.39 mm enable integration in tight spaces. Complies with RoHS for environmental safety. Manufactured in China under Vishay brand with model VS-15AWL06FNTR-M3.

This product is suitable for use in industrial electronics, power supply design, motor control circuits, and other applications requiring high-speed diode switching with low forward voltage drop. It offers designers a reliable and efficient component choice for various semiconductor and power management projects.
