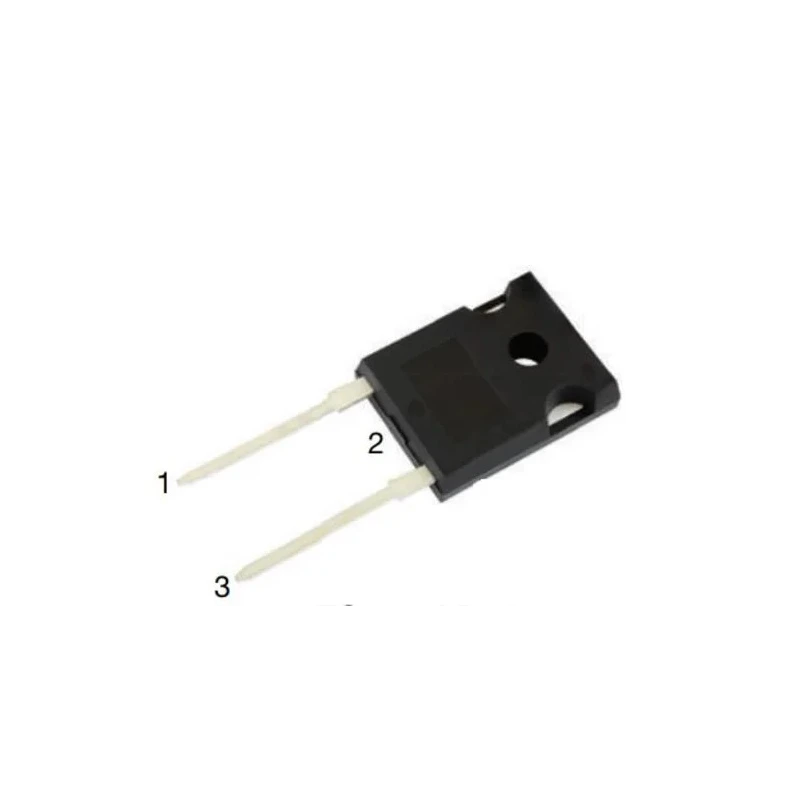

Vishay 600 V 150 A General Purpose Rectifier & Schottky Diode TO-247AD 2L VS-E5PX7506LHN3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | VS-E5PX7506LHN3 |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-247AD 2L |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Maximum Continuous Forward Current If | 150A |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 500μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 565A |
| Maximum Forward Voltage Vf | 2.2V |
| Peak Reverse Recovery Time trr | 75ns |
Key Features
- The diode offers a maximum continuous forward current of 150 A.
- It has a peak reverse repetitive voltage of 600 V.
- Featuring a fast reverse recovery time of 75 ns for high-speed switching.
- Maximum forward voltage drop is 2.2 V, optimizing conduction efficiency.
- Operates reliably within a temperature range of -55°C to 175°C.
- Designed with polyimide passivation for durability and high temperature resistance.
- Peak non-repetitive forward surge current rating of up to 565 A.
- Complies with RoHS standards ensuring environmental safety.
Product Description
Vishay VS-E5PX7506LHN3 is a robust general purpose rectifier and Schottky diode rated at 600 V and 150 A, housed in a TO-247AD 2L through-hole package. This device is engineered to deliver high efficiency with a unique combination of low conduction and switching losses, making it ideal for soft switched and resonant converter circuits.
Its fast reverse recovery time of 75 ns and best-in-class forward voltage drop of 2.2 V enable efficient power conversion at high switching frequencies. The diode supports a peak non-repetitive forward surge current of 565 A and withstands operation in harsh thermal environments, with a junction temperature rating up to 175°C and a minimum operating temperature of -55°C.
Vishay’s Hyperfast rectifier technology incorporated in this diode ensures optimized performance in high-speed operation applications such as electric vehicle and hybrid electric vehicle onboard battery chargers, LLC output rectification stages, and medium frequency hard switching converters.
The device features polyimide passivation for enhanced reliability and durability in industrial environments. It is RoHS compliant, meeting environmental and safety regulations. The diode delivers a maximum continuous forward current of 150 A for demanding power applications.
Peak reverse repetitive voltage is rated at 600 V, suitable for high voltage power electronics. Low 2.2 V forward voltage reduces power dissipation and enhances system efficiency. Fast 75 ns reverse recovery time allows high frequency switching with minimal losses.
Operates across a wide temperature range from -55°C to 175°C for versatile deployment. Limited peak reverse current of 500 μA minimizes leakage and improves circuit performance. Designed with polyimide passivation for increased thermal endurance and reliability.
Peak surge current capability of 565 A handles transient power spikes safely.
This diode is well suited for industrial, automotive, and high speed power supply applications where efficiency and reliability are critical. Its package and thermal ratings make it an excellent choice for harsh environments and demanding electronic circuits.
Discover more industrial semiconductor solutions and technical components in the Electronics & Electricals category at EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this model is 150 A.
It has a peak reverse repetitive voltage rating of 600 V.
The maximum forward voltage drop is 2.2 V, which optimizes conduction efficiency.
This diode supports a peak non-repetitive forward surge current rating of up to 565 A.
It operates reliably within a temperature range of -55°C to 175°C.
This model is designed for through-hole mounting.
The diode features a fast reverse recovery time of 75 ns, suitable for high-speed switching applications.
This diode complies with RoHS standards, ensuring environmental safety.
The peak reverse current is rated at 500 μA, which helps minimize leakage.
It comes in a TO-247AD 2L package type.
This model is well suited for industrial, automotive, and high-speed power supply applications where efficiency and reliability are critical.
The diode configuration is single, designed for general-purpose rectification.
