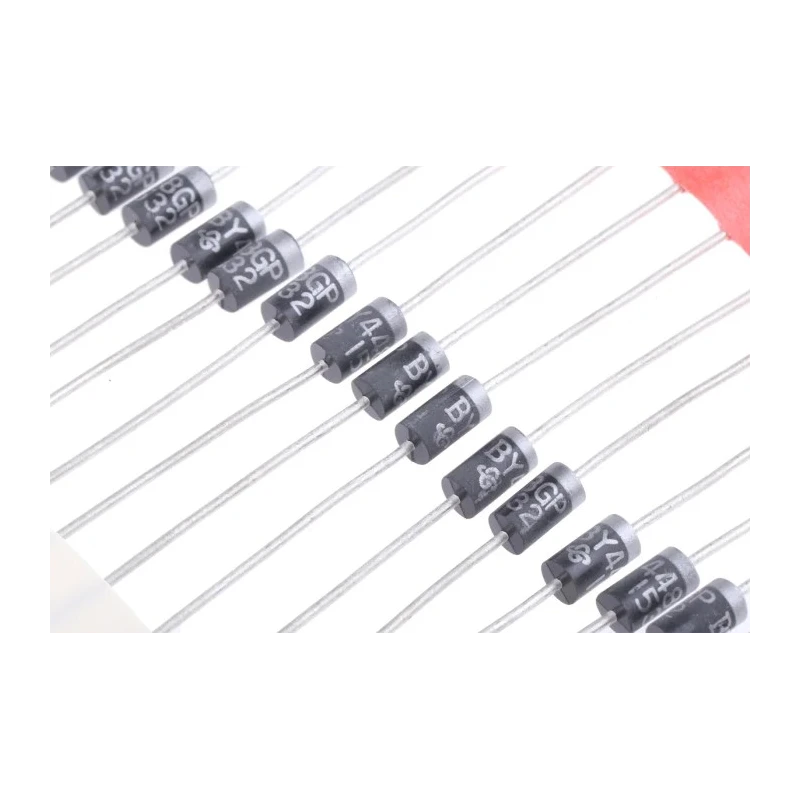

Vishay 1500 V 2 A General Purpose Rectifier Through Hole SOD-57 Package BY448GP-E3/54
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 3.6mm |
| Brand | Vishay |
| Height | 3.6mm |
| Length | 3.6mm |
| Model | BY448GP-E3/54 |
| Width | 4mm |
| Mount Type | Through Hole |
| Series | SUPERECTIFIER |
| Maximum Operating Temperature | 140°C |
| Package Type | SOD-57 |
| Minimum Operating Temperature | 65°C |
| Standards/Approvals | JESD 22-B106, JESD 22-B102, JESD 201 class 1A/2, AEC-Q101, RoHS, UL 94 V-0, J-STD-002 |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 1500V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 40A |
| Maximum Forward Voltage Vf | 1.6V |
| Peak Reverse Recovery Time trr | 20μs |
Key Features
- This rectifier supports a maximum continuous forward current of 2 A.
- Its peak reverse repetitive voltage is rated at 1500 V.
- The diode configuration is single with a 2-pin count for straightforward mounting.
- Features a peak non-repetitive forward surge current of 40 A and maximum forward voltage drop of 1.6 V.
- It has a peak reverse recovery time of 20 microseconds and operates reliably between -65°C to 140°C.
- The package dimensions are compact, with approximately 3.6 mm in height, length, and diameter, and 4 mm width.
- Meets automotive standard AEC-Q101 and complies with RoHS and other industry standards.
- Ideal for use in power electronics requiring efficient fast recovery rectifiers suitable for automotive and industrial applications.
Product Description
Vishay BY448GP-E3/54 is a high-efficiency, general purpose rectifier diode designed to handle 1500 V peak reverse voltage and 2 A continuous forward current. It is housed in a compact SOD-57 through hole package making it suitable for various industrial and automotive electronics applications requiring fast recovery time.
This rectifier features a low forward voltage drop of 1.6 V and supports surge currents up to 40 A, enabling robust performance under transient conditions. Its fast recovery time of 20 microseconds and low peak reverse current of 5 microamperes optimize switching efficiency and reduce power loss.
The device operates across a wide temperature range from -65°C up to 140°C, making it suitable for harsh environments. Its compliance with AEC-Q101 automotive standards and certifications including JESD 22-B106, RoHS, and UL 94 V-0 provides assurance of quality and reliability.
Physical dimensions of 3.6 mm height, length, and diameter with 4 mm width enable compact circuit designs. The rectifier is ideal for power supplies, inverters, and other electronic circuits in industrial equipment, automotive electronics, and general purpose power conversion.
This rectifier supports a maximum continuous forward current of 2 A. Its peak reverse repetitive voltage is rated at 1500 V. The diode configuration is single with a 2-pin count suitable for through hole mounting. The maximum forward voltage drop is 1.6 V for efficient conduction.
Peak reverse recovery time of 20 microseconds minimizes switching losses. Wide operating temperature range from -65°C to 140°C ensures robust use in various environments. Meets automotive-grade standards and is RoHS compliant.
Compact SOD-57 package fits small footprint circuit boards.
This Vishay rectifier diode is designed for demanding industrial, automotive, and power electronics applications requiring reliable and efficient rectification with fast recovery. Browse Vishay components and related semiconductor devices at EnvMart for your electronics manufacturing needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this rectifier is 2 A.
The peak reverse repetitive voltage rating is 1500 V.
The dimensions of the SOD-57 package are approximately 3.6 mm in height, length, and diameter, and 4 mm in width.
The peak non-repetitive forward surge current is rated at 40 A.
The peak reverse recovery time is 20 microseconds.
This rectifier operates reliably between -65°C to 140°C.
It complies with automotive standard AEC-Q101 and other certifications including RoHS, JESD 22-B106, and UL 94 V-0.
This rectifier has a 2-pin configuration suitable for through hole mounting.
The maximum forward voltage drop is 1.6 V.
The BY448GP-E3/54 is a general purpose rectifier.
The peak reverse current is rated at 5 microamperes (5 μA).
This rectifier is ideal for power supplies, inverters, and electronic circuits in industrial and automotive applications.
