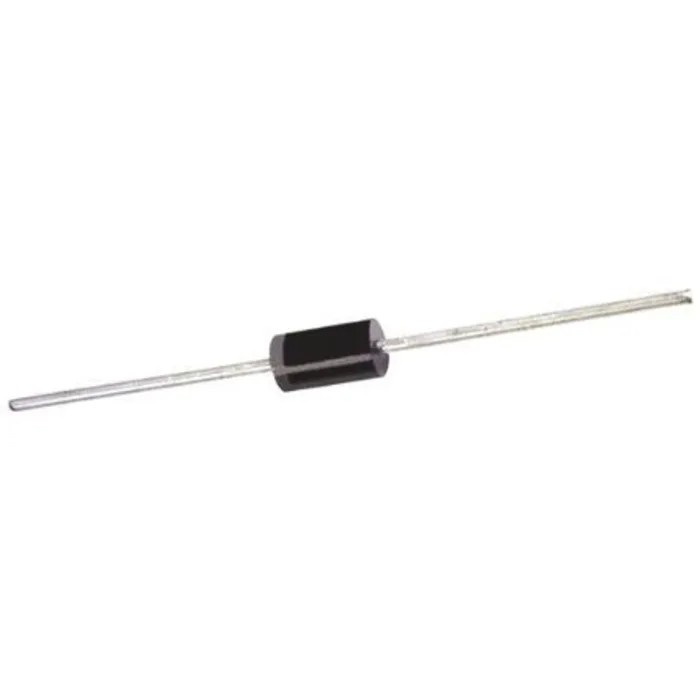

Vishay 30 V 5 A Schottky Diode 2-Pin Through Hole DO-201AD SB530-E3/54
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 5.3mm |
| Brand | Vishay |
| Length | 9.5mm |
| Model | SB530-E3/54 |
| Mount Type | Through Hole |
| Series | SB530 |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-201AD |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 5A |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 50mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 220A |
| Maximum Forward Voltage Vf | 480mV |
Key Features
- Schottky diode with very low forward voltage drop and fast switching speed.
- Maximum continuous forward current rating of 5 A for robust performance.
- Peak reverse repetitive voltage of 30 V suitable for low-voltage rectification.
- 2-pin single diode configuration in a DO-201AD through-hole package.
- Operating temperature range from -65°C to +150°C for wide application tolerance.
- Peak forward surge current rating of 220 A for transient load handling.
- Maximum forward voltage of 480 mV ensures energy efficiency.
- Rated for peak reverse current of 50 mA minimizing leakage.
Product Description
Vishay SB530-E3/54 is a high performance Schottky diode designed for semiconductor applications requiring low power loss and fast switching. This diode features a maximum continuous forward current of 5 A and a peak reverse repetitive voltage of 30 V, making it suitable for low voltage rectification tasks in electronic circuits.
Housed in a rugged DO-201AD through-hole package with 2 pins, this Schottky diode offers reliable thermal and electrical characteristics, including a maximum forward voltage drop of 480 mV and peak forward surge current of 220 A to tolerate short transient overloads.
The diode operates over a wide temperature range from -65°C to +150°C, supporting various industrial, automotive, and electronic environments. Its compact size with a length of 9.5 mm and diameter of 5.3 mm enables easy PCB integration in compact designs.
Schottky diodes such as the SB530-E3/54 are widely used in switching power supplies, voltage clamping, and freewheeling diodes due to their fast switching speeds and low forward voltage drop, enhancing energy efficiency and reducing heat dissipation in power electronics.
Low forward voltage drop ensures minimal power loss. Fast reverse recovery time makes it ideal for switching applications. Durable through-hole DO-201AD package provides mechanical stability. Wide operating temperature range from -65°C to +150°C.
High peak surge current rating supports demanding load conditions.
Designed for applications in power electronics, industrial automation, and consumer electronics, the Vishay SB530-E3/54 diode is a versatile solution for efficient and reliable rectification tasks.
Discover more components in the Schottky Diodes & Rectifiers category on EnvMart for your industrial and electronic manufacturing needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of this model is 5 A.
The peak reverse repetitive voltage for the SB530-E3/54 is 30 V.
It has a maximum forward voltage drop of 480 mV.
The peak forward surge current rating is 220 A.
The operating temperature range for the SB530-E3/54 is from -65°C to +150°C.
This model comes in a DO-201AD through-hole package.
The diode has a diameter of 5.3 mm and a length of 9.5 mm.
It has a 2-pin configuration.
This model is a Schottky rectifier.
The peak reverse current is rated at 50 mA.
It is suitable for low voltage rectification tasks, switching power supplies, and voltage clamping applications.
The country of origin for this diode is China.
