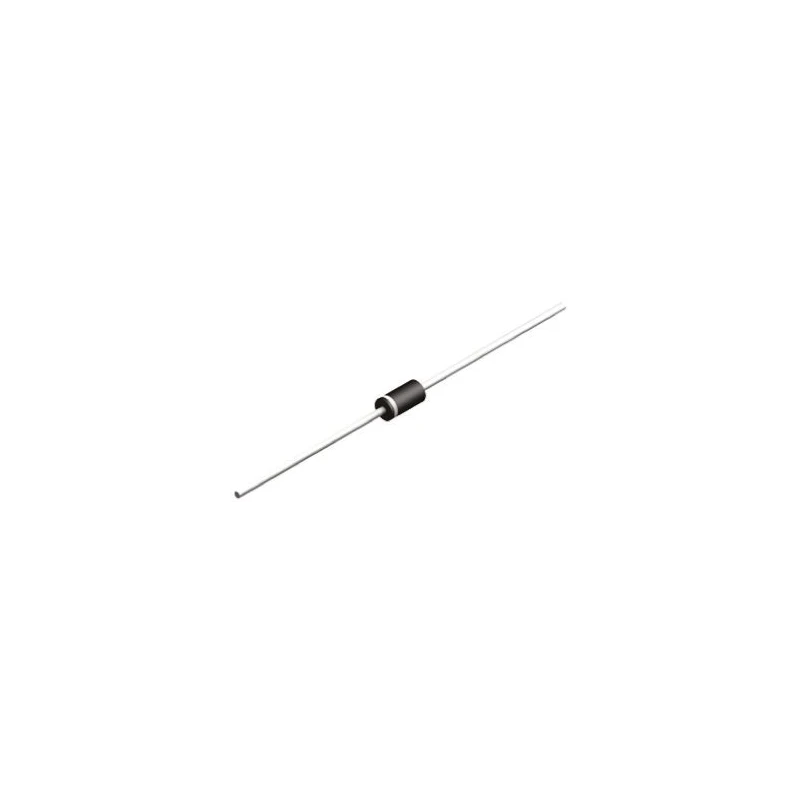

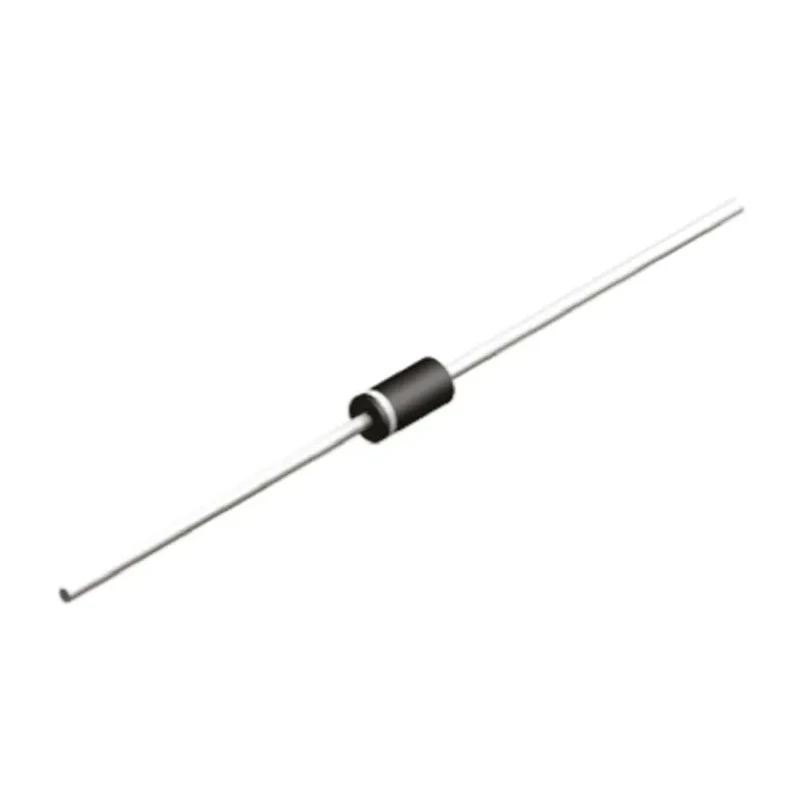

onsemi 1.27 V Zener Diode Single 1 W 5% Through Hole 2-Pin DO-41 1N4750ATR

The onsemi 1N4750ATR is a general-purpose single-element Zener diode with a nominal voltage of 27 V. It is designed for voltage regulation and reference applications in various electronic systems. This diode operates reliably with a maximum power dissipation rating of 1 W and comes in a compact through hole DO-41 package with two pins, allowing for easy PCB mounting and assembly.

Rated for operation over a wide temperature range from -65°C up to 200°C, the 1N4750ATR diode is suitable for use in industrial, laboratory, and consumer electronics where voltage stabilization is required. Its low maximum reverse leakage current of 5 microamperes reduces power loss and improves circuit efficiency.

The device exhibits a test current of 9.5 mA and a maximum Zener impedance of 35 ohms, ensuring stable voltage regulation within the specified tolerance of ±5%. The diode length is 5.2 mm and height is 2.72 mm, making it compact for dense circuit designs.

This diode series (1N47xx) is widely recognized for reliability and performance in discrete semiconductor applications such as power supply regulation, protection circuits, and voltage clipping.

This Zener diode is configured as a single-element device providing stable 27 V reference. Designed for through hole mounting in DO-41 package type. Capable of dissipating up to 1 watt of power safely. Wide operating temperature range makes it suitable for harsh environments.

Low leakage current enhances energy efficiency in sensitive circuits. General purpose Zener type enables use in multiple electronic applications. Robust package dimensions allow for reliable soldering and mechanical stability.

Tested at 9.5 mA providing consistent voltage regulation performance. Maximum Zener impedance of 35 ohms helps maintain voltage accuracy under varying loads. Compact 2-pin configuration eases integration into electronic designs.

Use the onsemi 1N4750ATR Zener Diode for industrial power supplies, consumer electronics, instrumentation, and other voltage stabilization needs. Available as new condition from trusted distributors, it meets standard specifications without automotive compliance requirements.
