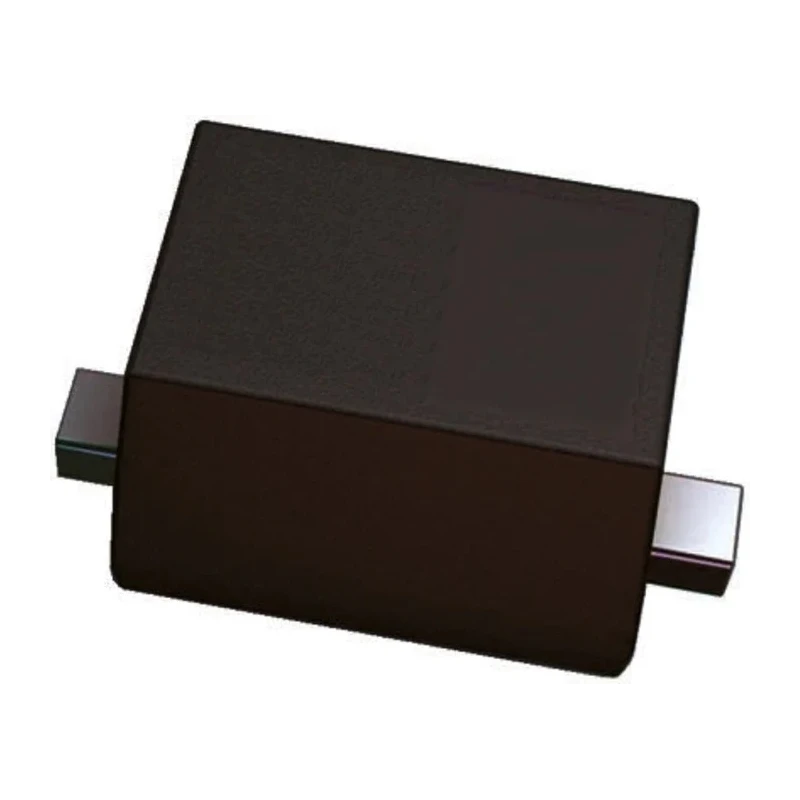

Nexperia 1-Element Uni-Directional TVS Diode 260 W, 2-Pin SOD-523 PESD5Z2.5,115

The Nexperia PESD5Z2.5,115 is a 1-element uni-directional transient voltage suppressor (TVS) diode designed to provide robust ESD protection for sensitive electronic circuits. Packaged in an ultra-small and flat lead SOD-523 surface mount device (SMD), this diode is ideal for compact and space-constrained electronic applications.

With a peak pulse power dissipation capacity of 260 W, it efficiently clamps transient voltage surges up to 15 volts, safeguarding components against damaging electrostatic discharge and transient events. Its maximum reverse stand-off voltage of 2.5 V and a minimum breakdown voltage of 4 V make it suitable for low voltage signal line protection.

The device operates reliably in harsh environments with operating temperatures ranging from -65°C to 150°C, and features a low maximum reverse leakage current of 6 µA, contributing to overall circuit efficiency. Its compliant design meets the stringent AEC-Q101 automotive qualification standard, ensuring dependable performance in automotive and industrial applications.

Physically, the diode measures 1.25 mm in length, 0.85 mm in width, and 0.65 mm in height, making it suitable for surface mount assembly on printed circuit boards with limited space. It has a 2-pin configuration and single element per chip, optimized for protecting individual signal lines against electrostatic discharges and voltage spikes.

This Nexperia PESD5Z2.5,115 TVS diode is widely applicable for diverse industrial, automotive, telecommunications, and consumer electronic applications requiring efficient transient voltage suppression and ESD protection.

Designed for unidirectional transient voltage suppression to protect sensitive electronic circuits. Operates within a temperature range of -65°C to 150°C for reliable performance. Compact SOD-523 package dimensions: 1.25 mm length, 0.85 mm width, and 0.65 mm height.

Clamping voltage of 15 V and maximum reverse stand-off voltage of 2.5 V. Low leakage current of 6 µA enhances efficiency and reduces power loss. Complies with AEC-Q101 automotive standard ensuring high reliability in automotive applications.

Single element configuration suitable for protecting one signal line from ESD and transient voltage spikes. Explore more Nexperia semiconductor solutions and related TVS Diodes on EnvMart for your electronic circuit protection needs.
