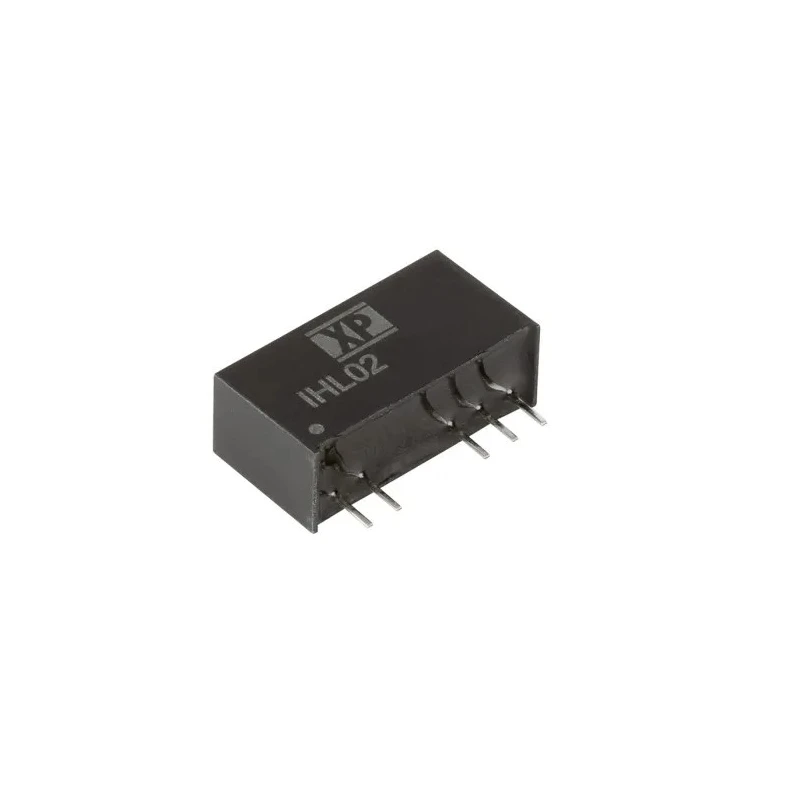

XP Power Isolated DC/DC Converter, 9 V DC Output, 220 mA Current, 16.5 V DC Max Input, 13.5 V Min Input, 2 W Power IHL02
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power IHL02 DC/DC Converter, 9V dc/ 220 mA, 16 |
| Brand | XP Power |
| Efficiency | 77% |
| Length | 19.5mm |
| Model | IHL02 |
| Depth | 10mm |
| Width | 7.2mm |
| Mount Type | Through Hole |
| Series | IHL02 |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 3300000h |
| Number of outputs | 1 |
| Maximum Output Power | 2W |
| Maximum Input Voltage | 16.5V dc |
| Minimum Input Voltage | 13.5V |
| Number of Pins | 7 |
| Output Voltage 1 | 9V dc |
| Output Current 1 | 220mA |
| Isolation Voltage | 5.2kV dc |
Key Features
- High isolation voltage of 5200 V DC enhances safety and reduces interference.
- Designed for reliability with MTBF rating of 3.3 million hours.
- Compact dimensions of 19.5 mm length, 7.2 mm width, and 10 mm depth.
- Operating temperature range from -40 °C to 85 °C suitable for harsh environments.
- Single output configuration for straightforward integration.
- Efficiency rating at 77% supports effective power management.
- Package type SIP7 with 7 pins facilitates through hole mounting.
- Ideal for applications requiring isolated power supply such as MOSFET and IGBT drives.
Product Description
XP Power IHL02 isolated DC/DC converter model offers a high-performance solution for converting DC voltages safely and reliably in industrial and commercial electronic applications. This converter provides a stable 9 V DC output at 220 mA current, powered by an input voltage range between 13.5 V and 16.5 V DC, enabling flexibility in power supply design.
Featuring a through hole SIP7 package with seven pins, the device ensures easy mounting and integration on printed circuit boards. Its compact size with dimensions 19.5 mm (length) by 7.2 mm (width) by 10 mm (depth) makes it suitable for space-constrained installations.
The IHL02 series demonstrates high isolation capabilities at 5200 V DC, protecting circuits from electrical interference and ensuring safety in sensitive equipment. With a mean time between failures (MTBF) of approximately 3.3 million hours, this converter offers long-term reliability.
Operating temperature range from -40 °C to 85 °C allows deployment in diverse environments, including industrial, laboratory, HVAC, manufacturing, and telecommunications sectors. The converter's efficiency of 77% contributes to energy savings and reduces heat generation during operation.
High isolation voltage of 5200 V DC reduces electrical noise and improves system resilience. Single output design simplifies power supply configuration. Through hole SIP7 package supports robust electrical connections and mechanical stability.
Wide temperature capability enables use in harsh operational conditions. Efficient power conversion optimizes overall system performance. Ideal for MOSFET and IGBT drive circuitry requiring isolated voltage supplies.
Manufactured in Taiwan, the XP Power IHL02 converter aligns with stringent quality and safety standards. Suitable for upgrading existing designs or creating new power supply systems, this component is a reliable choice for engineers requiring isolated DC/DC conversion with proven durability and performance.
Explore our extensive range of DC/DC Converters and power supply solutions at EnvMart to find components tailored to your applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The IHL02 model provides a stable output of 9 V DC at a current of 220 mA.
This converter operates with an input voltage range between 13.5 V and 16.5 V DC.
The IHL02 features a high isolation voltage of 5200 V DC, enhancing safety and reducing electrical interference.
The dimensions of the IHL02 are 19.5 mm in length, 7.2 mm in width, and 10 mm in depth.
The efficiency rating of the IHL02 is 77%, supporting effective power management.
This model can operate within a temperature range of -40 °C to 85 °C, making it suitable for harsh environments.
The IHL02 has a single output configuration, simplifying integration into power supply designs.
The MTBF for the IHL02 is approximately 3.3 million hours, indicating long-term reliability.
This model uses a through hole SIP7 package type for mounting, which facilitates easy integration onto printed circuit boards.
The XP Power IHL02 is manufactured in Taiwan.
This converter is ideal for applications requiring isolated power supplies, such as MOSFET and IGBT drives.
The maximum output power of this converter is 2 W.
