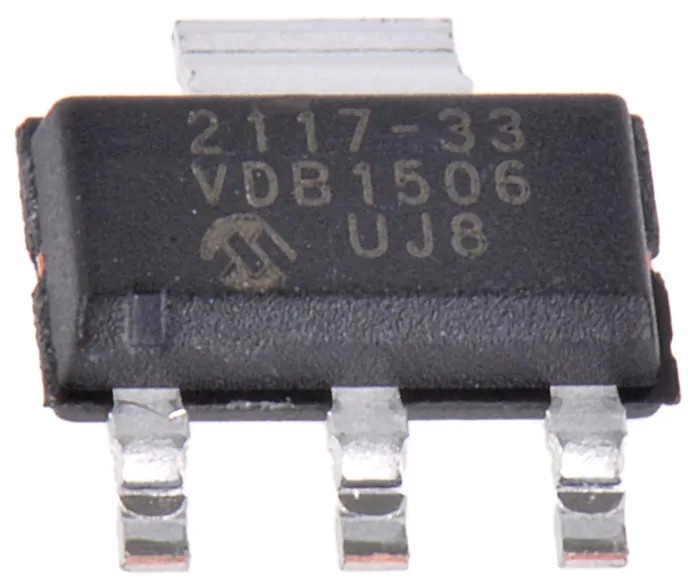

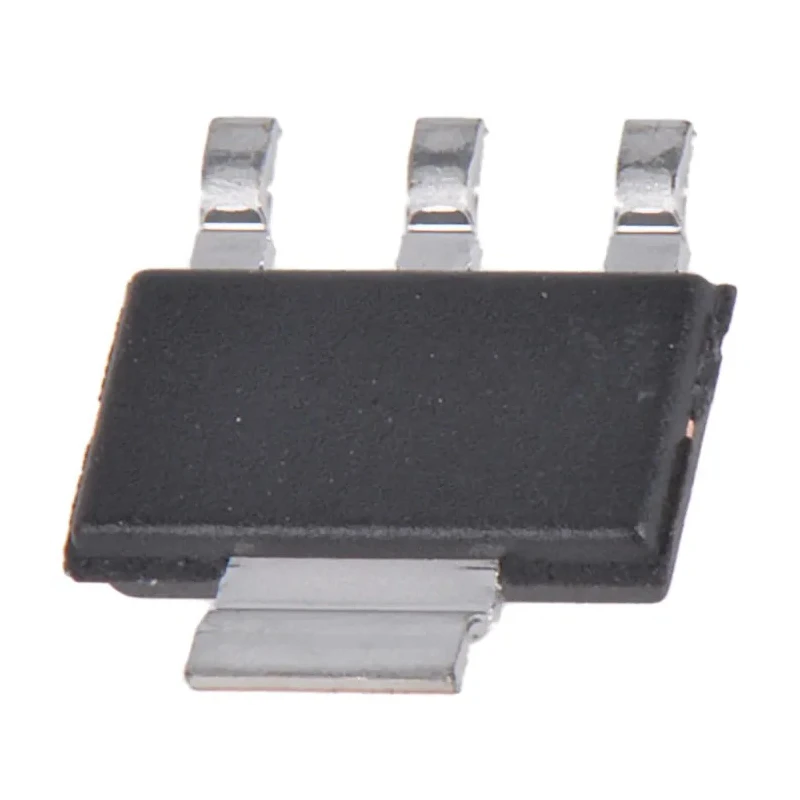

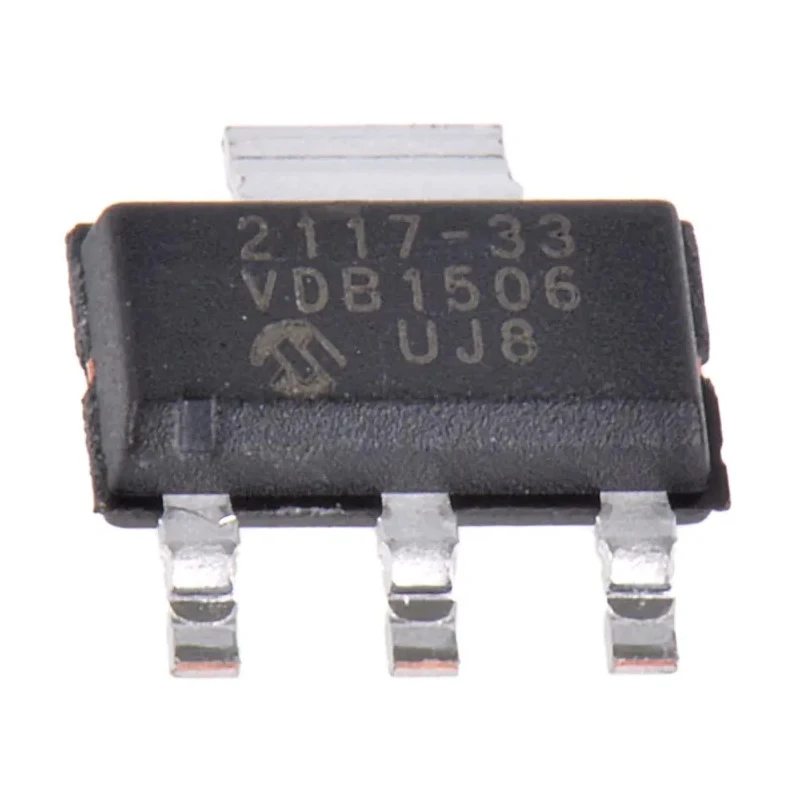

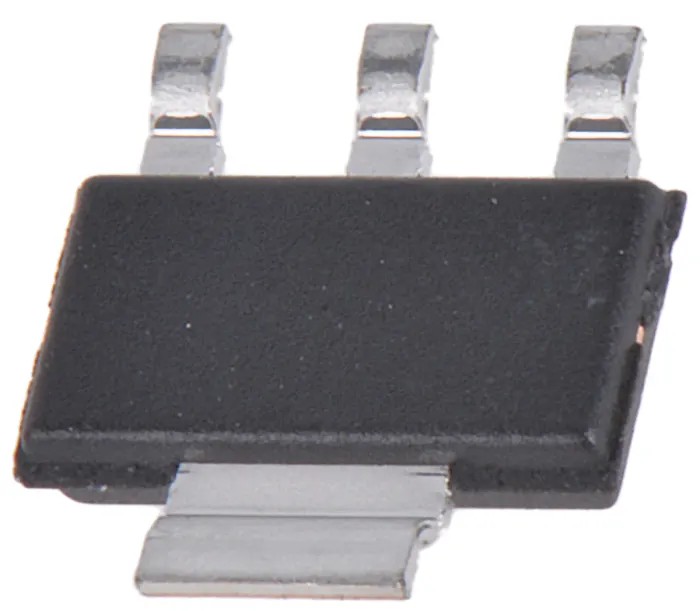

Microchip 1-Channel Low Dropout Voltage Regulator, Fixed Output 3.3V, 800 mA, SOT-223 4-Pin TC2117-3.3VDBTR
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.7mm |
| Length | 6.7mm |
| Model | TC2117 |
| Width | 3.7mm |
| Mount Type | Surface |
| Output type | Fixed |
| Output Current | 800mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-223 |
| Load Regulation | 0 %/mA |
| Minimum Operating Temperature | -40°C |
| Polarity | Positive |
| Regulator Type | Low Dropout Voltage |
| Number of outputs | 1 |
| Maximum Input Voltage | 6V |
| Output Voltage | 3.3V |
| Line Regulation | 0.35 % |
| Minimum Input Voltage | 2.7V |
| Pin Count | 4 |
Key Features
- Provides a stable 3.3V output suitable for a wide range of electronic applications.
- Supports a maximum output current capacity of 800 milliamps.
- Low dropout voltage improves efficiency in power-sensitive devices.
- Surface mount SOT-223 package with 4 pins for easy PCB integration.
- Operates reliably within a temperature range of -40°C to 125°C.
- Designed for positive polarity supply voltage applications.
- Input voltage operating range from 2.7V to 6V allows flexible power input.
- Line regulation of 0.35% ensures output voltage stability under varying input voltage.
Product Description
Microchip TC2117-3.3VDBTR is a high-performance, 1-channel low dropout (LDO) voltage regulator designed for efficient power management in electronic circuits. It delivers a fixed 3.3V output voltage with a maximum output current of 800 mA, making it ideal for stabilizing voltage supply in embedded systems, consumer electronics, and industrial equipment.
This device features a low dropout voltage which improves efficiency, particularly in battery-powered applications, by allowing operation closer to the supply voltage. Its surface-mount SOT-223 4-pin package provides a compact footprint, facilitating easy integration onto printed circuit boards for space-constrained designs.
Operating over a wide temperature range from -40°C to 125°C, the TC2117-3.3VDBTR offers reliable performance in various environmental conditions. It supports positive polarity input voltages ranging from 2.7V to 6V, making it versatile for a broad spectrum of power sources.
The regulator exhibits excellent line regulation at 0.35%, maintaining stable output voltage despite fluctuations in input voltage, and zero load regulation percentage, ensuring consistent voltage regardless of output load changes. As a fixed output linear regulator, it produces minimal electrical noise compared to switching types, ideal for noise-sensitive applications.
Stable 3.3V fixed output voltage. 800 mA maximum output current capacity. Low dropout voltage operation enhances efficiency. Compact surface-mount SOT-223 4-pin package. Wide operating temperature from -40°C to 125°C. Positive polarity input voltage range from 2.7V to 6V.
0.35% line regulation for output stability. 0 %/mA load regulation ensuring consistent voltage delivery. Non-switching linear design for low noise output.
These voltage regulators are widely used in applications like power management ICs for industrial instrumentation, telecommunications, consumer electronics, and automotive electronics, offering dependable voltage control to critical circuit components.
Discover premium quality Voltage Regulators and a wide array of power management components to enhance your electronic designs with reliability and performance at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a fixed output voltage of 3.3V.
It supports a maximum output current capacity of 800 milliamps.
The input voltage operating range is from 2.7V to 6V.
It exhibits a line regulation of 0.35%, ensuring stable output voltage under varying input conditions.
The dimensions of the SOT-223 package are 6.7mm in length, 3.7mm in width, and 1.7mm in height.
It operates reliably within a temperature range of -40°C to 125°C.
It has a load regulation of 0 %/mA, ensuring consistent voltage delivery regardless of output load changes.
The package type is SOT-223, which is a surface mount design.
It is designed for positive polarity supply voltage applications.
The low dropout voltage improves efficiency, allowing operation closer to the supply voltage, particularly beneficial in battery-powered applications.
This voltage regulator is suitable for applications in embedded systems, consumer electronics, industrial equipment, and telecommunications.
The model number is TC2117.
