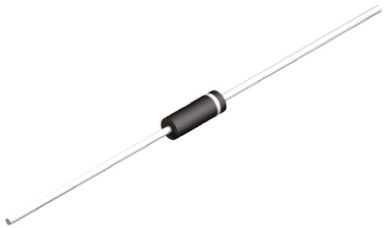

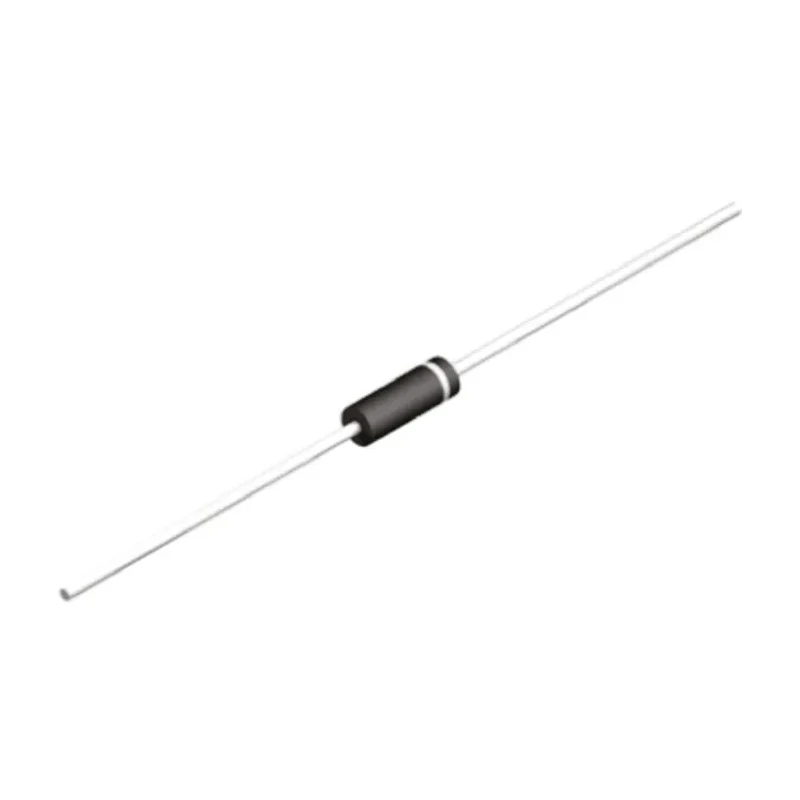

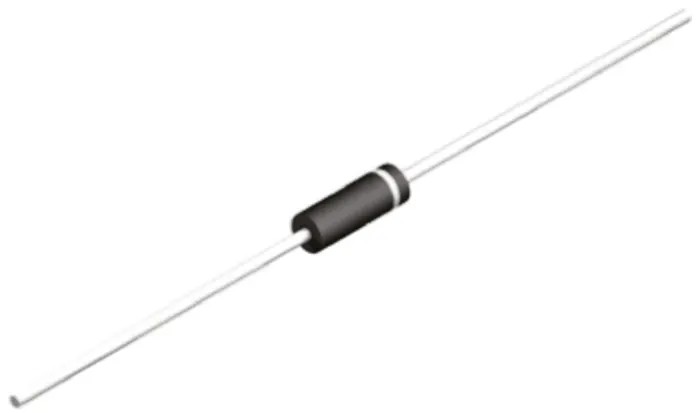

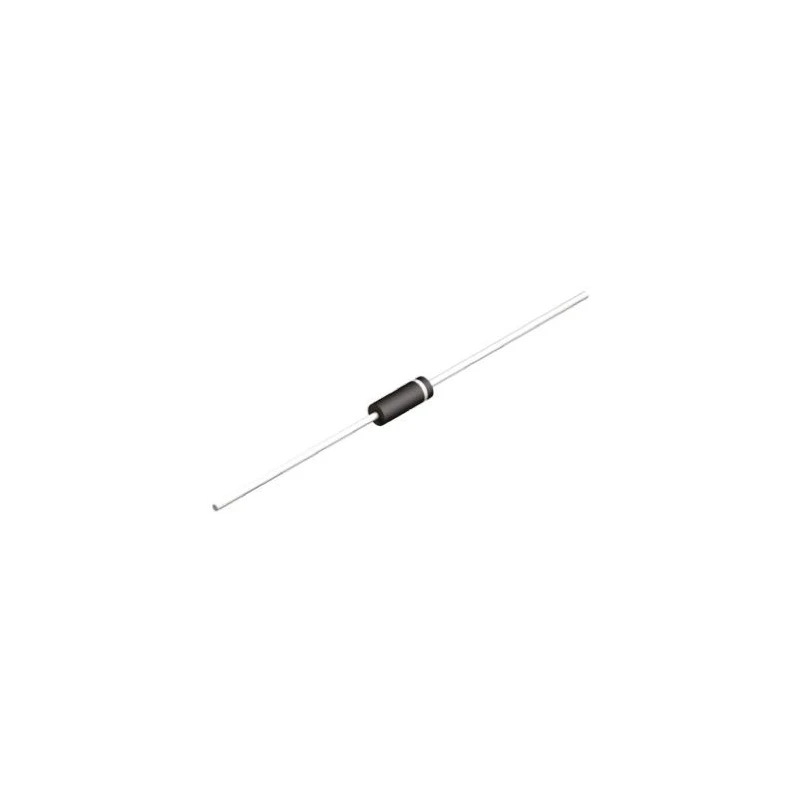

onsemi Zener Diode Single 160 V 5 W Through Hole 2-Pin DO-15 1N5384BRLG
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 3.68mm |
| Length | 8.89mm |
| Model | 1N5384BRLG |
| Mount Type | Through Hole |
| Series | 1N53 |
| Maximum Operating Temperature | 200°C |
| Package Type | DO-15 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 5W |
| Diode Configuration | Single |
| Test Current It | 8mA |
| Maximum Reverse Leakage Current | 500nA |
| Nominal Zener Voltage Vz | 160V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 350Ω |
Key Features
- The diode has a nominal Zener voltage of 160 Volts with a ±5% tolerance.
- It supports a maximum power dissipation of 5 Watts for reliable operation.
- Constructed in a DO-15 through-hole package with 2 pins for easy mounting.
- Maximum Zener impedance of 350 ohms ensures efficient voltage regulation.
- Operating temperature range spans from -65°C to 200°C for harsh environments.
- Maximum reverse leakage current is 500 nanoamperes, minimizing power loss.
- Test current for Zener action is specified at 8 milliamperes.
- Single element per chip, suitable for discrete semiconductor applications.
Product Description
onsemi 1N5384BRLG Zener Diode Single 160 V 5 W Through Hole 2-Pin DO-15 is a robust semiconductor component designed to provide precise voltage regulation in electronic circuits. It features a nominal Zener voltage of 160 V with a tolerance of ±5%, making it suitable for a wide range of industrial and commercial voltage regulation applications.
This diode supports a maximum power dissipation of 5 Watts, allowing reliable operation under significant thermal load. The DO-15 package enables through-hole mounting with a compact length of 8.89 mm and height of 3.68 mm. The diode's 2-pin configuration simplifies integration onto printed circuit boards.
The maximum Zener impedance of 350 ohms ensures efficient voltage regulation with minimal fluctuation. It is designed to operate over a wide temperature range from -65°C up to 200°C, making it suitable for demanding industrial, automotive, and electronic manufacturing environments. The device limits maximum reverse leakage current to 500 nanoamperes, thus minimizing power dissipation during off states.
Testing at a test current of 8 mA validates its stable Zener action. Featuring a single element per chip, this diode fits applications requiring a discrete semiconductor voltage regulator with tight operating characteristics.
The diode has a nominal Zener voltage of 160 Volts with a ±5% tolerance. Maximum power dissipation rated at 5 Watts for durability. Compact DO-15 through-hole package with 2-pin mounting configuration. Maximum Zener impedance of 350 ohms for effective regulation.
Broad operating temperature range from -65°C to 200°C. Minimal reverse leakage current of 500 nA reduces power loss. Tested for stable operation at 8 mA test current. Single element per chip in the 1N53 series from onsemi.
This Zener diode is ideal for electronic circuit protection, voltage regulation in power supplies, automotive electronics, manufacturing, and laboratory test equipment requiring stable voltage references. As part of the 1N53 series, it provides reliable performance with proven quality from onsemi.
Explore more semiconductor components and voltage regulation devices in EnvMart to complement your electronic design and manufacturing projects.
Explore more products in our Zener Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal Zener voltage of this diode is 160 Volts with a tolerance of ±5%.
This model supports a maximum power dissipation of 5 Watts, allowing reliable operation under significant thermal load.
The maximum Zener impedance is 350 ohms, ensuring efficient voltage regulation.
The dimensions of the DO-15 package are a length of 8.89 mm and a height of 3.68 mm.
It operates over a wide temperature range from -65°C to 200°C, making it suitable for harsh environments.
The maximum reverse leakage current is limited to 500 nanoamperes, minimizing power loss during off states.
The test current for Zener action is specified at 8 milliamperes.
This diode features a single element per chip, suitable for discrete semiconductor applications.
It is designed for through-hole mounting with a 2-pin configuration, facilitating integration onto printed circuit boards.
This diode is part of the 1N53 series, which is known for providing reliable voltage regulation.
It is suitable for electronic circuit protection, voltage regulation in power supplies, and automotive electronics, among other applications.
The country of origin for this diode is India.
