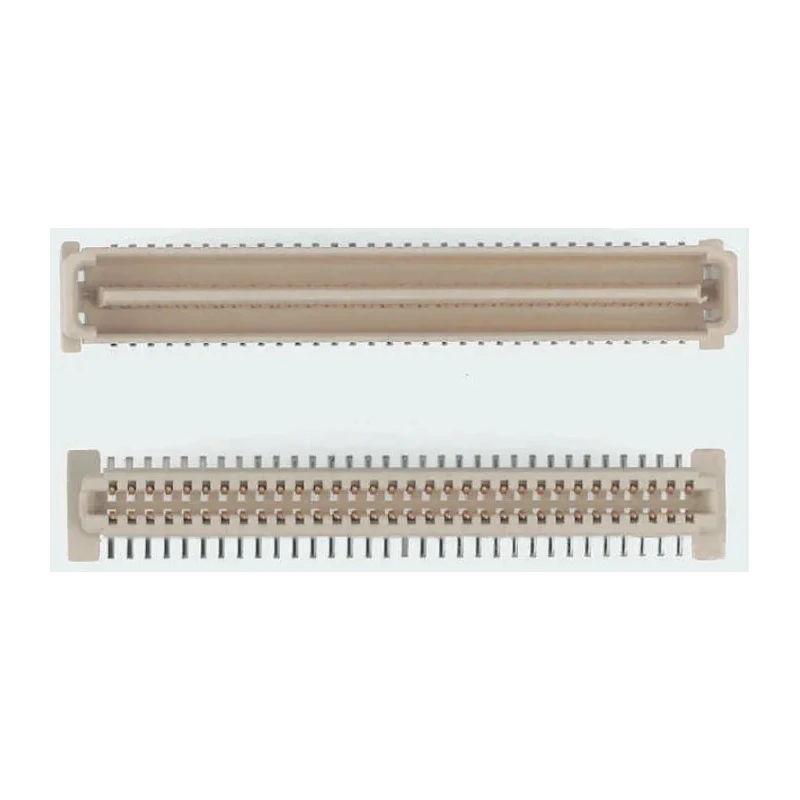

Molex PMC Mezzanine Series Straight Surface PCB Socket 64-Contact 2 Row 1 mm Pitch Solder 71439-0464

Free Delivery in India | Lowest Global Shipping Charges

Molex PMC Mezzanine Series Straight Surface PCB Socket 64-Contact 2 Row 1 mm Pitch Solder 71439-0464

Name: Molex PMC Mezzanine Series Straight Surface PCB Socket 64-Contact 2 Row 1 mm Pitch Solder 71439-0464
Brand: Molex
SKU: 106551
Price: 6.23 USD
Availability: InStock



Category PCB Sockets Brand Molex Condition New

Specifications

Country of Origin	United States
Voltage	100V
Brand	Molex
Orientation	Straight
Current	12A
Mount Type	Surface
Housing Material	Thermoplastic
Contact Material	Bronze
Series	PMC Mezzanine
Termination Type	Solder
Maximum Operating Temperature	85°C
Sub Type	Board-to-Board
Minimum Operating Temperature	-55°C
Interfaces	LAN, WAN, telecommunication, PC and workstation applications
Number of Rows	2
Pitch	1mm
Contact Plating	Gold
Number of Contacts	64
Contact Gender	Female
Connector System	Signal, Board-to-Board
Row Pitch	1.4mm
Mated heights	8 → 15mm (see combination guide)

Key Features

Designed for vertical stacking SMT headers and sockets in dual row configurations.
Features 64 female contacts with 1 mm pitch and 1.4 mm row pitch.
High current rating of 12A and voltage rating of 100V ensures reliable performance.
Constructed with thermoplastic housing and bronze contacts plated with gold for durability.
Suitable for PCI and S-bus mezzanine cards to connect with VMEbus and Multibus host boards.
Supports LAN, WAN, telecommunication, PC, and workstation applications effectively.
Incorporates a shrouded leaf design minimizing header contact damage and offering low insertion force.
High-temperature liquid crystal polymer (LCP) housing withstands reflow solder processes.

Product Description

Molex 71439-0464 PMC Mezzanine Series Straight Surface PCB Socket is a high-quality board-to-board connector designed for vertical stacking SMT applications. This 64-contact, 2-row socket offers a 1 mm pitch and solder termination suitable for industrial and electronic assembly.

The socket ensures reliable connectivity for mezzanine IEEE 1386 receptacles, effectively accommodating PCI and S-bus mezzanine cards for VMEbus and Multibus systems. The thermoplastic housing provides excellent durability and is designed for surface mount technology (SMT) assembly. Bronze contacts plated with gold deliver superior conductivity and corrosion resistance.

Designed with a shrouded leaf configuration, the socket minimizes damage to header contacts while maintaining low insertion force for ease of assembly and maintenance. The connector supports a current rating of 12A and a voltage rating of 100V, making it suitable for demanding LAN, WAN, telecommunication, PC, and workstation environments.

The socket operates reliably in temperature ranges from -55°C to 85°C and features a high-temperature LCP housing compatible with reflow solder processes. It offers mated heights from 8 mm to 15 mm depending on application needs, as referenced in the combination guide. This component is an ideal choice for precise, durable electronic interconnections in industrial, manufacturing, and telecommunications settings.

Designed for vertical stacking SMT headers and sockets in dual row configurations. Features 64 female contacts with 1 mm pitch and 1.4 mm row pitch. High current rating of 12A and voltage rating of 100V ensures reliable performance.

Constructed with thermoplastic housing and bronze contacts plated with gold for durability. Suitable for PCI and S-bus mezzanine cards to connect with VMEbus and Multibus host boards. Supports LAN, WAN, telecommunication, PC, and workstation applications effectively.

Incorporates a shrouded leaf design minimizing header contact damage and offering low insertion force. High-temperature liquid crystal polymer (LCP) housing withstands reflow solder processes. Contact operating temperature ranges from -55°C to 85°C.

Mated heights vary from 8 mm to 15 mm as per combination guide. Explore more in the Electronics Components category at EnvMart for quality PCB Sockets and connectors.
