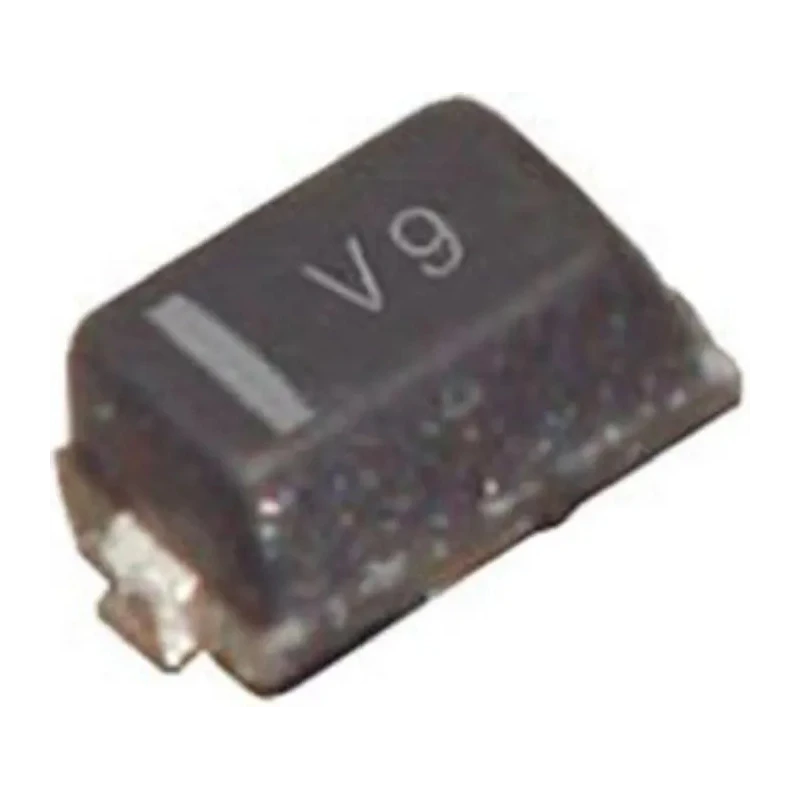

onsemi 30 V 100 mA Schottky Diode 2-Pin SOD-923 NSR0130P2T5G

onsemi NSR0130P2T5G is a Schottky Barrier Diode designed for effective low voltage and high-frequency rectification applications. This 2-pin diode housed in a compact SOD-923 surface mount package uses a barrier metal to minimize forward voltage drop and reverse current, enabling efficient electrical performance in constrained spaces.

This diode supports a maximum continuous forward current of 100 mA and a peak reverse repetitive voltage of 30 V. It features a maximum forward voltage of 525 mV and a peak reverse current as low as 3 μA to reduce power loss and enhance reliability.

Operable in extreme temperature ranges from -55°C to 125°C, the NSR0130P2T5G ensures stable performance in industrial, automotive, and electronic circuit applications. Its lightweight epoxy moulded case (approx. 11.7 mg) combined with stress protection makes it ideal for automated PCB assembly, where size and weight savings are critical.

The diode package dimensions are 0.85 mm in length, 0.65 mm in width, and 0.43 mm in height. It is Pb-free and complies with common environmental standards, enhancing sustainability in manufacturing.

This Schottky diode is typically used for high-frequency rectification, polarity protection, and freewheeling purposes across Semiconductor and Electronics industries. It is well suited for industrial automation, power supplies, and compact electronic devices.

The product features a surface mount SOD-923 package for streamlined assembly processes. Designed for compact circuits requiring low forward voltage drop and minimal reverse leakage. Suitable for high-frequency signal rectification and polarity protection in electronic equipment.

Low weight and stress-protection make it practical for use in automated production environments. The device is free from lead (Pb), ensuring compliance with environmental regulations. Operates reliably across a wide temperature range, making it viable for harsh industrial conditions.

Measures 0.85 mm x 0.65 mm x 0.43 mm, supporting space-saving PCB layouts. Explore more onsemi Schottky Diodes & Rectifiers on EnvMart for robust semiconductor solutions tailored to modern electronics and industrial applications.
