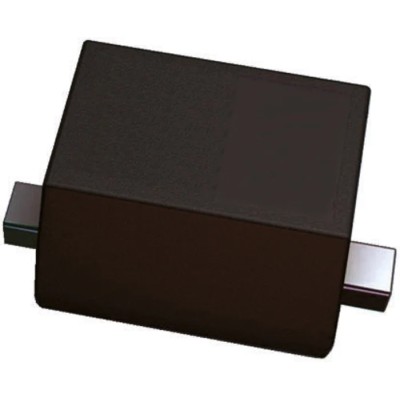

Nexperia Schottky Diode 20 V 500 mA Surface Mount 2-Pin I-IGIA Package PMEG2005EB,115

Free Delivery in India | Lowest Global Shipping Charges

Nexperia Schottky Diode 20 V 500 mA Surface Mount 2-Pin I-IGIA Package PMEG2005EB,115

Name: Nexperia Schottky Diode 20 V 500 mA Surface Mount 2-Pin I-IGIA Package PMEG2005EB,115
Brand: Nexperia
SKU: 121060
Price: 0.09 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand Nexperia Condition New

Specifications

Country of Origin	China
Brand	Nexperia
Height	0.65mm
Length	1.25mm
Model	PMEG2005EB,115
Width	0.85mm
Mount Type	Surface
Series	PMEG2005EB
Maximum Operating Temperature	125°C
Package Type	I-IGIA
Minimum Operating Temperature	-65°C
Pin Count	2
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	500mA
Peak Reverse Repetitive Voltage Vrrm	20V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	30μA
Peak Non-Repetitive Forward Surge Current Ifsm	6A
Maximum Forward Voltage Vf	480mV

Key Features

The diode supports a maximum continuous forward current of 500 mA.
It features a peak repetitive reverse voltage of 20 V and peak forward surge current of 6 A.
Optimized for low forward voltage drop of 480 mV and high junction temperature up to 125°C.
Its ultra-small, low-profile package reduces space on circuit boards.
Low leakage current and low capacitance enhance switching performance.
Designed with automotive standard AEC-Q101 qualification for reliability.
Operating temperature ranges from -65°C to 125°C, suitable for harsh environments.
Package dimensions include length 1.25 mm, width 0.85 mm, height 0.65 mm.

Product Description

Nexperia PMEG2005EB,115 Schottky Diode is a high-efficiency single diode designed for surface-mount applications requiring low forward voltage drop and high reliability up to 125°C junction temperature.

This device features a 20 V peak repetitive reverse voltage and can continuously conduct forward current up to 500 mA. It supports peak non-repetitive forward surge current of 6 A, making it suitable for transient load conditions.

The ultra-small 2-pin I-IGIA package minimizes PCB space usage while maintaining robust performance characteristics. Its ultra-low leakage current and low capacitance reduce power losses and improve switching speed, which is critical in power conversion and protection circuits.

Qualification to the automotive AEC-Q101 standard ensures suitability for automotive and other demanding industrial environments. The diode operates reliably across a wide temperature range from -65°C to 125°C, making it ideal for harsh ambient conditions.

Common industrial applications include power management in electronic components, power supplies, automotive electronics, and industrial control systems where efficient and reliable diode operation is essential.

The diode supports a maximum continuous forward current of 500 mA. It features a peak repetitive reverse voltage of 20 V and peak forward surge current of 6 A. Optimized for low forward voltage drop of 480 mV and high junction temperature up to 125°C.

Its ultra-small, low-profile package reduces space on circuit boards. Low leakage current and low capacitance enhance switching performance. Designed with automotive standard AEC-Q101 qualification for reliability. Operating temperature ranges from -65°C to 125°C, suitable for harsh environments.

Package dimensions include length 1.25 mm, width 0.85 mm, height 0.65 mm.

This product is ideal for electronics assembly in industrial, automotive, manufacturing, and electronics design applications. EnvMart offers this Nexperia Schottky diode for efficient power management and protection circuitry.
