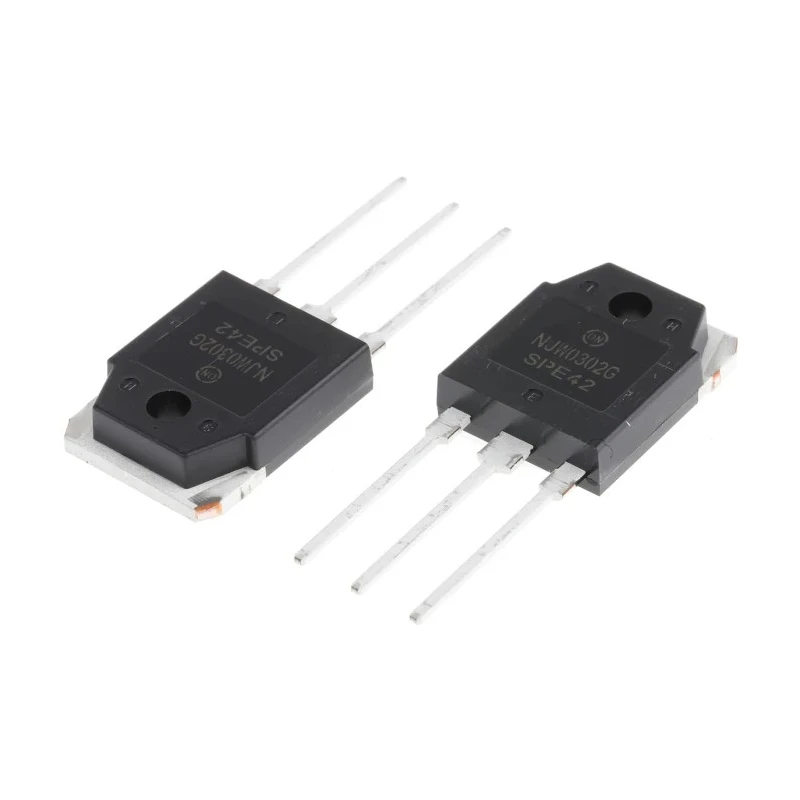

onsemi PNP Transistor 15 A, 250 V, 150 W Power Dissipation, TO-3P Package NJW0302G

onsemi NJW0302G is a new, high performance PNP bipolar power transistor designed for industrial and audio amplifier applications. It supports a maximum DC collector current of 15 A and a maximum collector emitter voltage of 250 V, making it suitable for use in high power linear circuits and audio output stages.

This transistor provides a maximum power dissipation rating of 150 watts, enabling reliable operation under high load conditions. Its robust TO-3P package ensures durable through-hole mounting suitable for demanding environments.

With a high DC current gain (minimum 75) and good gain linearity, the NJW0302G offers excellent amplification characteristics with low distortion, ideal for high fidelity audio amplifiers. The device operates efficiently across a wide temperature range from -65°C to 150°C, ensuring durability under varying industrial conditions.

The NJW0302G transistor is characterized by a maximum transition frequency of 1 MHz, making it suitable for general audio frequency amplification and other linear electronic applications.

Key mechanical dimensions are compact, with a height of 40.3 mm, a length of 15.8 mm, and a width of 5 mm. It has a 3-pin configuration and a PNP transistor polarity. High safe operating area provides reliable continuous performance.

Compact TO-3P housing supports easy mounting. Applications include audio amplification, power regulation, and linear electronic circuits. Industrial, laboratory, and commercial amplifier designs benefit from its performance.

Suitable for demanding environments requiring high power bipolar transistors. This product is part of a range of PNP power transistors from onsemi designed for quality and reliability in power electronics. Explore more products in the Bipolar Transistors category at EnvMart for a broad selection of power transistors and related semiconductor components.
