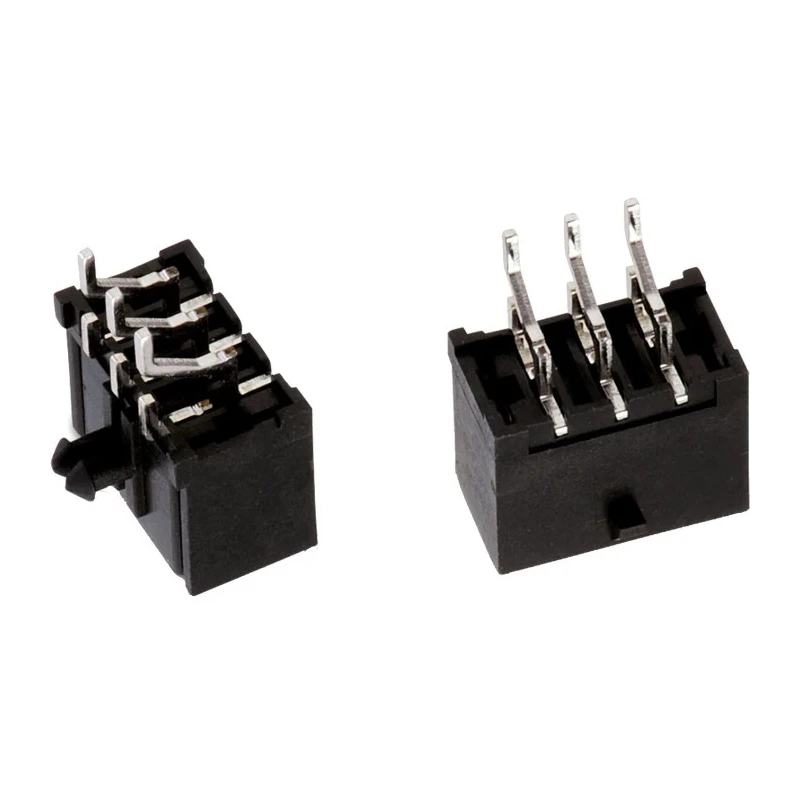

Wurth Elektronik WR-MPC3 Series Right Angle Through Hole PCB Header, 2 Contact(s), 3 mm Pitch, 2 Row, Shrouded MPC3
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 250V |
| Brand | Wurth Elektronik |
| Orientation | Right Angle |
| Current | 5A |
| Model | MPC3 |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Copper Alloy |
| Series | WR-MPC3 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 3mm |
| Contact Plating | Tin |
| Number of Contacts | 2 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Constructed with high-quality liquid crystal polymer housing for durability.
- Features 2 rows and a shrouded design for secure mating.
- Rated for 5A current and 250V voltage for robust electrical performance.
- Contacts made from copper alloy with tin plating ensure corrosion resistance.
- Designed for right angle orientation with solder termination type.
- Operates effectively between -40°C to 105°C temperature range.
- Male contact gender suitable for wire-to-board connector system applications.
- Through hole mount type ensures strong mechanical stability on PCB.
Product Description
Wurth Elektronik MPC3 is a series of right angle through hole PCB headers designed for wire-to-board connector applications. This model features a durable liquid crystal polymer housing with a black color and provides a secure connection with 2 contacts arranged in 2 rows at 3 mm pitch spacing.
The contacts are made from copper alloy and plated with tin to ensure good conductivity and corrosion resistance. Rated for a maximum current of 5A and voltage of 250V, this connector operates reliably in temperatures ranging from -40°C to 105°C.
Its shrouded design provides additional protection for the contacts, enhancing connector safety during handling and mounting. The right angle orientation helps in space-saving PCB layouts while maintaining optimal electrical performance. The connector uses a solder termination type and is designed as a male contact gender component, compatible with standard wire-to-board connection systems.
This component is particularly suited for industrial electronics, embedded system boards, telecommunications, and power distribution applications where reliable PCB connections are critical. It is manufactured in Taiwan, Province Of China, following stringent quality controls.
Constructed with liquid crystal polymer housing for durability and thermal resistance. Two rows and shrouded configuration increase connection security and protection. Copper alloy contacts with tin plating ensure longevity and reliable conductivity.
Rated for 5A current and 250V voltage suitable for various electrical applications. Right angle orientation facilitates compact PCB layouts and efficient wire routing. Designed for solder termination providing strong mechanical bond on PCB.
Operational temperature range ensures performance in harsh industrial environments. Male contact gender matches wire-to-board connector system standards. Manufactured in Taiwan assuring consistent quality and performance.
Explore more PCB Header options and related electronic components on EnvMart's comprehensive catalog. Whether for industrial, telecommunications, or embedded system designs, find the right connectors optimized for your technical requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a maximum current of 5A, making it suitable for various electrical applications.
The voltage rating for this PCB header is 250V, ensuring robust electrical performance in applications.
It operates effectively within a temperature range of -40°C to 105°C, allowing it to function in harsh environments.
The housing is made from liquid crystal polymer, while the contacts are constructed from copper alloy with tin plating for corrosion resistance.
This model features 2 contacts arranged in 2 rows, providing a compact connection solution.
It uses a solder termination type, ensuring a strong mechanical bond on the PCB.
The contacts are arranged at a pitch of 3 mm, which is standard for many PCB applications.
This model is designed with a right angle orientation, which helps in saving space on the PCB.
The contact gender is male, making it suitable for wire-to-board connector systems.
It is manufactured in Taiwan, ensuring consistent quality and performance.
The shrouded design provides additional protection for the contacts, enhancing safety during handling and mounting.
It is particularly suited for industrial electronics, embedded system boards, telecommunications, and power distribution applications.
