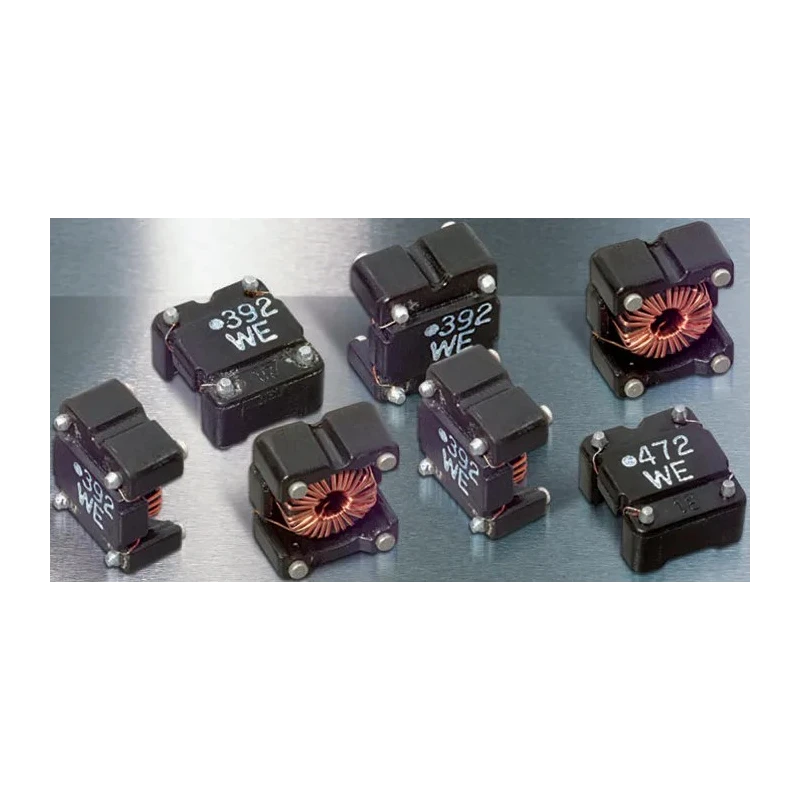

Wurth Elektronik WE-SL5 Surface Mount Common Mode Line Filter with Ferrite Core 220 μH Sectional Winding ±40% 2.2 A 744272221

Wurth Elektronik 744272221 Surface Mount Common Mode Line Filter features a ferrite core with 220 μH inductance and a sectional winding construction offering ±40% tolerance. Rated for a maximum DC current of 2.2 A, it is optimal for effective EMI noise suppression in electronic circuits.

This 4-pin surface mount device measures 10 mm in length, 6.5 mm in height, and 8.7 mm in depth, making it suitable for compact PCB designs. The component supports a wide operating temperature range from -40°C to 125°C, ensuring reliability in automotive and industrial environments.

Its tape and reel packaging facilitates automated assembly processes, enhancing manufacturing efficiency. The ferrite core material contributes to high impedance up to 13 kΩ, making it effective for filtering noise from power and data lines such as CAN, USB, and Firewire interfaces.

Designed to meet the automotive AEC-Q200 standard and UL-94 V-0 flame retardancy, this common mode line filter complies with international safety and environmental regulations including RoHS. Its low DC resistance of 32 mΩ minimizes power loss and heat generation during operation.

Applications include industrial electronics, automotive electronics, communication devices, and power supplies, where EMI reduction and signal integrity are critical. Wurth Elektronik's quality ensures robustness and longevity in demanding conditions.

Features a sectional winding with ±40% inductance tolerance. Comes in a 4-pin surface mount package suitable for PCB assembly. Supports a maximum operating temperature of 125°C and minimum of -40°C. Packaging is tape and reel for efficient production insertion.

Core material is ferrite ensuring effective noise suppression. Meets automotive standard AEC-Q200 for reliable performance. Maximum DC resistance is 32 mΩ to minimize power loss. Maximum self-resonant frequency is 100 kHz, ideal for EMI filtering.

Applicable for data and power line noise suppression including USB, CAN, and Firewire interfaces. UL-94 V-0 and RoHS compliant housing for safety and environmental standards. Explore more high-quality electronic components like Surface Mount Inductors and filters in the Electronics Components category at EnvMart.
