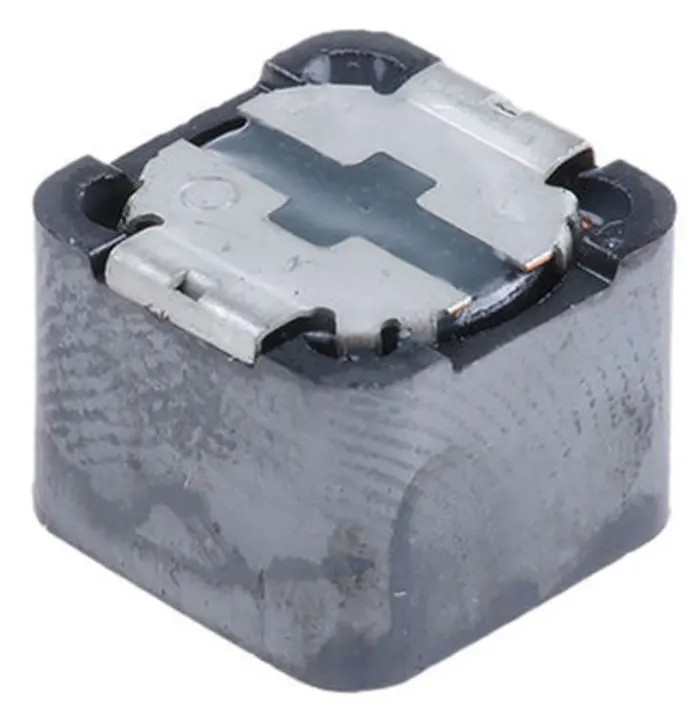

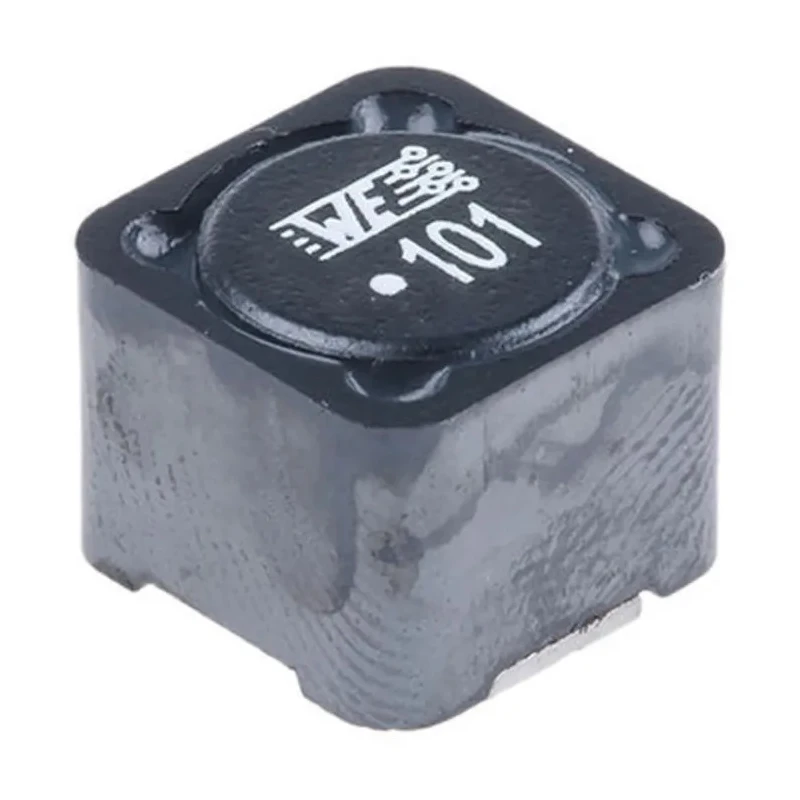

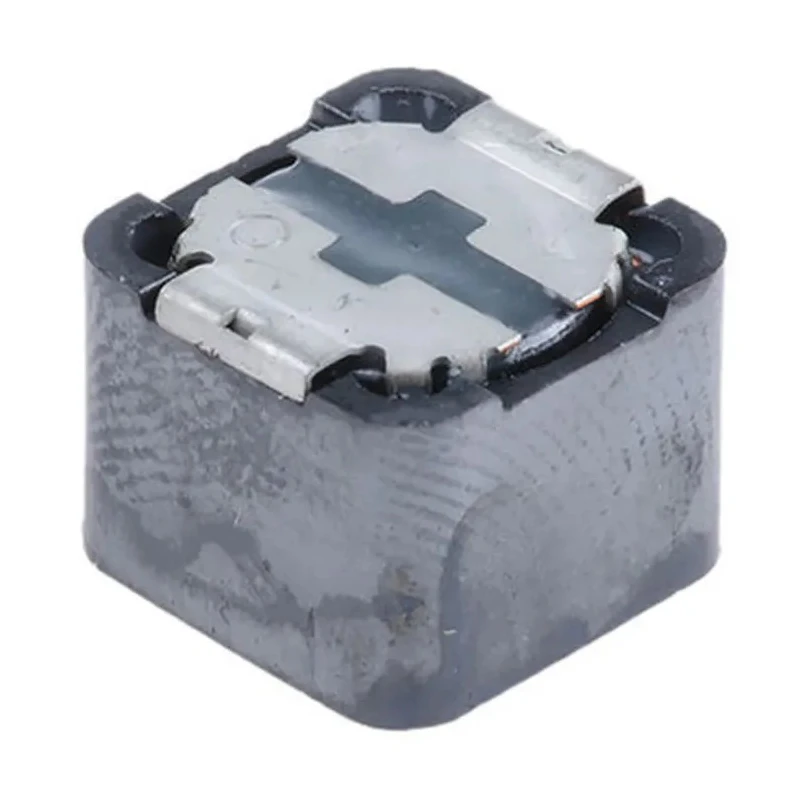

Wurth Elektronik 1210 Shielded Wirewound Surface Mount Inductor with Ferrite Core 100μH ±20% 2.5A IDC 7447709101
Specifications
| Country of Origin | India |
|---|---|
| Brand | Wurth Elektronik |
| Height | 10mm |
| Length | 12mm |
| Depth | 12mm |
| Packaging | Tape & Reel |
| Series | WE-PD |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 100μH |
| Standards/Approvals | RoHS, REACH, JEDEC JS709B, IEC 62024-2-2020 |
| Package/Case | 1210 |
| Maximum DC Current | 2.5A |
| Pin Count | 2 |
| Maximum DC Resistance | 110mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 4.3MHz |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
| Recommended solder profile | Reflow |
Key Features
- This 1210 package inductor features a ferrite core for efficient magnetic performance.
- Shielded wirewound construction minimizes electromagnetic interference.
- Designed to operate at temperatures from -40°C up to 125°C safely.
- Offers a maximum DC resistance of 110mΩ ensuring low power loss.
- RoHS and REACH compliant with automotive standard AEC-Q200 certification.
- Suitable for switching regulator applications and integrated DC/DC converters.
- Magnetically shielded version supports high current loading capability.
- Recommended reflow solder profile facilitates assembly on PCB manufacturing lines.
Product Description
Wurth Elektronik 7447709101 is a 1210 shielded wirewound surface mount inductor with a ferrite core, providing an inductance of 100μH with ±20% tolerance. It supports a maximum DC current of 2.5A, making it ideal for high current and switching regulator applications.
This inductor utilizes a magnetically shielded wirewound construction that significantly reduces leakage fields and electromagnetic interference, enhancing circuit reliability. It features a robust ferrite core and is moulded to ensure durability during operation.
The device is compliant with industry standards including RoHS, REACH, JEDEC JS709B, and IEC 62024-2-2020, and meets automotive standard AEC-Q200, assuring quality and suitability for automotive electronics.
With a compact 1210 package size measuring 12mm in length, 12mm in depth, and 10mm in height, it is suitable for surface mount technology (SMT) on PCBs. Its low DC resistance of 110mΩ minimizes power loss and supports efficient power management.
Operating temperature ranges from -40°C to 125°C, this inductor is engineered for demanding industrial and automotive environments. Recommended solder profile is reflow, enabling compatibility with standard PCB assembly processes.
Typical applications include switching regulators with low operating voltages, integrated DC/DC converters, and graphic cards requiring high efficiency (>86%) power inductors. The device enhances performance in industrial, automotive, manufacturing, and HVAC electronic systems.
This 1210 package inductor features a ferrite core for efficient magnetic performance. Shielded wirewound construction minimizes electromagnetic interference. Designed to operate at temperatures from -40°C up to 125°C safely.
Offers a maximum DC resistance of 110mΩ ensuring low power loss. RoHS and REACH compliant with automotive standard AEC-Q200 certification. Suitable for switching regulator applications and integrated DC/DC converters. Magnetically shielded version supports high current loading capability.
Recommended reflow solder profile facilitates assembly on PCB manufacturing lines. Explore the complete range of Surface Mount Inductors and power components available in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features an inductance value of 100μH with a tolerance of ±20%.
It supports a maximum DC current of 2.5A, making it suitable for high current applications.
The dimensions of this unit are 12mm in length, 12mm in depth, and 10mm in height.
The recommended solder profile for assembly is reflow, which is compatible with standard PCB manufacturing processes.
It is designed to operate safely within a temperature range of -40°C to 125°C.
The maximum DC resistance is 110mΩ, which helps minimize power loss during operation.
This inductor is compliant with RoHS, REACH, JEDEC JS709B, IEC 62024-2-2020, and meets automotive standard AEC-Q200.
It utilizes a ferrite core, which enhances its magnetic performance.
It is suitable for switching regulator applications and integrated DC/DC converters.
The shielded wirewound construction significantly reduces leakage fields and electromagnetic interference, enhancing circuit reliability.
It is packaged in tape and reel format, facilitating easy handling and assembly.
The maximum self-resonant frequency is 4.3MHz, making it suitable for various high-frequency applications.
