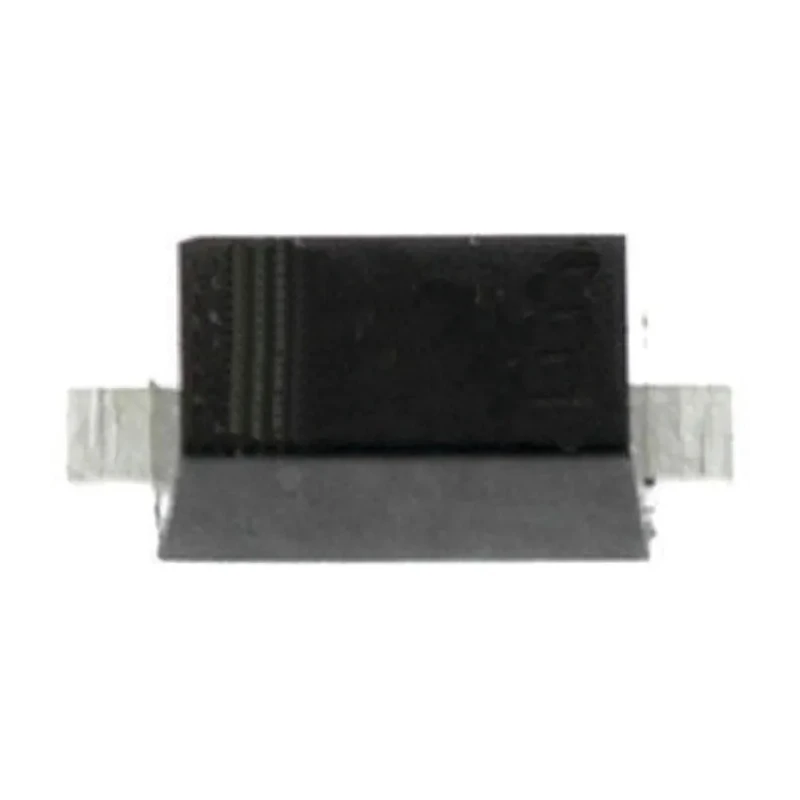

onsemi 100 V 1 A Surface Mount Schottky Switching Diode 2-Pin SOD-123 MBR1H100SFT3G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 0.9mm |
| Length | 2.9mm |
| Model | MBR1H100SFT3G |
| Width | 1.8mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 175°C |
| Package Type | SOD-123 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 40μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A |
| Maximum Forward Voltage Vf | 760mV |
| onsemi 60V 2A, Schottky Diode, 2-Pin SOD-123FL NRVTS260ESFGBrand | onsemi |
Key Features
- This diode features a single diode configuration optimized for switching applications.
- Maximum continuous forward current is rated at 1 ampere.
- Its peak repetitive reverse voltage is 100 volts ensuring effective blocking of reverse polarity.
- Maximum forward voltage drop is 760 millivolts for efficient energy conversion.
- Operates reliably within a temperature range of -65°C to 175°C.
- Peak non-repetitive forward surge current capacity up to 50 amperes.
- Compact dimensions with length 2.9 mm, width 1.8 mm, and height 0.9 mm.
- Automotive industry compliant with AEC-Q101 standard for high reliability.
Product Description
onsemi MBR1H100SFT3G is a surface mount Schottky barrier diode specialized for low voltage and high frequency rectification in electronic circuits.
It utilises the Schottky barrier principle, employing barrier metals to achieve a low forward voltage drop and reduced reverse current, which improves efficiency in power switching applications.
Featuring a robust mechanical design in a SOD-123 package, this diode offers compact size and weight advantages critical for automated PCB assembly processes and dense circuit layouts.
The diode supports continuous forward current of 1 ampere with a peak repetitive reverse voltage of 100 volts, suitable for blocking reverse polarity in power management systems. It can withstand surge currents up to 50 amperes and operates at extreme temperatures from -65°C to 175°C, making it reliable for automotive and industrial environments.
The device complies with the automotive AEC-Q101 qualification, ensuring quality for demanding applications in vehicles and related systems. Its design includes epoxy molding for stress protection and light package weight approximately 11.7 milligrams, enhancing durability and ease of handling.
This diode has a single diode configuration optimized for switching and rectifying roles. The 2-pin SOD-123 package supports streamlined surface mounting and space-saving. Low forward voltage drop of 760 mV contributes to energy efficiency.
Wide operating temperature range from -65°C to 175°C ensures functional stability across various conditions. The diode supports peak surge currents of 50 A enabling transient resilience. Meets automotive standards with AEC-Q101 certification ensuring ruggedness and reliability.
Compact physical dimensions make it suitable for high-density electronic assemblies. This diode is ideal for use in industrial automation, power supply rectification, automotive electronics, and high-frequency switching circuits.
Browse our comprehensive selection of semiconductor devices at EnvMart to find compatible components and enhance your design projects.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this diode is rated at 1 ampere.
The peak repetitive reverse voltage for this model is 100 volts.
The maximum forward voltage drop is 760 millivolts, which contributes to efficient energy conversion.
It operates reliably within a temperature range of -65°C to 175°C.
This diode comes in a SOD-123 package type, which is suitable for surface mounting.
The diode can withstand peak non-repetitive forward surge currents up to 50 amperes.
This model complies with the AEC-Q101 automotive standard, ensuring high reliability for automotive applications.
The dimensions of the diode are 2.9 mm in length, 1.8 mm in width, and 0.9 mm in height.
It features a single diode configuration optimized for switching applications.
The peak reverse current is specified at 40 microamperes.
This diode is suitable for applications in industrial automation, power supply rectification, automotive electronics, and high-frequency switching circuits.
The weight of this diode is approximately 11.7 milligrams, which aids in automated PCB assembly processes.
