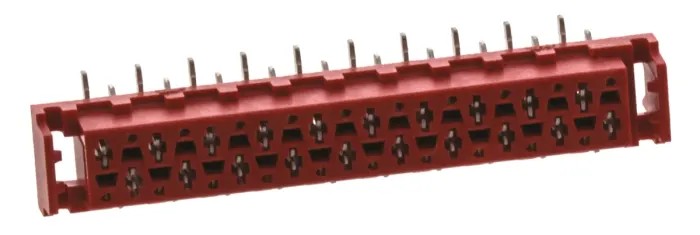

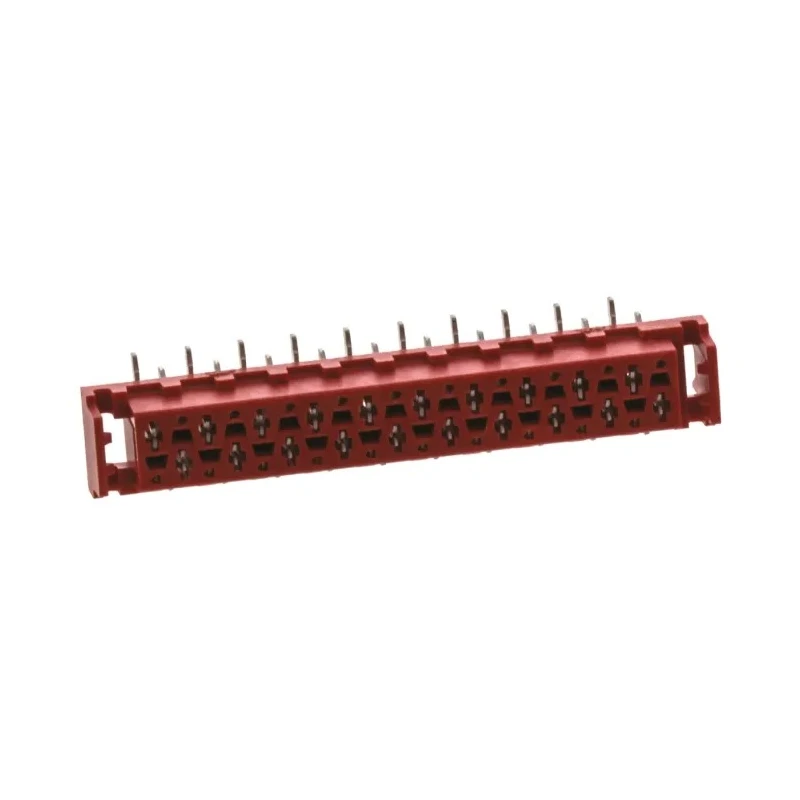

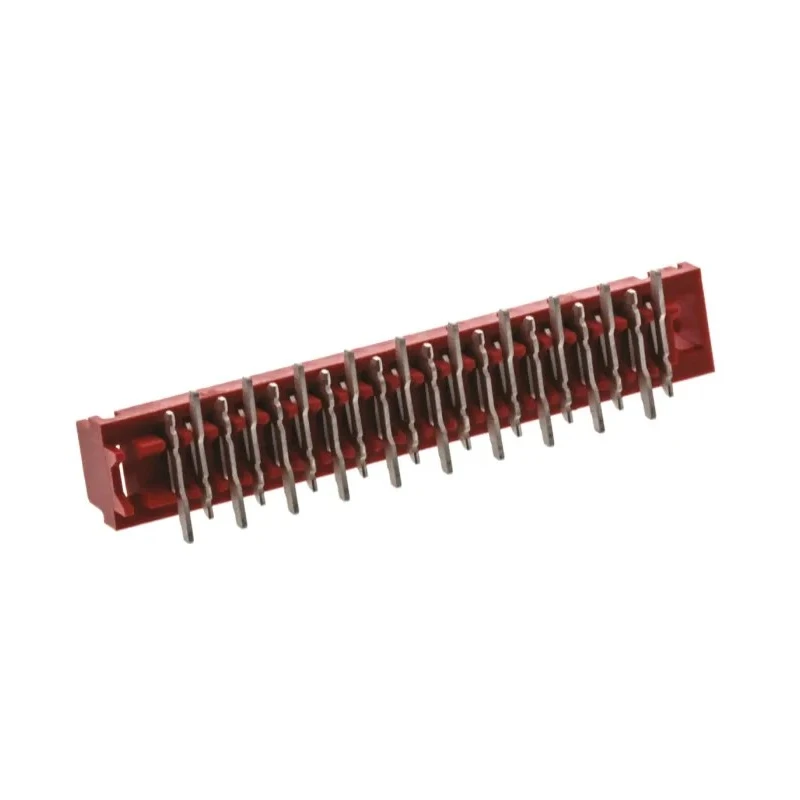

TE Connectivity Micro-MaTch Series Straight Surface PCB Socket, 20-Contact, 2 Row, 2.54 mm Pitch Solder 9-338069-0

TE Connectivity 9-338069-0 Micro-MaTch Series Straight Surface PCB Socket is a high-quality connector designed for compact and reliable board-to-board and wire-to-board applications. This 20-contact, 2-row socket features a 2.54 mm pitch, making it suitable for efficient space utilization on PCBs. The female contacts utilize a spring system to prevent fretting corrosion, ensuring a gas-tight connection that maintains signal integrity over time.

The socket's polyamide housing provides durability and insulation, while the bronze contacts with tin plating guarantee excellent conductivity and corrosion resistance. Designed for surface mount technology (SMT) and solder termination, this connector supports continuous operation within a temperature range of -40°C to 105°C and handles currents up to 1.5A at 100V, making it well-suited for demanding electronic environments.

Polarization features prevent mismating, and versions with locking latches secure the mating connection for added reliability. The compact Micro-MaTch design is ideal for various industrial and commercial uses, including robotics, production and material handling equipment, automotive systems like car radios and dashboard controls, as well as audio and navigation systems.

Compact and space-saving design suitable for board-to-board interconnections. Female-on-board connector type with solder termination ensures robust connections. Polyamide housing enhances durability and insulation. Bronze contacts plated with tin provide reliable conductivity and corrosion protection.

Supports operating voltage up to 100V and current rating of 1.5A. Polarization prevents mismating; locking latches available for secure connections. Temperature range: -40°C to 105°C for versatile application environments.

Frequent applications include robotics, control units, automotive electronics, and audio equipment. This TE Connectivity Micro-MaTch PCB socket is manufactured in Germany and is supplied new, ensuring high-quality standards and compliance.
