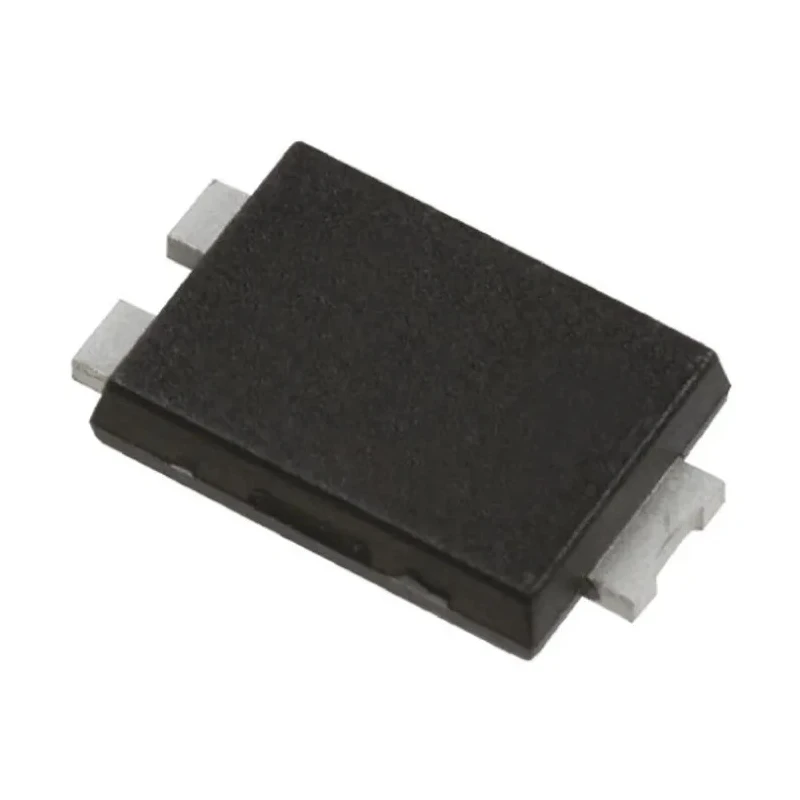

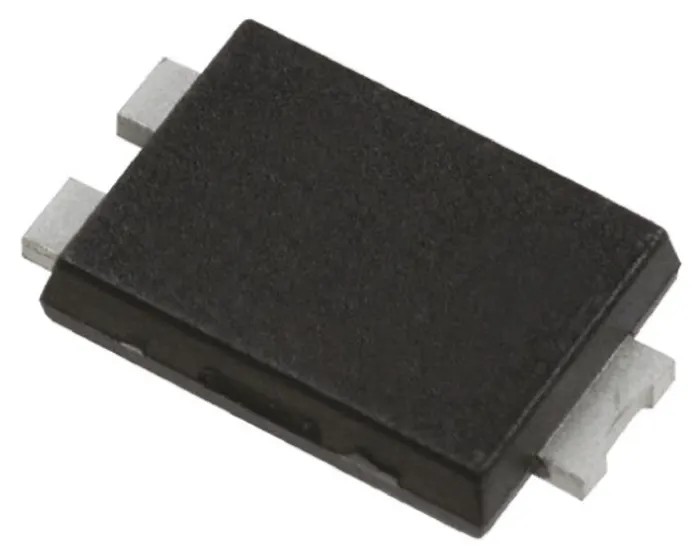

DiodesZetex 200 V 10 A General Purpose 3-Pin PowerDI5 Schottky Barrier Diode SBR10U200P5-13
Specifications
| Country of Origin | China |
|---|---|
| Brand | DiodesZetex |
| Height | 1.15mm |
| Length | 4.05mm |
| Model | SBR10U200P5-13 |
| Width | 5.45mm |
| Mount Type | Surface |
| Series | 10A SBR |
| Maximum Operating Temperature | 175°C |
| Package Type | PowerDI5 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | FBI |
| Pin Count | 3 |
| Automotive Standard | AEC |
| Maximum Continuous Forward Current If | 10A |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 10mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 180A |
| Maximum Forward Voltage Vf | 880mV |
Key Features
- Features a maximum forward voltage of 880mV for efficient operation.
- Supports a peak non-repetitive forward surge current of 180A.
- Operates reliably across a wide temperature range from -65°C to 175°C.
- Designed for surface mount applications in power rectification and switching circuits.
- Compact dimensions of 4.05mm length, 5.45mm width, and 1.15mm height.
- Meets automotive standard AEC and FBI approvals for industrial quality.
- Constructed with a single diode configuration optimized for general-purpose use.
- Manufactured in China ensuring consistent quality and performance.
Product Description
DiodesZetex SBR10U200P5-13 is a general purpose Schottky Barrier Diode featuring a 3-pin PowerDI5 surface mount package. It has a maximum continuous forward current of 10A and a peak reverse repetitive voltage of 200V, making it suitable for efficient power rectification in industrial and automotive electronics.
This diode offers low forward voltage (880mV max) and can withstand high surge currents up to 180A, providing robust performance under demanding electrical conditions. It is designed for reliable operation in temperature extremes from -65°C to 175°C.
The diode’s compact package dimensions (4.05mm × 5.45mm × 1.15mm) facilitate use in space-constrained PCB designs. It meets recognized industry standards including FBI and the automotive AEC standard, ensuring high reliability and thermal stability.
Typical applications include power supply rectifiers, switching power circuits, and automotive electronics where superior switching and conduction efficiency are required. The device is constructed as a single diode configuration optimized for general purpose usage, offering a balance of high performance and cost efficiency.
Features a maximum forward voltage of 880mV for efficient operation. Supports a peak non-repetitive forward surge current of 180A. Operates reliably across a wide temperature range from -65°C to 175°C. Designed for surface mount applications in power rectification and switching circuits.
Compact dimensions of 4.05mm length, 5.45mm width, and 1.15mm height. Meets automotive standard AEC and FBI approvals for industrial quality. Constructed with a single diode configuration optimized for general-purpose use.
Manufactured in China ensuring consistent quality and performance.
This diode is ideal for industrial electronics, automotive systems, power supplies, and manufacturing applications demanding reliable Schottky diode performance. Discover more power diodes and semiconductor products in the EnvMart Electronics & Electricals category.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this model is 10A.
This diode has a peak reverse repetitive voltage rating of 200V.
The dimensions of the PowerDI5 package are 4.05mm in length, 5.45mm in width, and 1.15mm in height.
The maximum forward voltage of this diode is 880mV.
It supports a peak non-repetitive forward surge current of 180A.
This model operates reliably across a wide temperature range from -65°C to 175°C.
It meets automotive standard AEC and FBI approvals for industrial quality.
It is designed for surface mount applications in power rectification and switching circuits.
This diode features a single diode configuration optimized for general-purpose use.
The peak reverse current rating for this model is 10mA.
The mount type for this diode is surface mount.
This diode is manufactured in China, ensuring consistent quality and performance.
