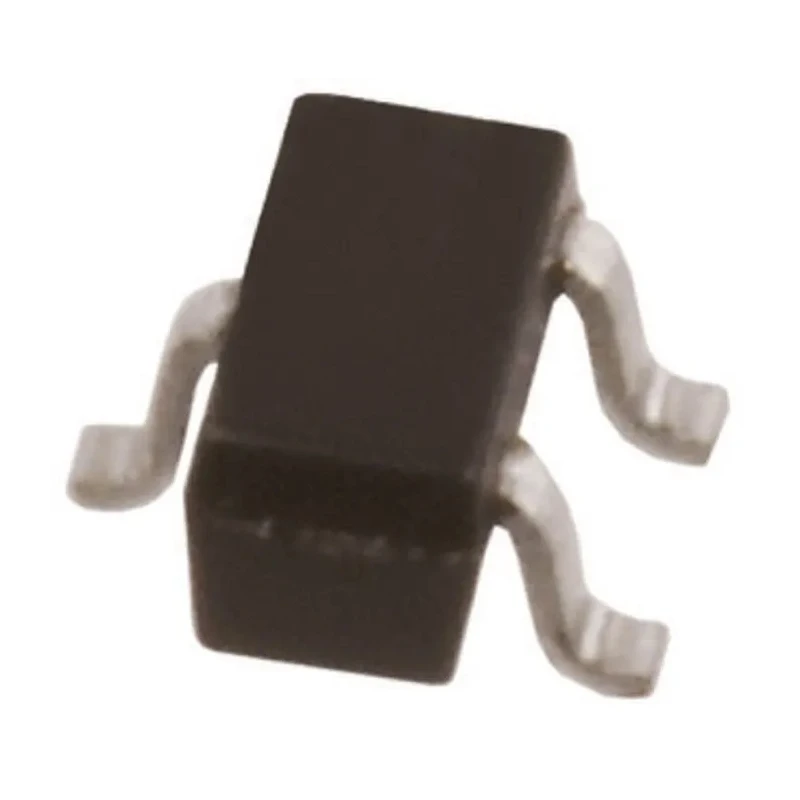

DiodesZetex Schottky Barrier Switching Diode 30 V 200 mA 3-Pin SC-89 BAT54CT-7-F
Specifications
| Country of Origin | China |
|---|---|
| Brand | DiodesZetex |
| Height | 0.8mm |
| Length | 1.7mm |
| Model | BAT54CT-7-F |
| Width | 0.85mm |
| Mount Type | Surface |
| Series | BAT54CT |
| Maximum Operating Temperature | 125°C |
| Package Type | SC-89 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 200mA |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Diode Configuration | Common Cathode |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 2μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 600mA |
| Maximum Forward Voltage Vf | 1V |
| Peak Reverse Recovery Time trr | 5ns |
Key Features
- This diode features a common cathode in a compact 3-pin SC-89 package.
- Maximum continuous forward current rating is 200 mA ensuring reliable low current applications.
- Peak reverse repetitive voltage rating is 30 V providing robust blocking capability.
- Offers ultra-fast peak reverse recovery time of 5 ns for improved switching performance.
- Can operate in temperatures from -65°C up to 125°C for diverse environments.
- Peak non-repetitive forward surge current capability at 600 mA for transient conditions.
- Compact dimensions of 1.7 mm length, 0.85 mm width, and 0.8 mm height enable high-density PCB designs.
- Complies with AEC-Q101 automotive standardensuring quality and reliability.
Product Description
DiodesZetex BAT54CT-7-F Schottky Barrier Switching Diode is a high-reliability diode designed for switching and rectification applications. It features a maximum continuous forward current of 200 mA and a peak reverse repetitive voltage of 30 V, making it suitable for low voltage, low current electronic circuits. Packaged in a compact 3-pin SC-89 surface mount package, this diode supports efficient PCB layout with minimal space requirements.
Operating temperature ranges from -65°C to 125°C, making it dependable in various industrial and automotive environments. The diode offers excellent switching performance with a peak reverse recovery time of 5 ns and a maximum forward voltage of approximately 1 V, providing efficient conduction with low power loss.
The diode's dimensions of 1.7 mm length, 0.85 mm width, and 0.8 mm height allow high-density circuit designs. It conforms to the automotive AEC-Q101 standard, reflecting its suitability for automotive electronics systems demanding robustness and quality.
Built as part of the BAT54CT series, this common cathode Schottky diode offers low forward voltage and high-speed switching, improving circuit efficiency and reliability. The diode's peak non-repetitive forward surge current rating of 600 mA safeguards transient conditions commonly encountered in power switching.
This diode features a common cathode configuration in a compact 3-pin SC-89 surface mount package. Maximum continuous forward current of 200 mA suitable for low power circuits. 30 V peak reverse repetitive voltage ensures reliable blocking capability.
Fast peak reverse recovery time of 5 ns reduces switching losses. Wide operating temperature range from -65°C to 125°C for diverse applications. Peak non-repetitive forward surge current of 600 mA provides robustness under transient loads.
Compact package size supports high-density printed circuit boards. Complies with AEC-Q101 automotive standard for high reliability. Manufactured in China, suitable for industrial, automotive, and electronic device manufacturing.
This diode is ideal for industrial, automotive, electronic component, and laboratory applications requiring efficient switching and rectification. Its reliable electrical characteristics and automotive qualification make it suitable for power management in embedded systems, signal processing, and protection circuits.
Discover more components and electronics solutions in our Semiconductor category. Enhance your designs with high-quality, industry-standard parts from leading manufacturers like DiodesZetex.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating is 200 mA, making it suitable for low power circuits.
The peak reverse repetitive voltage rating is 30 V, providing reliable blocking capability.
It has a peak reverse recovery time of 5 ns, which enhances switching performance.
This model has dimensions of 1.7 mm in length, 0.85 mm in width, and 0.8 mm in height, allowing for high-density PCB designs.
The diode operates within a temperature range of -65°C to 125°C, making it suitable for diverse environments.
The BAT54CT-7-F features a common cathode configuration, which is ideal for various switching and rectification applications.
It has a peak non-repetitive forward surge current capability of 600 mA, which safeguards against transient conditions.
This model complies with the AEC-Q101 automotive standard, ensuring quality and reliability for automotive applications.
It is packaged in a compact 3-pin SC-89 surface mount package, which supports efficient PCB layout.
The maximum forward voltage is approximately 1 V, allowing for efficient conduction with low power loss.
It is suitable for industrial, automotive, electronic component, and laboratory applications requiring efficient switching and rectification.
The peak reverse current is rated at 2 μA, indicating low leakage current.
