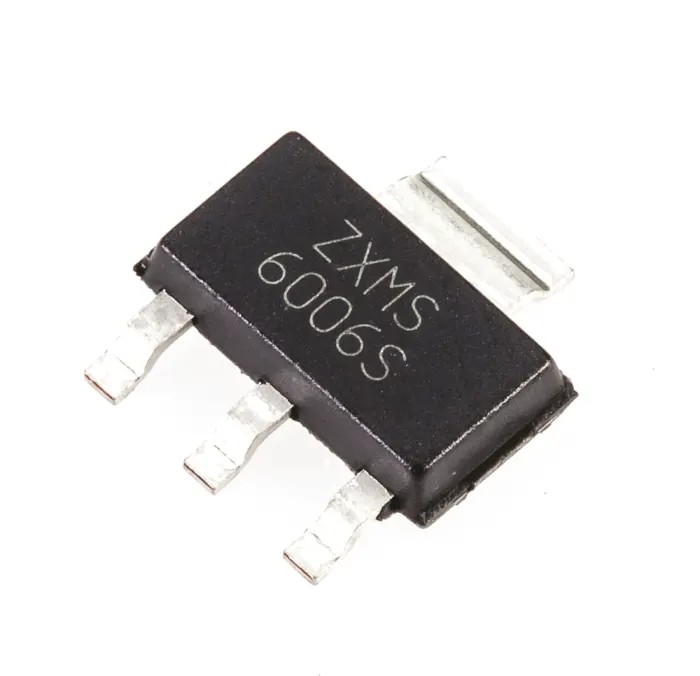

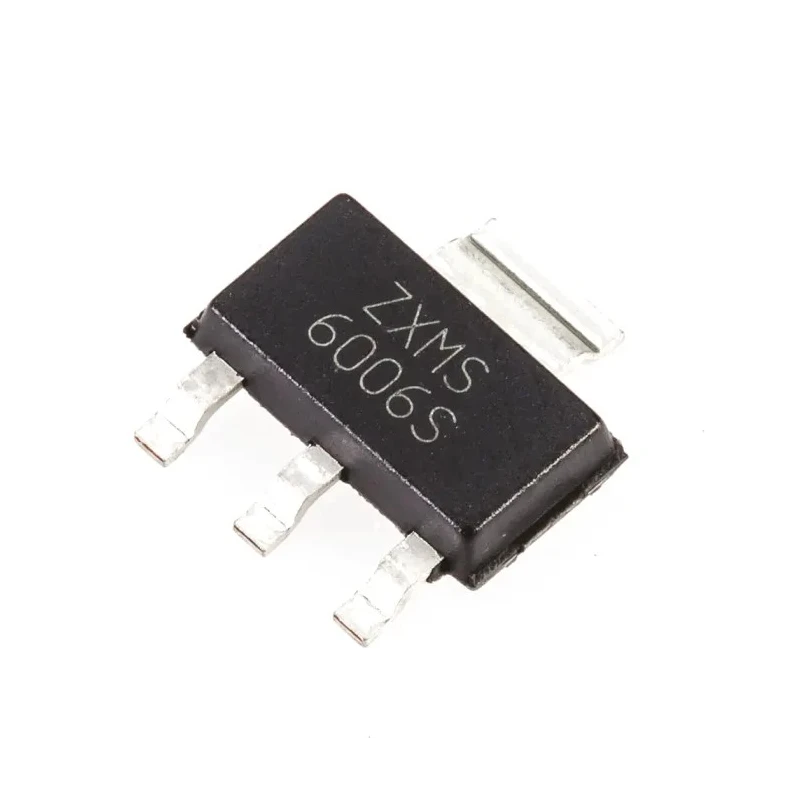

DiodesZetex IntelliFET Type N-Channel MOSFET 2.8 A 60 V Enhancement Surface Mount 4-Pin SOT-223 ZXMS6006SGTA

DiodesZetex ZXMS6006SGTA is an IntelliFET self-protected N-Channel MOSFET designed to provide reliable performance in high-efficiency switching applications. Featuring a maximum continuous drain current of 2.8 A and a maximum drain-source voltage of 60 V, it operates in enhancement mode and comes in a 4-pin SOT-223 package suitable for surface mount assembly.

The device integrates multiple protection features such as ESD protection, over-current shutdown with auto restart, over-voltage active clamp, and thermal shutdown to ensure durability and safeguard circuits from transient events. Its low on-state resistance of 125 milliohms helps minimize power losses, contributing to energy-efficient operation.

Operating temperature extends from -40°C to 125°C, making it suitable for industrial, automotive, and consumer electronics environments. The compact package dimensions (length 6.55 mm, width 3.55 mm, height 1.65 mm) enable dense PCB layouts. The logic level input facilitates direct interfacing with low-voltage control signals.

This MOSFET is widely used in power management circuits, load switching, automotive electronics, and industrial control equipment where robust self-protected semiconductor components are required.

Integrated ESD and over-current protection circuits enhance device longevity. Low Rds(on) supports efficient power switching under load. Wide operating temperature range supports harsh environment use cases. SOT-223 package offers easy surface mount soldering.

Automatic short circuit restart and load dump protection increase system reliability. Ideal for automotive, industrial, and general-purpose power switching. Logic-level gate drive ensures compatibility with low-voltage controllers.
