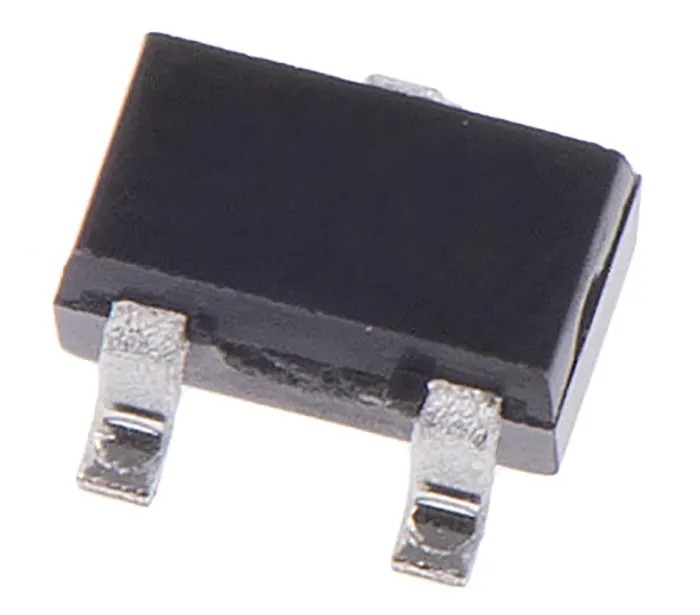

DiodesZetex Small Signal PNP Transistor 100 mA, 45 V, 3-Pin SOT-323 BC857BW-7-F

DiodesZetex BC857BW-7-F is a small signal PNP bipolar junction transistor designed for various electronic applications. It supports a maximum DC collector current of 100 mA and a collector emitter voltage of 45 V. Packaged in a 3-pin SOT-323 surface mount device, this transistor offers compactness suitable for dense PCB layouts and modern electronic circuit designs.

Featuring a robust minimum DC current gain of 220, it provides reliable amplification performance. Its maximum power dissipation rating of 200 mW ensures suitability for low power switching and amplification tasks.

This transistor operates effectively in extreme temperatures ranging from -55°C to +150°C, making it suitable for automotive and industrial environments. It meets critical automotive standards such as AEC-Q100, AEC-Q101, and AEC-Q200, confirming its reliability and quality for automotive electronics manufacturing.

The device's high maximum transition frequency of 200 MHz enables it to perform efficiently in high-frequency circuits. The 3-pin SOT-323 package minimizes the board space required and supports surface mount soldering techniques.

Handles maximum DC collector current of 100 mA. Maximum collector emitter voltage rating of 45 V. 3-pin SOT-323 surface mount package. High DC current gain of 220. Wide operating temperature range from -55°C to 150°C. Maximum power dissipation: 200 mW.

High maximum transition frequency of 200 MHz. Compliant with automotive standards AEC-Q100, AEC-Q101, and AEC-Q200. Compact dimensions: 2.2 mm x 2.2 mm x 1.1 mm. This transistor is suited for industrial, automotive, telecommunications, and general electronic circuit applications requiring reliable, compact PNP transistor components.

EnvMart offers this trusted DiodesZetex BC857BW-7-F transistor with assured quality and technical support for your projects and manufacturing needs.
