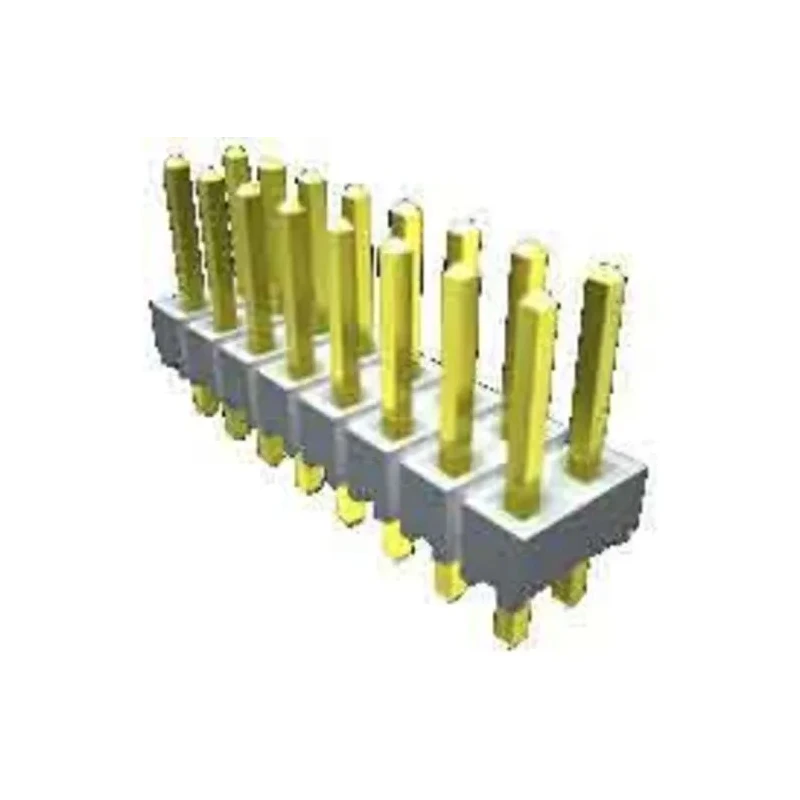

Samtec HTSW Series Straight Through Hole Pin Header 8 Contacts 2.54 mm Pitch 2 Row Unshrouded HTSW-104-07-F-D

Samtec HTSW-104-07-F-D is a precision engineered straight through hole pin header featuring 8 male contacts in a 2-row configuration with a 2.54 mm pitch, designed for robust board-to-board interconnects in electronics manufacturing.

The housing is constructed from liquid crystal polymer, providing excellent durability and heat resistance, making it suitable for high-temperature processing environments. Contacts are made of phosphor bronze with gold plating to enhance conductivity and corrosion resistance. This component supports a current rating of 4.3 A and a maximum voltage of 550 V, ensuring reliable performance in demanding applications.

Operating temperature range from -55°C to 125°C allows usage in diverse industrial settings including PCB assembly, electronic component manufacturing, and prototype development. The termination type is solder with through-hole mount style, facilitating strong mechanical and electrical connections through PCBs. The unshrouded design provides easy mating with compatible connectors and allows visual inspection.

Special features include suitability for most high-temperature board processing, vertical orientation of the pins, and precise dimensions that comply with industry standards. Its compact size with tail pin and mating pin lengths of 2.54 mm and 5.84 mm respectively enables it to fit standard PCB layouts. This pin header is often applied in electronic component connectors, power connector assemblies, and board-to-board linking systems for commercial and industrial electronics.

Engineers and technicians use the HTSW series for reliable, high-quality PCB interconnections. Designed for a current rating of 4.3 A ensuring reliable electrical performance. Maintains a pitch of 2.54 mm suitable for standard PCB layouts.

Features liquid crystal polymer housing offering high-temperature resistance. Phosphor bronze contacts plated with gold for durable conductivity. Operates safely within temperature range from -55°C to 125°C. Termination type is solder through-hole with 2.54 mm tail pin length.

Unshrouded design enables easy access and reliable mating connections. Contact gender is male with mating pin length of 5.84 mm. Voltage rating of 550 V supports various industrial and electronic uses. Suitable for high-temperature board processing environments.
