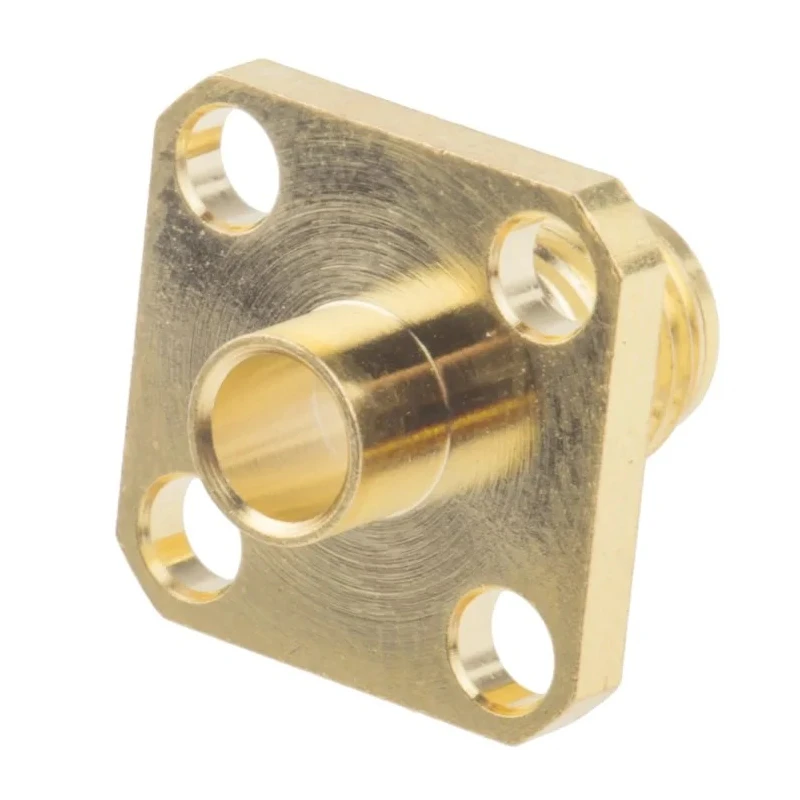

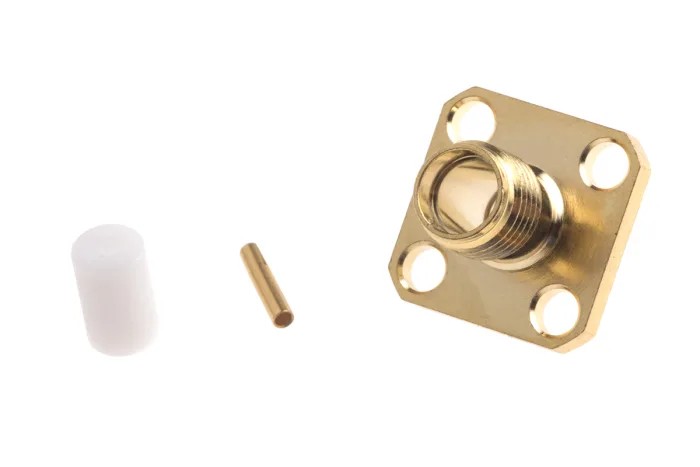

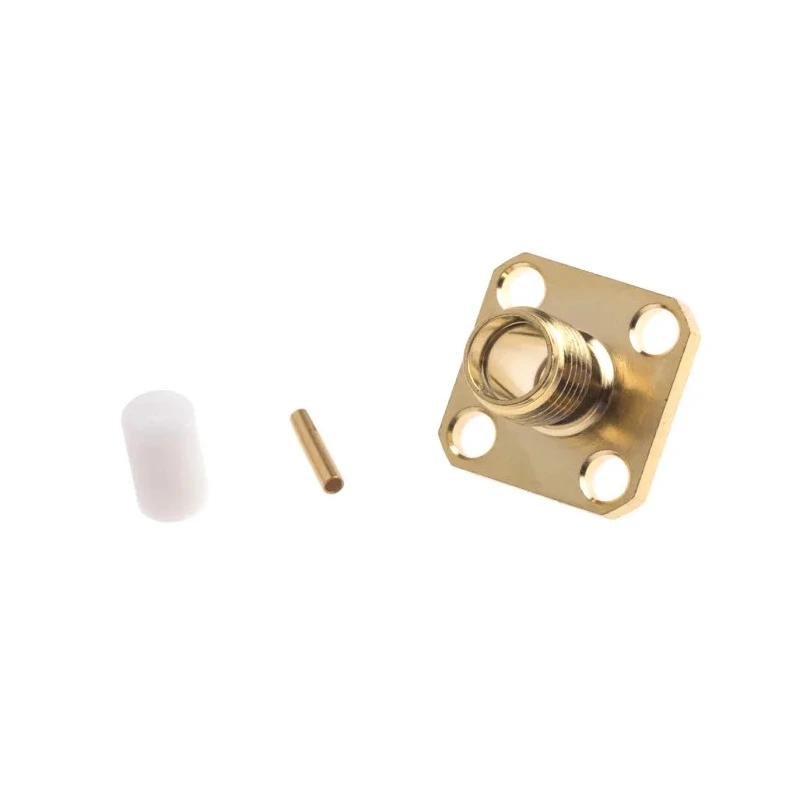

RS PRO Coaxial Connector Flange Female SMA, 50 Ω, Straight Body Solder 546-3169
Specifications
| Country of Origin | Taiwan |
|---|---|
| Size | Subminiature |
| Brand | RS PRO |
| Orientation | Straight |
| Model | 546-3169 |
| Mount Type | Flange |
| Operating Frequency | 18GHz |
| Contact Material | Beryllium Copper |
| Series | RS PRO |
| Termination Type | Solder |
| Maximum Operating Temperature | 165°C |
| Cable Type | RG402 |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | SMA |
| Body Plating | Gold |
| Soldered SMA panel jack for RG402 cableBrand | RS PRO |
| TE Connectivity Coaxial Connector SMA, 50 Ω SolderBrand | TE Connectivity |
Key Features
- Flange mount type with a gold-plated straight body for reliable connectivity.
- Operates efficiently in temperature ranges from -65°C to 165°C.
- Suitable for RG402 cable type with subminiature size specifications.
- Features beryllium copper contacts with gold plating for enhanced conductivity and durability.
- No bulkhead design with normal polarity ensuring standard operation.
- Designed for industrial, laboratory and communication equipment requiring high frequency performance.
- Termination is solder type providing secure and stable electrical connections.
- Manufactured in Taiwan, Province Of China, under RS PRO series standards.
Product Description
RS PRO 546-3169 Coaxial Connector Flange Female SMA, 50 Ω, Straight Body Solder is a high precision coaxial connector suitable for semi-rigid coaxial cable assemblies. It supports operating frequencies up to 18 GHz and is designed to withstand harsh industrial environments, operating between -65°C and 165°C.
This flange mount connector features a gold-plated straight body ensuring excellent electrical performance and corrosion resistance. Contact materials are made of beryllium copper with gold plating, enhancing conductivity and providing long-lasting reliability.
The connector is designed with normal polarity and suitable for RG402 cable types with subminiature size specifications. The solder termination allows for secure assembly in high-frequency communication, test equipment, and laboratory instruments.
Manufactured under the RS PRO series and produced in Taiwan, Province Of China, this connector meets the demands of industrial, laboratory, and communication applications requiring stable high-frequency signal transmission.
Flange mount type with gold-plated straight body. 50 Ω impedance optimized for RG402 cable. Operating temperature range from -65°C to 165°C. Beryllium copper contact material with gold plating. Solder type termination for stable connections.
Designed for high-frequency applications up to 18 GHz.
This coaxial connector is ideal for use in industrial testing, laboratory instrumentation, communication equipment, and other high-frequency electronic assemblies requiring robust and reliable connectors. It supports repeatable performance with high power ratings in small diameters.
Explore more Coaxial Connectors in the Electronics Components section at EnvMart for compatible and complementary products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This coaxial connector supports operating frequencies up to 18 GHz, making it suitable for high-frequency applications.
The impedance of this connector is 50 Ω, optimized for use with RG402 cable types.
It operates efficiently in temperature ranges from -65°C to 165°C, suitable for various harsh environments.
This model features a solder type termination, providing secure and stable electrical connections.
The contact material is beryllium copper with gold plating, enhancing conductivity and durability.
This connector has a flange mount type design, allowing for secure installation in various applications.
It is designed for use with RG402 cable types, which have subminiature size specifications.
The connector features a straight body orientation, facilitating easy integration into assemblies.
This coaxial connector is manufactured in Taiwan, Province Of China.
It is designed with normal polarity, ensuring standard operation in various applications.
The connector is classified as subminiature in size, suitable for compact installations, though specific dimensions are not provided.
It is suitable for industrial testing, laboratory instrumentation, and communication equipment requiring high-frequency performance.
