| Country of Origin | China |
|---|---|
| Diameter | 7in |
| Brand | Vishay |
| Height | 0.73mm |
| Length | 2.3mm |
| Model | MSS1P6-M3/89A |
| Width | 1.4mm |
| Mount Type | Surface |
| Series | eSMP |
| Maximum Operating Temperature | 150°C |
| Package Type | SMP |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | JESD 201 Class 2 whisker test, J-STD-020, RoHS, UL 94 V-0 |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 150μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 25A |
| Maximum Forward Voltage Vf | 680mV |

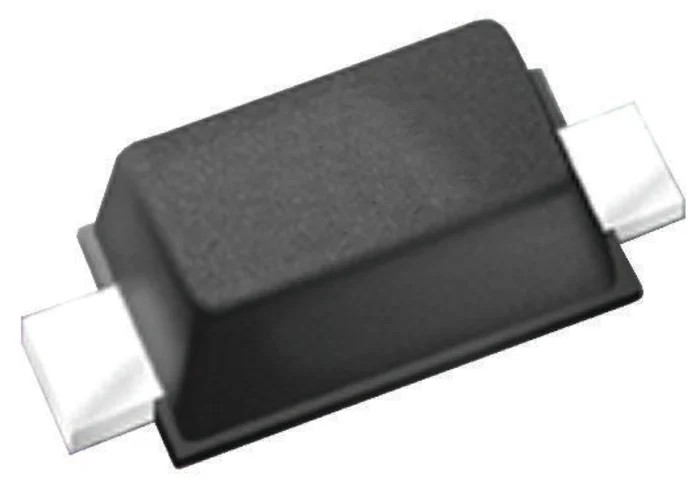

Vishay MSS1P6-M3/89A is a high-performance Schottky diode designed for surface mount applications. It offers a continuous forward current rating of 1 A and a peak reverse repetitive voltage rating of 60 V, perfect for low voltage, high efficiency rectification and fast switching circuits.
This 2-pin SMP packaged diode exhibits very low forward voltage drop of approximately 680 mV, significantly reducing power loss and heat generation. Its reverse recovery times are extremely short, making it ideal for high speed switching in automotive, industrial, and consumer electronics.
The diode operates within a wide temperature range from -55°C minimum to 150°C maximum, adapting well to harsh environments. It meets rigorous standards including AEC-Q101 automotive qualification, JESD 201 Class 2 whisker testing, J-STD-020, RoHS compliance, and UL 94 V-0 flammability rating.
Its compact dimensions (length 2.3 mm, width 1.4 mm, height 0.73 mm) allow efficient PCB real estate usage. The package design also supports a peak non-repetitive forward surge current of 25 A, ensuring robustness in transient conditions.
Typical applications include power management circuits, switching power supplies, automotive power electronics, and general high-frequency rectification tasks. Its high reliability and performance make it suitable for industrial, automotive, and consumer electronics manufacturing environments.
Provides very low forward voltage drop for efficient power management. Features fast switching speed ideal for switching and rectifying applications. Compact 2-pin SMP package suitable for surface mounting on PCBs. Operates reliably between -55°C and 150°C temperature range.
Complies with automotive standard AEC-Q101 for robust automotive usage. Maximum forward voltage of 680 mV ensures low power loss during conduction. Designed to withstand 25 A peak non-repetitive forward surge current. Certified to JESD 201 Class 2 whisker test, J-STD-020, RoHS, and UL 94 V-0 standards.
