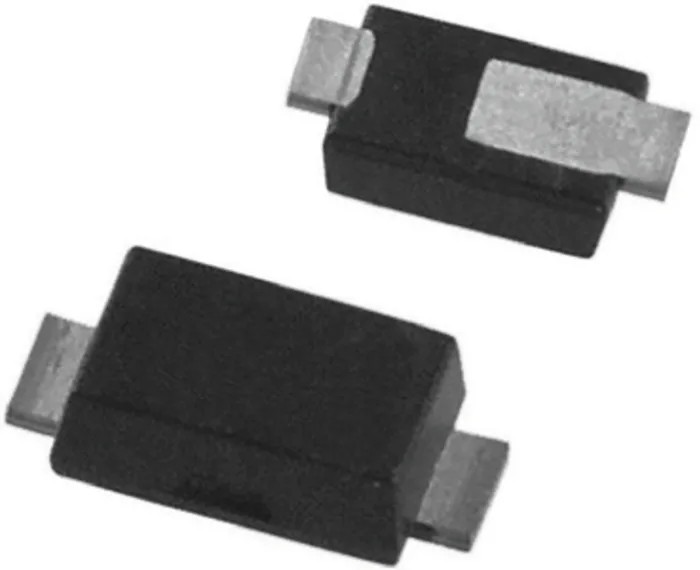

DiodesZetex 20V 2A Schottky Diode Single Rectifier 2-Pin PowerDI123 DFLS220L-7
Specifications
| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Height | 1mm |
| Length | 3mm |
| Model | DFLS220L-7 |
| Width | 1.93mm |
| Mount Type | Surface |
| Series | DFLS220L |
| Maximum Operating Temperature | 125°C |
| Package Type | PowerDI123 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | FBI |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 20V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 1mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 40A |
| Maximum Forward Voltage Vf | 420mV |
Key Features
- This diode features a maximum continuous forward current of 2 amperes.
- It supports a peak reverse repetitive voltage of 20 volts for robust performance.
- The maximum forward voltage drop is low at 420 millivolts to improve efficiency.
- It operates reliably between -55°C and 125°C, suitable for a variety of environments.
- The diode comes in a compact PowerDI123 surface-mount package with dimensions of 3mm length, 1.93mm width, and 1mm height.
- This device holds an automotive standard qualification AEC-Q101, making it suitable for automotive electronics.
- The peak non-repetitive forward surge current is rated at 40 amperes for transient handling.
- The device exhibits a peak reverse current of 1 milliampere ensuring minimal leakage.
Product Description
DiodesZetex DFLS220L-7 is a high-performance Schottky diode designed for surface mount applications requiring low forward voltage drop and high efficiency at 2 amperes current and 20 volts peak reverse voltage rating. Packaged in the compact PowerDI123 format, this diode measures 3mm in length, 1.93mm in width, and 1mm in height, making it suitable for space-constrained electronic assemblies.
This single diode Schottky rectifier is engineered for robust thermal stability and high reliability with an operational temperature range from -55°C to +125°C, supported by the automotive standard AEC-Q101 qualification. It supports a maximum forward voltage of 420 millivolts which helps in reducing power loss and heat generation in power conversion applications.
The diode features a peak non-repetitive forward surge current of 40 amperes, enabling it to withstand sudden current spikes, while its peak reverse current is maintained at 1 milliampere, ensuring minimal leakage in reverse bias conditions.
Ideal for industrial power electronics, automotive circuits, and embedded power control systems, the DFLS220L-7 provides enhanced efficiency, stable operation, and long service life.
This diode features a maximum continuous forward current of 2 amperes. It supports a peak reverse repetitive voltage of 20 volts for robust performance. The maximum forward voltage drop is low at 420 millivolts to improve efficiency.
It operates reliably between -55°C and 125°C, suitable for a variety of environments. The diode comes in a compact PowerDI123 surface-mount package with dimensions of 3mm length, 1.93mm width, and 1mm height. This device holds an automotive standard qualification AEC-Q101, making it suitable for automotive electronics.
The peak non-repetitive forward surge current is rated at 40 amperes for transient handling. The device exhibits a peak reverse current of 1 milliampere ensuring minimal leakage. The diode is a single diode configuration designed for Schottky type rectification.
Explore the wide range of high-quality Semiconductors and Schottky Diodes at EnvMart for your industrial and commercial electronics projects.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the DFLS220L-7 is 2 amperes.
This model supports a peak reverse repetitive voltage of 20 volts.
The maximum forward voltage drop is 420 millivolts, which helps improve efficiency.
It operates reliably between -55°C and 125°C, suitable for various environments.
The diode comes in a compact PowerDI123 package measuring 3mm in length, 1.93mm in width, and 1mm in height.
The peak non-repetitive forward surge current is rated at 40 amperes, allowing it to handle transient spikes.
The peak reverse current is 1 milliampere, ensuring minimal leakage during reverse bias conditions.
Yes, it holds an automotive standard qualification AEC-Q101, making it suitable for automotive electronics.
This unit is a single diode configuration designed for Schottky type rectification.
The diode is designed for surface mount applications.
The country of origin for the DFLS220L-7 is India.
This model belongs to the DFLS220L series.
