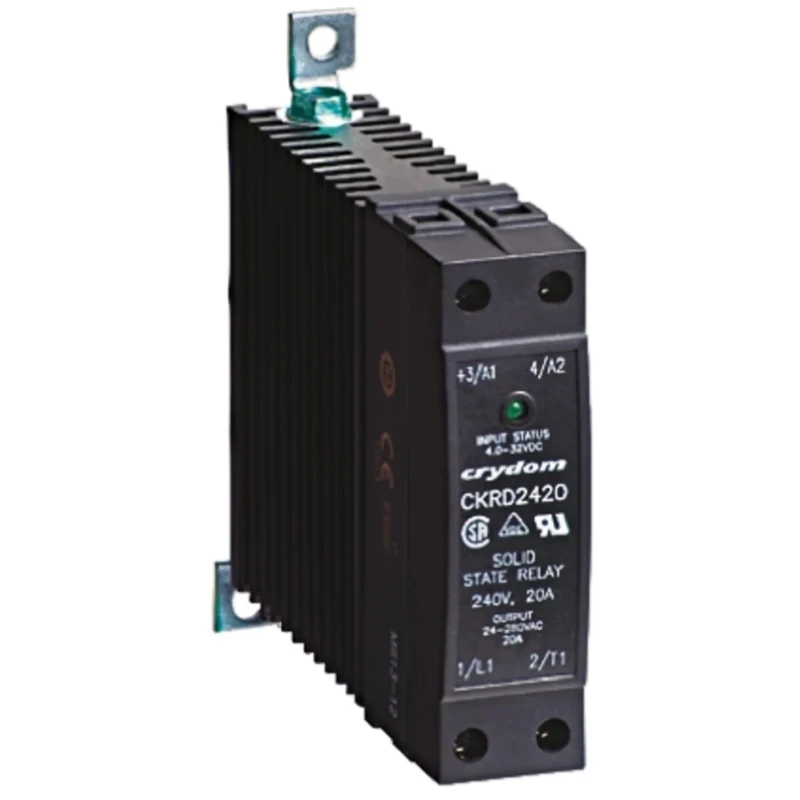

Crydom Solid State Relay CKR24 Series, 10 A Load, DIN Rail Mount, 280 Vrms Load, 110-280 Vrms Control CKR24
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | Crydom |
| Height | 99mm |
| Length | 81.9mm |
| Model | CKR24 |
| IP Rating | IP20 |
| Width | 22.5mm |
| Mount Type | DIN Rail |
| Output type | SCR |
| Series | CKR24 |
| Maximum Operating Temperature | 80°C |
| Capacitance | 8pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Box Clamp |
| Switching Function | Zero Cross |
| Maximum Load Current | 10A |
| Standards/Approvals | RoHS |
| Minimum Load Voltage | 280V |
| Minimum Control Voltage | 110V ac |
| Off State Leakage Current | 10mArms |
Key Features
- Compact DIN rail mount design for easy installation.
- Handles maximum load current of 10 amps efficiently.
- Wide control voltage range between 110 V AC and 280 Vrms.
- Operates reliably within temperature range of -40°C to 80°C.
- Zero cross switching function to reduce electrical noise.
- Encapsulated in a robust epoxy case for thermal conductivity and durability.
- LED indicator provides quick visual status of relay operation.
- Low off-state leakage current of 10 mArms ensures energy efficiency.
Product Description
Crydom CKR24 Series Solid State Relay CKR24 offers a robust solution for switching electrical loads up to 10 A with a maximum load voltage of 280 Vrms and compatible control voltage range from 110 V AC to 280 Vrms. Designed for DIN rail mounting, it facilitates quick and secure installation in industrial control panels and automation systems.

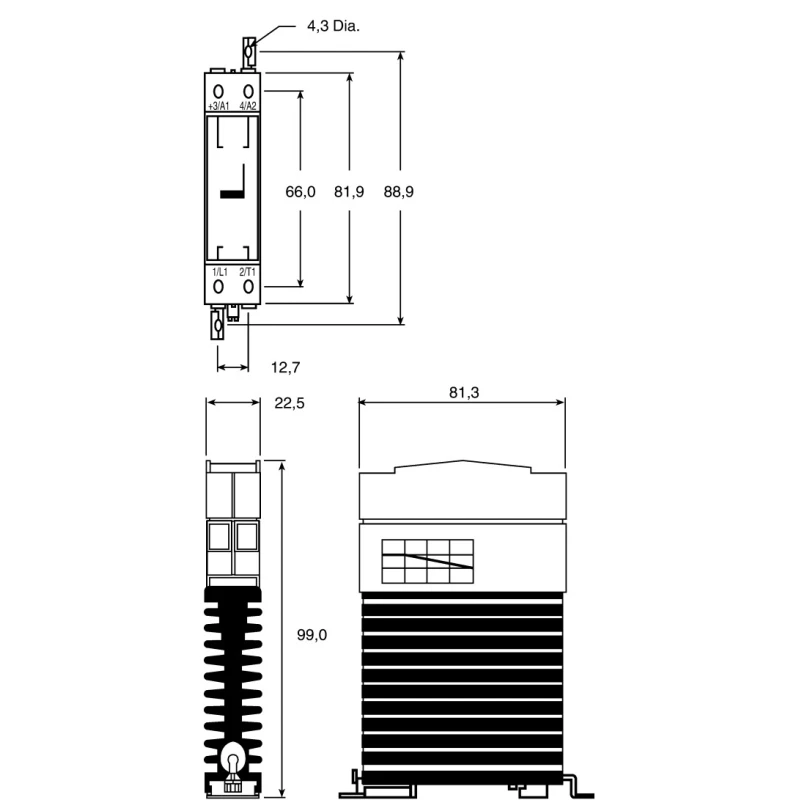

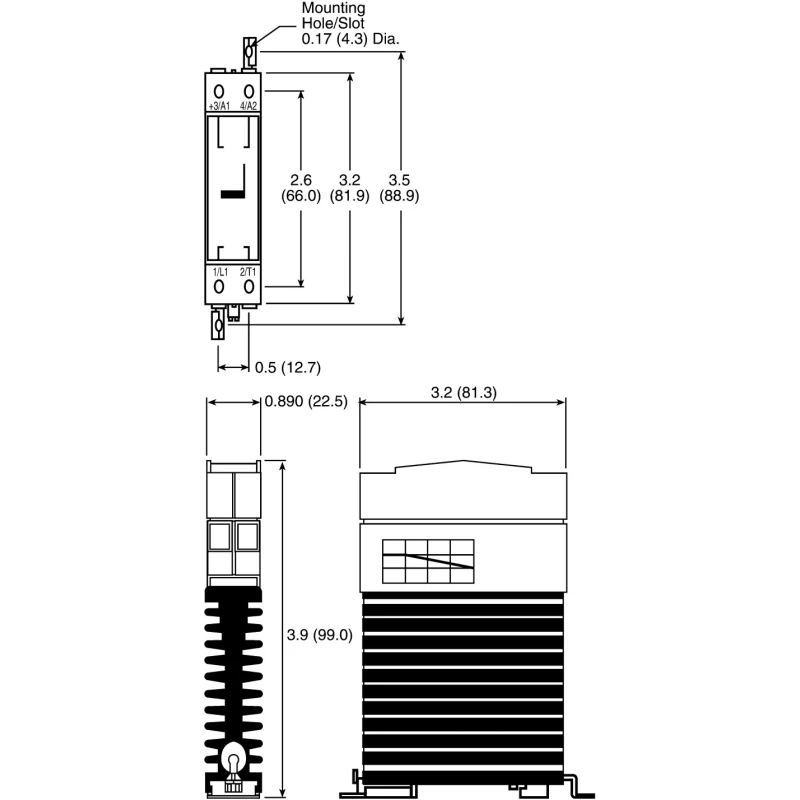

Its zero-cross switching function minimizes electrical noise and stress on connected loads, improving reliability and longevity. The relay's compact size (81.9 mm length x 22.5 mm width x 99 mm height) makes it suitable for applications with space constraints.
This relay features an encapsulated thermally conductive epoxy case to withstand high operating temperatures up to 80°C and offers protection with an IP20 rating. The off-state leakage current is minimal at 10 mArms, enhancing operational efficiency.
An LED indicator enables easy monitoring of relay status, ensuring quick visual checks in complex assemblies. The SCR output type ensures solid-state switching performance without mechanical wear points, ideal for long-life industrial use.
Applications include robotics control, telecommunication devices, industrial automation, and various electrical control systems where reliable and noise-free switching is required.
Compact DIN rail mount design for easy integration. 10 A maximum load current capability. Wide 110 to 280 Vrms control voltage compatibility. Robust construction with thermally conductive epoxy encapsulation. Operating temperature range from -40°C to 80°C.
Zero crossing switching function for noise reduction. LED indicator for real-time operation status. Low off-state leakage current of 10 mArms. Compact dimensions for tight space installation. Explore high-quality Crydom Solid State Relays in the Electronics & Electrical category on EnvMart for various industrial and control system applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this model is 10 A.
It operates with a control voltage range of 110 V AC to 280 Vrms.
The dimensions are 81.9 mm in length, 22.5 mm in width, and 99 mm in height.
The operating temperature range is from -40°C to 80°C.
This model is designed for DIN rail mounting, facilitating easy installation.
The off-state leakage current is 10 mArms, which enhances energy efficiency.
It features an SCR output type, ensuring solid-state switching performance.
Yes, it has an IP20 rating for protection and is encapsulated in a thermally conductive epoxy case.
The relay utilizes a zero-cross switching function to minimize electrical noise.
This model complies with RoHS standards.
It is suitable for applications in robotics control, telecommunication devices, and industrial automation.
It uses a box clamp terminal type for secure connections.
