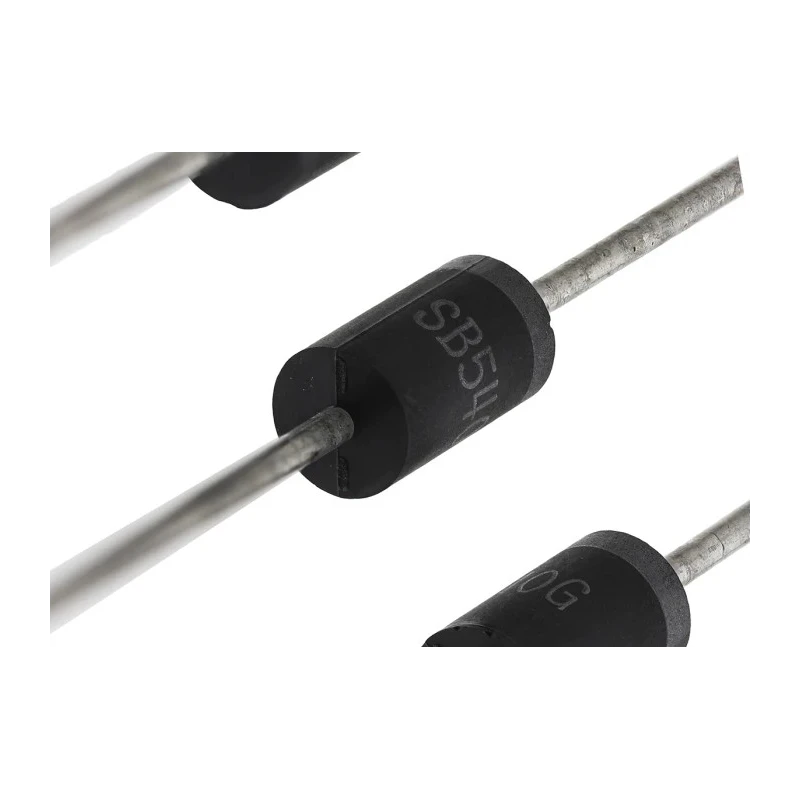

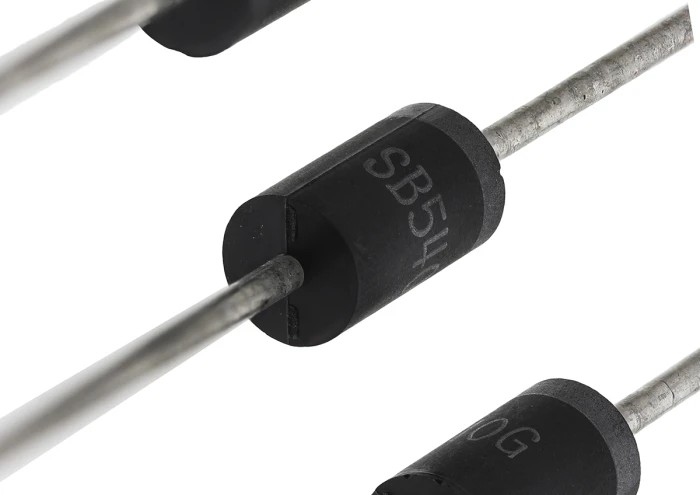

Vishay 40 V 5 A Schottky Diode 2-Pin DO-201AD SB540-E3/54
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 5.3mm |
| Brand | Vishay |
| Height | 5.8mm |
| Length | 10mm |
| Model | SB540-E3/54 |
| Width | 5.8mm |
| Mount Type | Through Hole |
| Series | SB540 |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-201AD |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 5A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 500μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 220A |
| Maximum Forward Voltage Vf | 0.7V |
| Lite-On 40V 5A, Schottky Diode, 2-Pin DO-201AD SB540Brand | Lite-On |
Key Features
- Maximum continuous forward current of 5 amperes ensures robust operation.
- Peak reverse repetitive voltage rated at 40 volts for effective blocking capabilities.
- Low forward voltage of 0.7 volts minimizes power losses.
- Designed with a compact 2-pin DO-201AD package for easy through-hole mounting.
- Wide operating temperature range from -65°C to 150°C suitable for harsh environments.
- Peak non-repetitive forward surge current up to 220 amperes allows handling of transient surges.
- Extremely fast switching leads to improved efficiency in power applications.
Product Description
The Vishay SB540-E3/54 is a robust Schottky diode designed to offer excellent performance in power electronics applications. It features a maximum continuous forward current of 5 A and a peak reverse voltage of 40 V, making it suitable for load protection and power rectification in industrial, commercial, and automotive systems.
Its low forward voltage drop of 0.7 V combined with fast switching characteristics reduces power loss and heat generation, enhancing overall system efficiency. The diode is housed in a DO-201AD 2-pin through-hole package, facilitating straightforward PCB assembly and durable mechanical support.
The device operates reliably across a wide temperature range from -65°C to 150°C, allowing usage in demanding environmental conditions encountered in manufacturing, HVAC, and electronic instrumentation. Peak non-repetitive forward surge current of 220 A ensures protection against transient overloads in high-current circuits.
The SB540-E3/54 diode is ideal for applications including power supply rectification, freewheeling diodes for motors, and RF mixer components. Its compact dimensions of height 5.8 mm, width 5.8 mm, and diameter 5.3 mm aid in space-constrained designs.
Maximum continuous forward current of 5 A. Peak reverse repetitive voltage of 40 V. Low forward voltage of 0.7 V for energy efficiency. 2-pin DO-201AD through-hole package. Wide operating temperature from -65°C to 150°C.
Peak non-repetitive forward surge current of 220 A. Compact dimensions for space saving integration. Excellent fast switching for reduced losses. Explore related semiconductors and Schottky diode rectifiers within EnvMart for your industrial and electronic design needs.
Explore more products in our Schottky Diodes & Rectifiers category.
