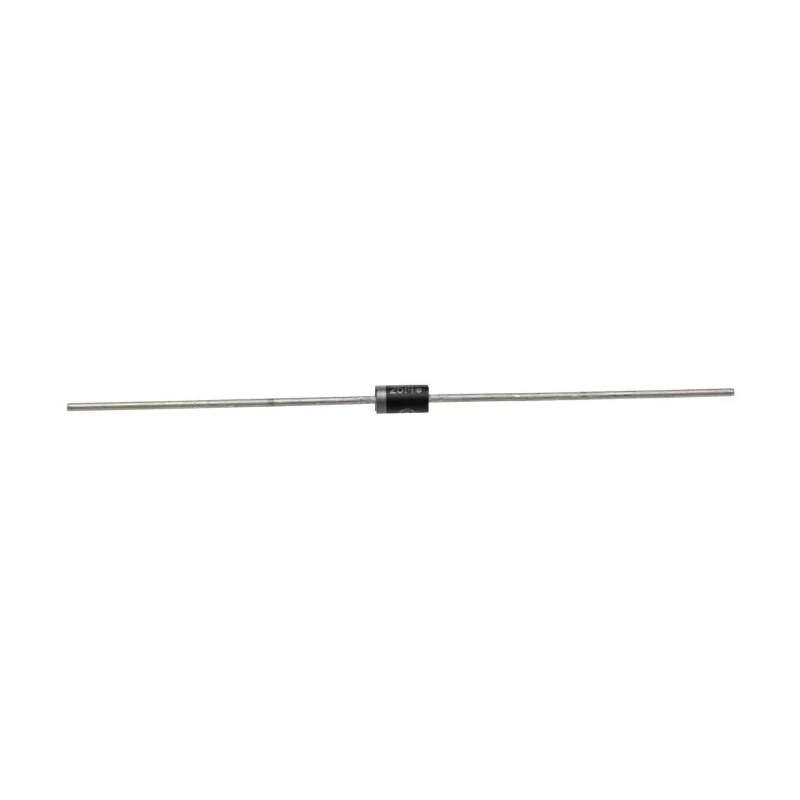

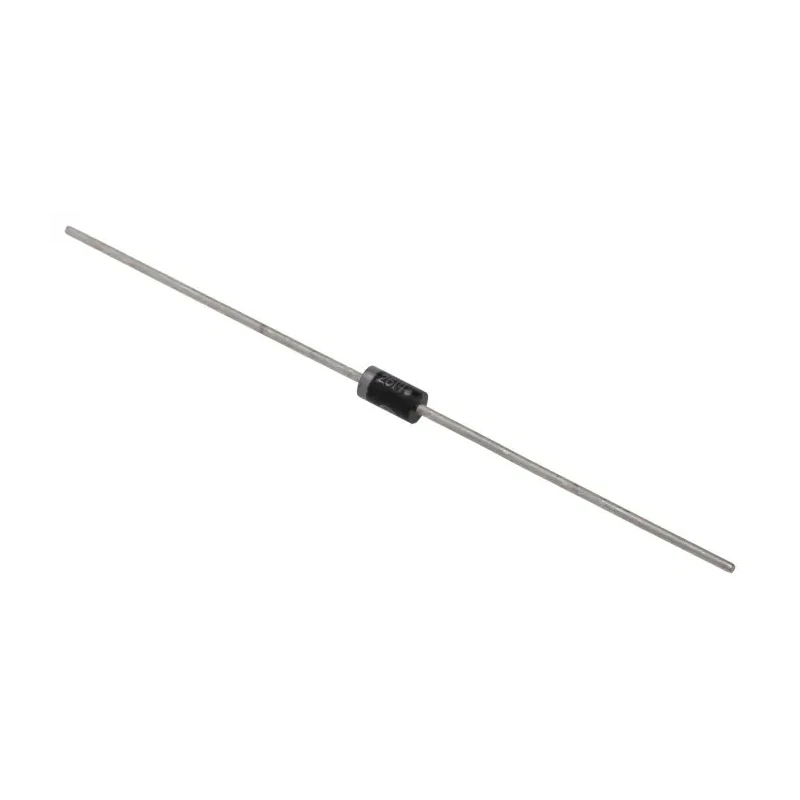

onsemi Schottky Diode 60 V 1 A 2-Pin DO-41 MBR160G

onsemi MBR160G is a Schottky diode housed in a 2-pin DO-41 package, designed for through-hole mounting in electronic circuits requiring efficient low forward voltage drop and fast switching performance. It supports a continuous forward current of 1 ampere and withstands peak repetitive reverse voltages up to 60 volts.

The diode employs a Schottky barrier principle with metal-to-silicon junctions enabling low stored charge and efficient majority carrier conduction. Its epitaxial construction with oxide passivation ensures a stable and reliable junction suitable for high-frequency inverter circuitry, free wheeling diodes, and polarity protection applications in low voltage power electronics.

Mechanically, the device features an epoxy-molded case providing corrosion resistance with terminal leads optimized for soldering at temperatures up to 260 °C for 10 seconds. The diode is marked with a cathode polarity band for ease of identification during assembly. Its compact dimensions (5.2 mm height, 2.7 mm diameter) and light weight (~0.4 grams) make it suitable for dense PCB layouts.

The operating temperature range from -65°C to 150°C accommodates demanding industrial, commercial, and automotive environmental conditions. Additionally, the peak non-repetitive forward surge current rating of 25 amperes offers protection against transient overloads.

This Pb-free component complies with environmental regulations, ensuring sustainable usage in electronic design. It is packed in plastic bags, typically 1000 units per bag, facilitating efficient production and inventory management.

Single diode configuration suitable for high-frequency inverter applications. Maximum continuous forward current of 1 ampere for reliable performance. Peak reverse voltage rating of 60 volts for robust operation. Epoxy molded DO-41 package with corrosion resistant finish and solderable leads.

Operating temperature range from -65°C to 150°C for diverse conditions. Low forward voltage drop of 1.08 volts enhances power efficiency. Peak forward surge current rating of 25 amperes for transient protection. Cathode polarity indicated by marked band for correct installation.

Compact size dimensions: 5.2 mm height and 2.7 mm diameter. RoHS compliant lead-free device offering environmentally safe design.

This onsemi Schottky diode MBR160G is ideal for use in industrial electronics, power supply regulation, automotive electronics, and other commercial electronic assemblies requiring reliable diode performance with low switching losses. Explore the extensive range of semiconductors and diodes available at EnvMart for your specialized project needs.
