| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 0.9mm |
| Length | 2.2mm |
| Model | BAS16WT1G |
| Width | 1.35mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | SC-70 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 200mA |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 50μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 500mA |
| Maximum Forward Voltage Vf | 1.25V |
| Peak Reverse Recovery Time trr | 6ns |
| Nexperia 100 V 175 mA Diode Switching 3-Pin SC-70 BAS16W,115Brand | Nexperia |

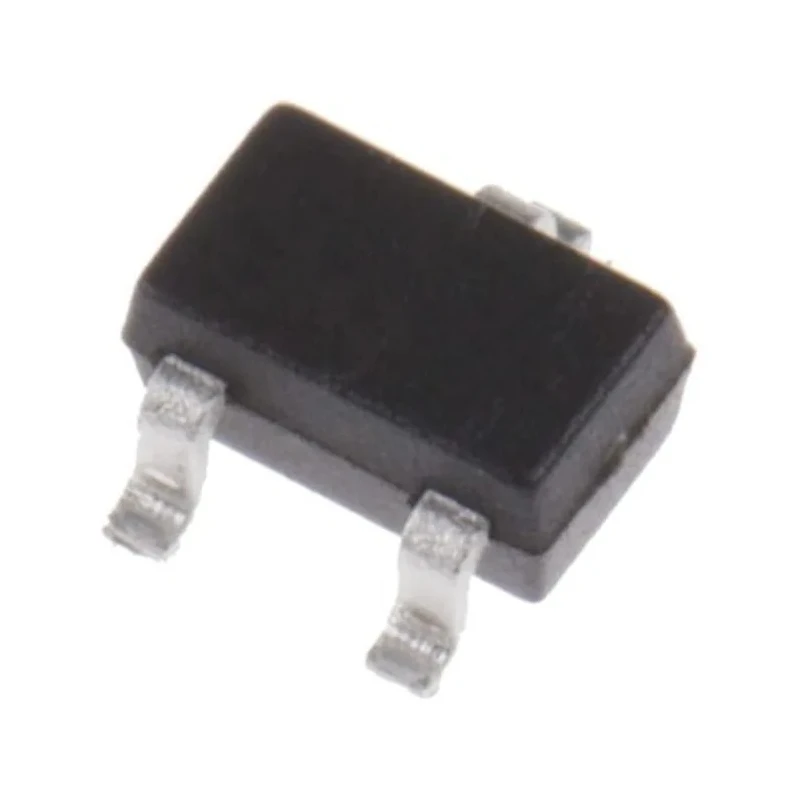

onsemi BAS16WT1G Switching Diode is designed for use in ultra high speed switching applications, housed in a compact SC-70 surface mount package making it ideal for low power electronic circuits.
The diode supports a maximum continuous forward current of 200 mA and withstands peak reverse repetitive voltage up to 100 V, ensuring robust performance in signal switching and rectification tasks.
With a low maximum forward voltage of 1.25 V and a fast peak reverse recovery time of only 6 ns, it facilitates efficient and rapid switching operations, suitable for high-frequency applications.
The device operates reliably over a wide temperature range from -55°C to 150°C, suitable for both industrial and automotive environments. Compliance with the automotive standard AEC-Q101 validates its quality for rigorous automotive applications.
The precise dimensions (2.2 mm length, 1.35 mm width, 0.9 mm height) enable compact PCB designs, and its 3-pin configuration ensures straightforward integration into circuits requiring a single switching diode.
Maximum continuous forward current of 200 mA. Peak reverse repetitive voltage of 100 V. Low forward voltage of 1.25 V enhances efficiency. Peak reverse recovery time of 6 ns for ultra-fast switching. Operating temperature range from -55°C to 150°C.
Compact SC-70 surface mount package. Compliant with AEC-Q101 automotive standard. Single diode configuration with 3 pins.
This switching diode is ideal for use in industrial electronics, automotive systems, communications, and power management circuits where fast switching and reliability are critical.
