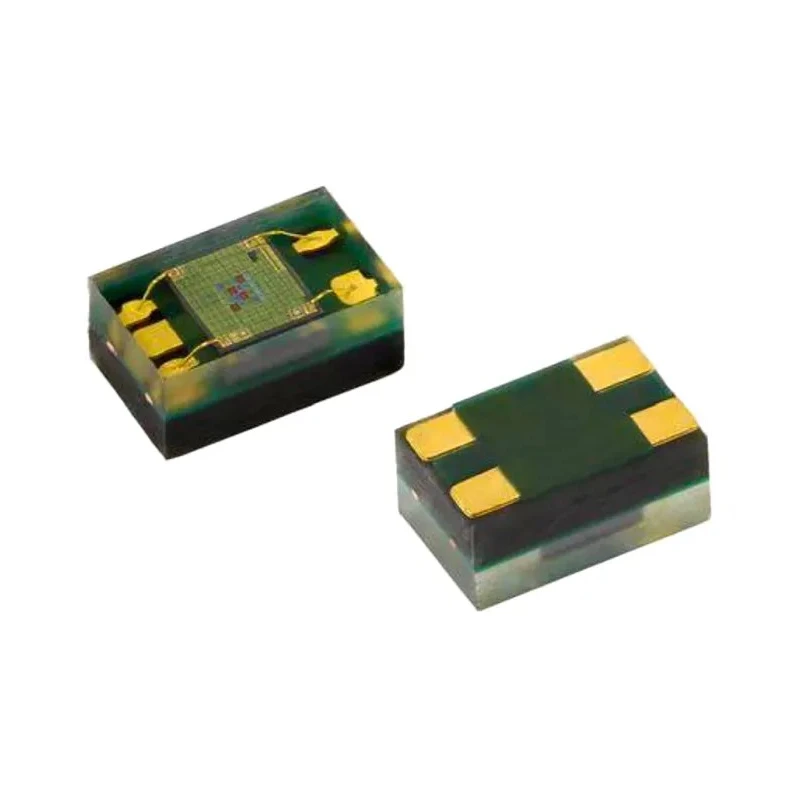

Vishay Ambient Light Spectral Sensor VEML6040A3OG 4-Pin Surface Mount, 2.5-3.6V, 16-bit Resolution

Free Delivery in India | Lowest Global Shipping Charges

Vishay Ambient Light Spectral Sensor VEML6040A3OG 4-Pin Surface Mount, 2.5-3.6V, 16-bit Resolution

Name: Vishay Ambient Light Spectral Sensor VEML6040A3OG 4-Pin Surface Mount, 2.5-3.6V, 16-bit Resolution
Brand: Vishay
SKU: 140547
Price: 2.01 USD
Availability: InStock



Category Colour & Light Sensor ICs Brand Vishay Condition New

Specifications

Country of Origin	Philippines
Resolution	16-bit
Brand	Vishay
Height	1mm
Length	2mm
Temperature Compensation	-40 °C to +85 °C
Model	VEML6040A3OG
Technology	Analogue, Digital
Width	1.25mm
Mount Type	Surface
Output type	I2C bus
Series	VEML6040
Maximum Operating Temperature	85°C
Package Type	OPLGA
Sub Type	Ambient Light Spectral sensitivity to Real Human Eye Responses
Minimum Operating Temperature	-40°C
Standards/Approvals	J-STD-020, Lead (Pb)-Free
Maximum Frequency	400kHz
Pin Count	4
Maximum Supply Voltage	3.6V
Minimum Supply Voltage	2.5V
Supply Current	200μA
Peak Wavelength	650nm
Dimensions (L x W x H in mm)	2.0 x 1.25 x 1.0
Integrated modules	color sensor (RGBW) and signal conditioning IC
Operation Voltage	2.5 V to 3.6 V
Floor Life	168 h, MSL 3, according to J-STD-020

Key Features

Implements FiltronTM technology for accurate ambient light spectral sensitivity.
Surface mount OPLGA package with compact dimensions of 2.0 x 1.25 x 1.0 mm.
Supports 16-bit resolution for RGBW color sensing channels.
Operates at low voltage ranging from 2.5 V to 3.6 V with 200 μA supply current.
Temperature compensated for stable output from -40 °C to +85 °C.
Interfaces via I2C bus (SMBus compatible) with selectable detection ranges up to 16,496 lux.
Provides immunity to fluorescent light flicker and supports dark lens designs.
Ideal for handheld, notebook, consumer, industrial, and mechanical light sensing applications.

Product Description

Vishay's VEML6040A3OG is an advanced ambient light spectral sensor designed to measure red, green, blue, and white light components with high accuracy and spectral sensitivity closely matched to the human eye responses. Featuring a compact 4-pin surface mount OPLGA package measuring 2.0 mm by 1.25 mm by 1.0 mm, this sensor integrates photodiodes, amplifiers, and analog/digital circuits on a CMOS chip for enhanced reliability and performance.

Utilizing proprietary FiltronTM technology, the sensor achieves precise ambient light spectral sensitivity with a peak wavelength at 650 nm. The VEML6040A3OG offers selectable maximum detection ranges from 515.4 lux up to 16,496 lux, coupled with 16-bit resolution on each RGBW channel, enabling highly detailed color and brightness assessment. Low power consumption of 200 μA and an operating voltage range from 2.5 V to 3.6 V make it suitable for battery-powered and compact devices.

This device includes excellent temperature compensation capability, maintaining stable output from an operating temperature range of -40 °C to +85 °C. Its I2C communication interface (SMBus compatible) simplifies integration into diverse platforms. The sensor also features immunity to fluorescent light flickering and supports low transmittance lens applications.

Typical applications include handheld devices, notebooks, consumer electronics, industrial controls, and mechanical devices requiring accurate ambient light and color detection. The package is lead-free and conforms to J-STD-020 moisture sensitivity standards with a floor life of 168 hours at MSL 3.

Implements FiltronTM technology for spectral sensitivity matched to the human eye. Compact 4-pin OPLGA surface mount package. 16-bit resolution RGBW color sensing channels. Low power consumption with 2.5 V to 3.6 V operation voltage.

Stable performance from -40 °C to +85 °C temperature range. I2C bus interface (SMBus compatible) communication protocol. Immunity to fluorescent light flicker and support for dark lens designs. Explore a broad range of sensors and semiconductor solutions in the Electronics & Electricals category at EnvMart.

Explore more products in our Colour & Light Sensor ICs category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The VEML6040A3OG sensor supports a resolution of 16-bit for its RGBW color sensing channels.

This model has compact dimensions of 2.0 mm in length, 1.25 mm in width, and 1.0 mm in height.

The sensor operates within a voltage range of 2.5 V to 3.6 V.

It offers selectable maximum detection ranges from 515.4 lux up to 16,496 lux.

The VEML6040A3OG interfaces via an I2C bus, which is compatible with SMBus.

The supply current for the VEML6040A3OG is 200 μA.

It is temperature compensated for stable output within a range of -40 °C to +85 °C.

This sensor implements both analogue and digital technology for enhanced performance.

The VEML6040A3OG is housed in a 4-pin surface mount OPLGA package.

It conforms to J-STD-020 standards and is lead-free.

This model is suitable for applications in handheld devices, notebooks, consumer electronics, and industrial controls requiring accurate ambient light and color detection.

The sensor has a peak wavelength of 650 nm, closely matching human eye responses.
