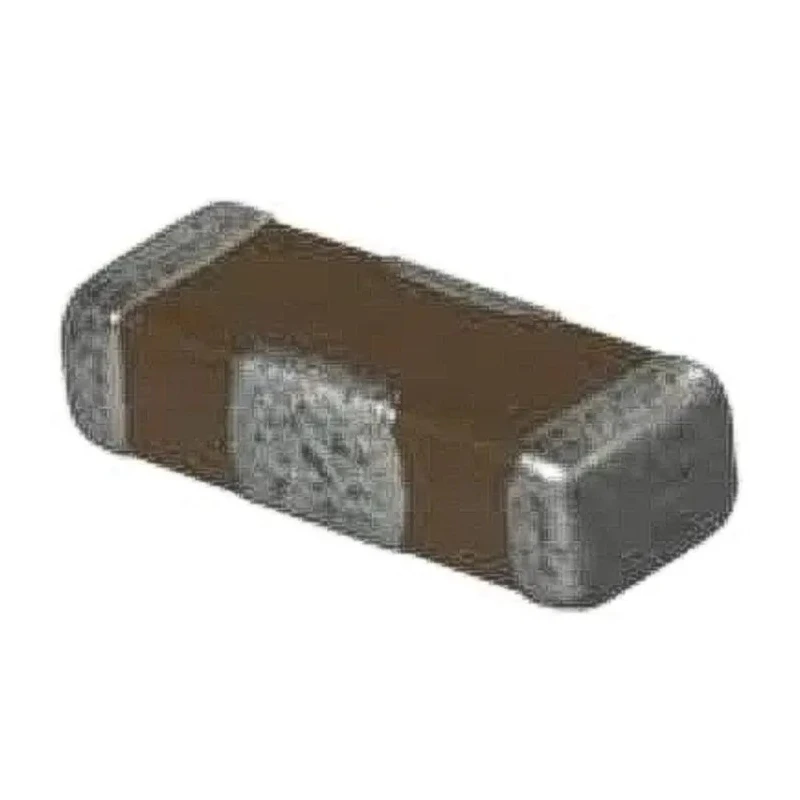

Murata Signal Filter, 2.2nF Capacitance, 16V DC, ±20% Tolerance, Surface Mount 0603 Package NFM18CC

Murata NFM18CC is a high-quality signal filter designed for effective electromagnetic interference (EMI) suppression in electronic circuits. This surface mount device features a capacitance of 2.2nF and is rated for a maximum voltage of 16V DC, packaged in a compact 0603 footprint suitable for modern PCB assemblies.

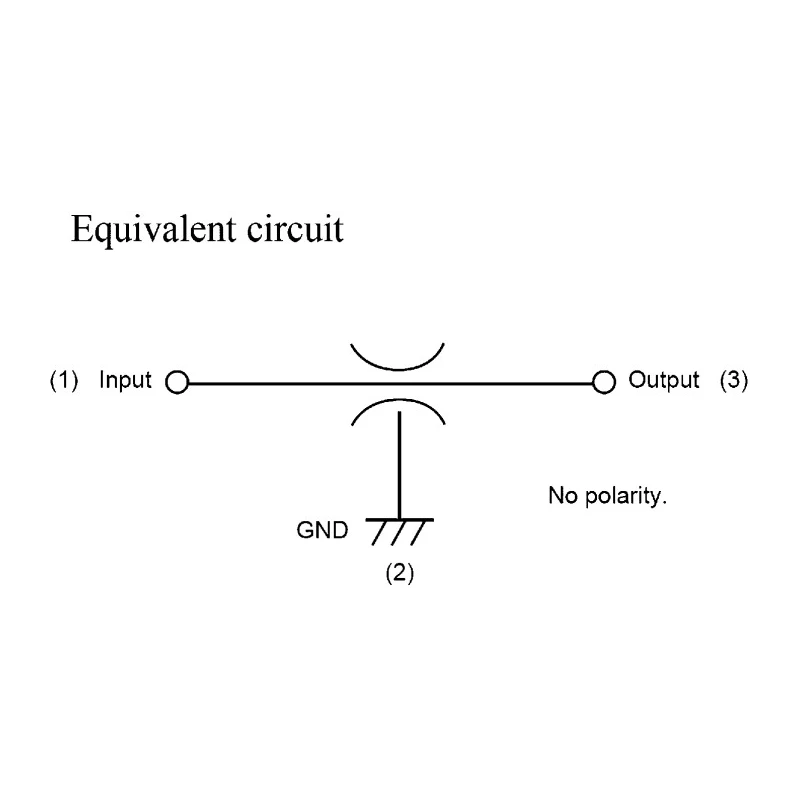

The NFM18CC series filters include three terminals optimized for noise, signal, and line feedthrough, providing superior filtering up to GHz frequency ranges. This makes the filter suitable for industrial, laboratory, and commercial electronic equipment where EMI reduction is critical for stable and accurate device operation.

The device operates reliably across an extended temperature range from -55°C to 125°C, accommodating harsh environmental conditions often found in industrial and construction applications. Its low resistance of 1000 milliohms minimizes signal attenuation, preserving signal integrity.

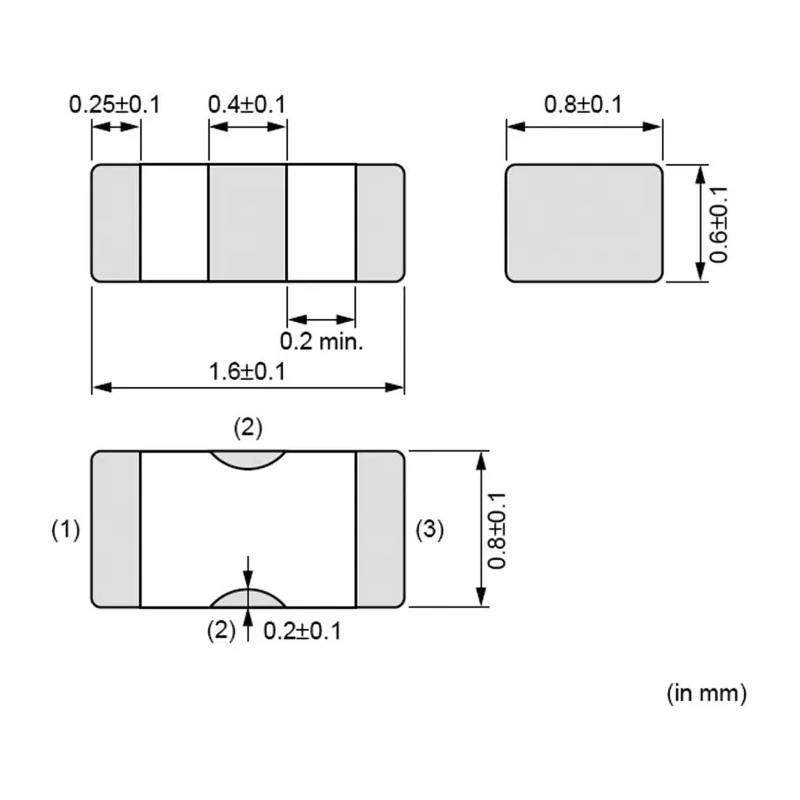

The 0603 package size supports high-density PCB layouts and surface mount technology workflows. Designed to remove electromagnetic interference up to GHz frequencies effectively. Compact 0603 surface mount package suitable for modern electronics.

Stable capacitance of 2.2nF with ±20% tolerance ensures circuit consistency. Wide operating temperature range from -55°C to 125°C for varied industrial environments. Low resistance (1000mΩ) for minimal signal loss and noise.

Reliable manufacturing origin with Murata’s high-quality standards in Japan.

This Signal Filter is ideal for use in electronics components assemblies in industrial machines, laboratory equipment, telecommunications, and electronic instrumentation. Its performance optimizes signal quality and equipment reliability where EMI is a concern.
