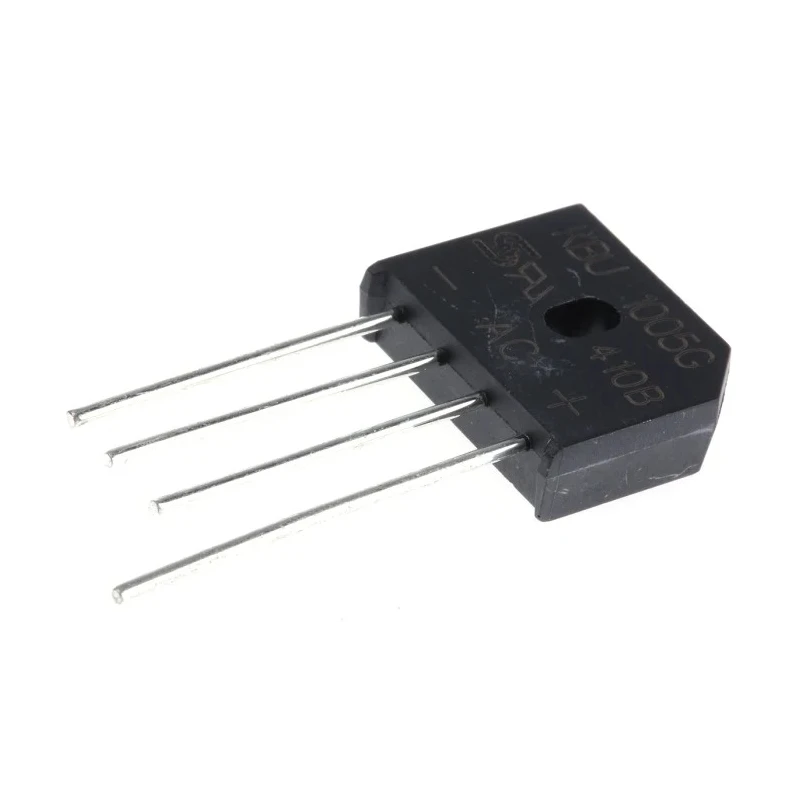

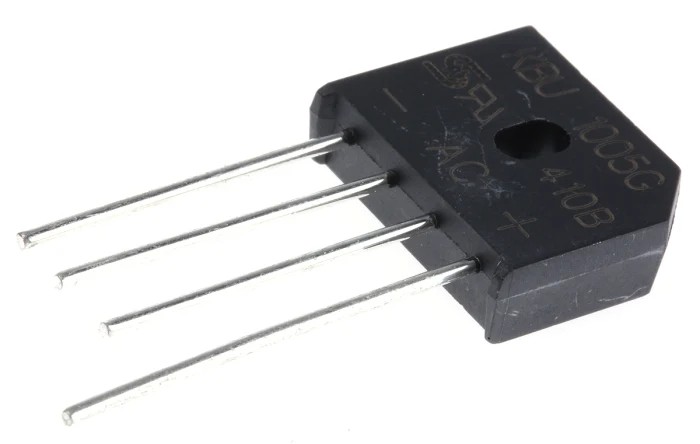

Taiwan Semiconductor Bridge Rectifier 600 V 200 A, 4-Pin Single KBU1005G
Specifications
| Country of Origin | India |
|---|---|
| Brand | Taiwan Semiconductor |
| Height | 19.3mm |
| Length | 23.7mm |
| Model | KBU1005G |
| Width | 7.1mm |
| Mount Type | Through Hole |
| Series | KBU100 |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | KBU |
| Minimum Operating Temperature | -55°C |
| Number of Phases | 1 |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 200A |
| Forward Current If | 10A |
| Peak Forward Voltage Vf | 1.1V |
| Taiwan Semiconductor Bridge Rectifier, 10A, 600V, 4-PinBrand | Taiwan Semiconductor |
Key Features
- Rated Peak Reverse Repetitive Voltage of 600 volts for reliable operation.
- Forward Current rating of 10 amperes suitable for medium power circuits.
- Peak Non-Repetitive Forward Surge Current of 200 amperes for transient tolerance.
- Compact dimensions with 23.7 mm length, 7.1 mm width, and 19.3 mm height.
- Operates between -55°C and 150°C ensuring stability under varied temperatures.
- Single-phase 4-pin configuration designed for SIL PCB mounting.
- Glass passivated junction and wire lead structure suitable for printed circuit board through-hole installation.
- Peak Forward Voltage of 1.1 volts and Peak Reverse Current of 5 microamperes for efficiency.
Product Description
Taiwan Semiconductor KBU1005G Bridge Rectifier is a 4-pin single-phase semiconductor device designed for converting alternating current (AC) into direct current (DC) with high reliability and efficiency. Operating at a Peak Reverse Repetitive Voltage of 600 volts and a Forward Current of 10 amperes, it is ideal for medium-power electronics applications.
The device uses a Through Hole mount with a KBU package type, featuring a compact form factor measuring 23.7 mm in length, 7.1 mm in width, and 19.3 mm in height. Its robust design supports operation in a wide temperature range from -55°C to 150°C and can withstand a Peak Non-Repetitive Forward Surge Current of 200 amperes, suitable for transient load conditions.
Key electrical characteristics include a Peak Forward Voltage of 1.1 volts and Peak Reverse Current of only 5 microamperes, contributing to high efficiency during operation. It incorporates a glass passivated junction and wire lead structure, making it suitable for SIL PCB mounting in various electronic devices and power systems.
This bridge rectifier comes from the reliable KBU100 series by Taiwan Semiconductor and complies with UL file E-96005, ensuring high quality and safety standards. Primarily used in converting AC to DC voltages, it finds applications in industrial machinery, electronic power supplies, automotive electronics, and HVAC systems.
Rated Peak Reverse Voltage of 600 volts for high durability. Forward Current rating of 10 amperes ensures sustained power flow. Temperature range from -55°C up to 150°C for stability in harsh environments. SIL PCB mounting Through Hole package design for easy integration.
Peak Non-Repetitive Forward Surge Current of 200 amperes tolerates transient surges. Compact size with dimensions of 23.7 mm length, 7.1 mm width, and 19.3 mm height. Low peak forward voltage (1.1 V) enhances operating efficiency.
Minimal peak reverse current (5 μA) reduces leakage losses. Glass passivated junction ensures long-term reliability. Suitable for power conversion in industrial, electronic, and commercial applications. Explore the Taiwan Semiconductor range for advanced semiconductor solutions in power electronics and electronic components at EnvMart.
Explore more products in our Bridge Rectifier Module category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The KBU1005G bridge rectifier has a peak reverse repetitive voltage of 600 volts, ensuring reliable operation in various applications.
This model is rated for a forward current of 10 amperes, making it suitable for medium power circuits.
It can withstand a peak non-repetitive forward surge current of 200 amperes, allowing it to tolerate transient conditions effectively.
The dimensions of this bridge rectifier are 23.7 mm in length, 7.1 mm in width, and 19.3 mm in height.
It operates within a temperature range of -55°C to 150°C, ensuring stability under varied environmental conditions.
The KBU1005G features a through hole mount type, designed for SIL PCB mounting.
The peak forward voltage of this model is 1.1 volts, contributing to its efficiency during operation.
The peak reverse current for the KBU1005G is 5 microamperes, which helps to minimize leakage losses.
This bridge rectifier is part of the KBU100 series by Taiwan Semiconductor.
It is primarily used in converting AC to DC voltages in industrial machinery, electronic power supplies, automotive electronics, and HVAC systems.
The KBU1005G bridge rectifier is manufactured in India.
This model features a 4-pin configuration, suitable for various electronic applications.
