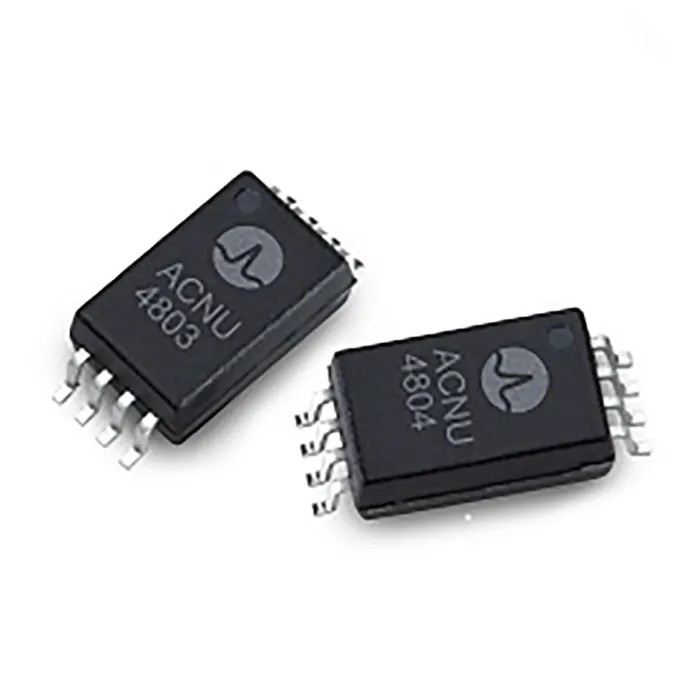

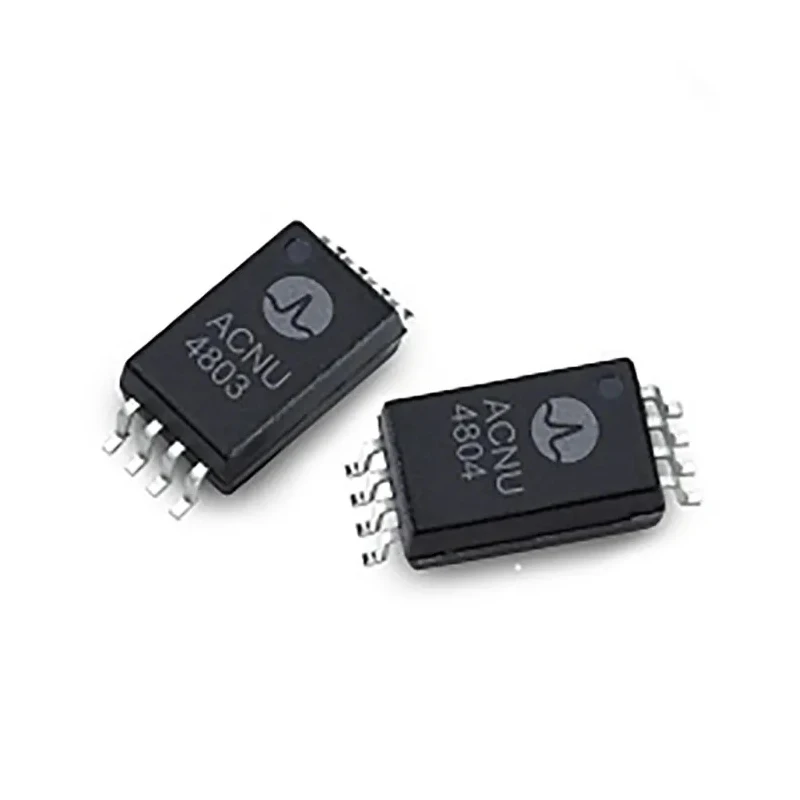

Broadcom Surface Mount Optocoupler ACNU-4803-000E, SSO8, 1.85V Forward Voltage, 8-Pin, 5000V Isolation
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Model | ACNU-4803-000E |
| Mount Type | Surface |
| Series | ACNU-4803 |
| Maximum Operating Temperature | 105°C |
| Package Type | SSO8 |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 20mA |
| Number Of Channels | 1 |
| Standards/Approvals | CSA, IEC 60747-5-5, UL1577 |
| Maximum Forward Voltage | 1.85V |
| Number of Pins | 8 |
| Typical Rise Time | 6ns |
| Isolation Voltage | 5000V |
| LED drive current | 12mA (min) |
| Industrial temperature range | -40°C to 105°C |
| Truth table guaranteed | Vcc from 4.5V to 30V |
| Low propagation delay, TPLH / TPHL | 120ns / 150ns (max) |
| Pulse Width Distortion | Minimized |
Key Features
- Provides 5000V isolation voltage for robust electrical safety.
- Features an 8-pin SSO8 compact surface mount package.
- Supports a maximum forward voltage of 1.85V with a typical rise time of 6ns.
- Operates reliably across an industrial temperature range from -40°C to 105°C.
- Includes high common-mode rejection and minimized pulse width distortion for accurate signal transmission.
- Capable of driving IPM, IGBT, and MOSFET interfaces, suitable for inverters and motor drives.
- Ensures positive output type with truth table guaranteed for Vcc from 4.5V to 30V.
Product Description
Broadcom ACNU-4803-000E is a high-performance optocoupler designed for demanding industrial applications that require robust isolation and fast signal transmission. Using a surface mount SSO8 package, it provides an isolation voltage of 5000V, suitable for protecting electronic circuits from high voltage surges while ensuring reliable logic transfer.
This optocoupler supports a maximum forward voltage of 1.85V and features an 8-pin SSO8 package that is compact and auto-insertable, ideal for high-density PCBs. The typical rise and fall times are 6ns, enabling rapid switching in real-time control systems. With an industrial operating temperature range from -40°C to 105°C, the ACNU-4803-000E is engineered for use in harsh environments and critical infrastructure setups.
It offers positive output type with totem pole output and guarantees performance with Vcc from 4.5V to 30V, allowing flexible integration into a variety of logic circuits. Its high common-mode rejection (minimum 50 kV/μs at VCM = 1500 V) ensures stable operation even in noisy environments, making it suitable for IPM, inverter, motor drive, IGBT/MOSFET gate drive, and digital isolation interfaces.
The ACNU-4803-000E minimizes pulse width distortion to provide accurate signal propagation with propagation delays (TPLH/TPHL) of 120ns/150ns maximum. It has a minimum LED drive current of 12mA, and is certified to CSA, IEC 60747-5-5, and UL1577 safety standards, supporting compliance and reliability requirements in highly regulated sectors.
This surface mount optocoupler addresses the needs of industrial automation, HVAC, motor control, and digital isolation applications, serving as a key component in systems requiring safe and precise transmission of digital signals across isolation barriers.
Suitable for IPM interface isolation, inverter systems, AC and brushless DC motor drives, isolated gate drive applications, and general digital isolation. Compact SSO8 form factor with 11-mm creepage and 10.5-mm clearance ensures easy PCB integration.
Performance specified for common IPM applications, providing reliability throughout the industrial temperature range. Browse more industrial Optocouplers and Broadcom category products on EnvMart to find reliable solutions for electronics, automation, and power management needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ACNU-4803-000E provides an isolation voltage of 5000V, ensuring robust electrical safety for sensitive circuits.
This model supports a maximum forward voltage of 1.85V, suitable for various applications in logic circuits.
It operates reliably within an industrial temperature range of -40°C to 105°C, making it suitable for harsh environments.
The typical rise time is 6ns, which allows for rapid switching in real-time control systems.
This optocoupler features a single channel, which is typical for many applications requiring digital isolation.
The minimum LED drive current required is 12mA, which is necessary for proper operation of the device.
The propagation delays are specified as TPLH of 120ns and TPHL of 150ns maximum, ensuring quick signal transmission.
It comes in an 8-pin SSO8 surface mount package, which is compact and suitable for high-density PCB applications.
It is certified to CSA, IEC 60747-5-5, and UL1577 safety standards, supporting compliance in regulated sectors.
The truth table is guaranteed for Vcc from 4.5V to 30V, allowing for flexible integration into various circuits.
It is suitable for IPM interface isolation, inverter systems, motor drives, and general digital isolation applications.
It offers a high common-mode rejection of a minimum of 50 kV/μs at VCM = 1500 V, ensuring stable operation in noisy environments.
