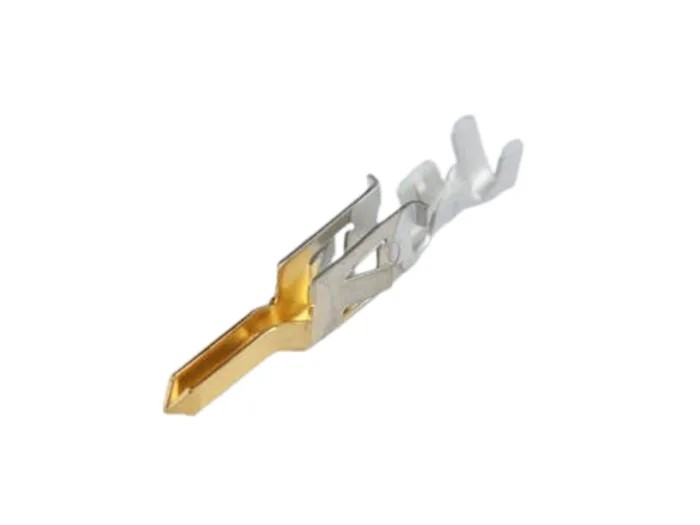

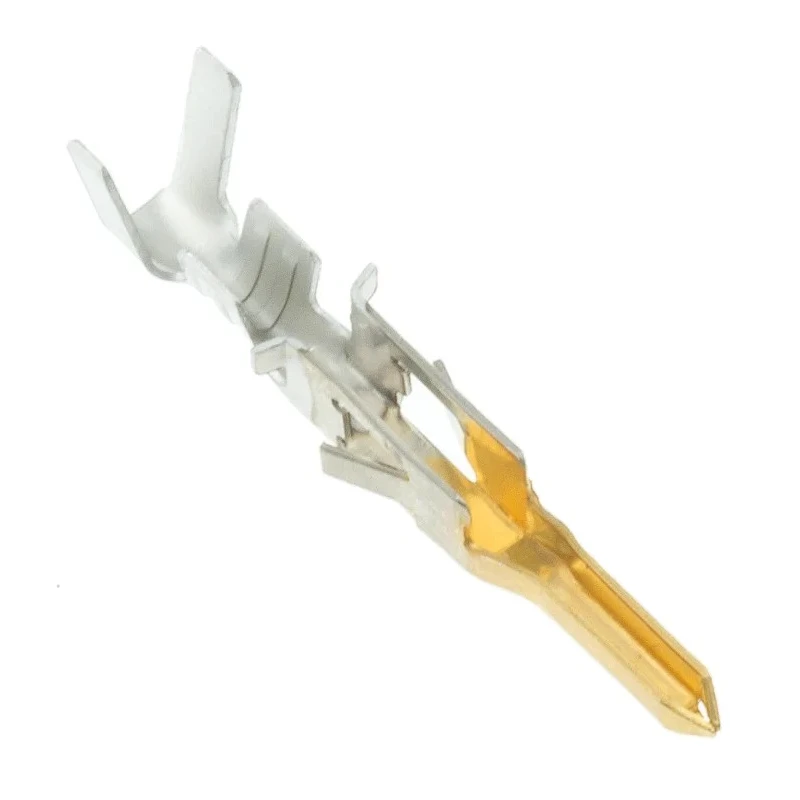

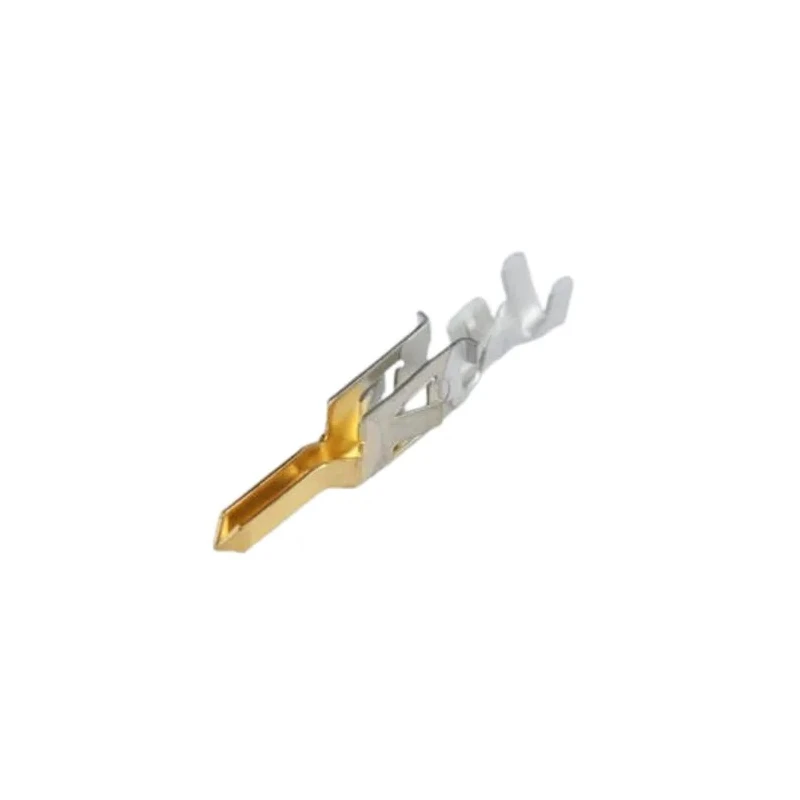

Molex 5558 Series Male Crimp Terminal for Mini-Fit Jr Connectors 24 AWG Min, 18 AWG Max, 9A Current 39-00-0220
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Current | 9A |
| Gender | Male |
| Contact Material | Phosphor Bronze |
| Series | 5558 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | Mini-Fit TPA and Mini-Fit BMI Connector Housings, Mini-Fit Jr |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.8mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 18AWG |
| Maximum Contact Resistance | 10mΩ |
| Molex 5558 Series Male Crimp Terminal, 24 AWG Min Crimp, 18 AWG MaxBrand | Molex |
Key Features
- Constructed from phosphor bronze with gold plating for durability and conductivity.
- Rated for a maximum current of 9A ensuring reliable high-power connections.
- Operating temperature range from -40°C to 105°C for versatile application.
- Compatible with Mini-Fit TPA and Mini-Fit BMI connector housings.
- Crimp termination type offering secure wire connections.
- Maximum contact resistance of 10 milliohms for efficient electrical performance.
- Supports wire insulation diameters between 1.30 and 3.10 mm.
Product Description
Molex 39-00-0220 Male Crimp Terminal from the 5558 series is engineered for use with Mini-Fit Jr connector housings including Mini-Fit TPA and BMI types. Designed to accommodate wire sizes from 24 AWG minimum to 18 AWG maximum, it ensures secure and durable electrical connections in a variety of industrial and electronic applications.
The terminal is constructed from phosphor bronze, providing strength and excellent electrical conductivity, while the gold plating further enhances conductivity and offers corrosion resistance for long-term reliability. Rated for a maximum current of 9A, it is suitable for demanding electrical systems requiring efficient current carrying capability.
This crimp terminal supports operating temperatures ranging from -40°C up to 105°C, making it suitable for environments with wide temperature variations. The maximum contact resistance of 10 milliohms ensures minimal energy loss and high performance.
Designed for crimp termination, it supports wire insulation diameters from 1.30 mm to 3.10 mm, providing versatility for various wire types. The terminal features multiple contact points and locking tangs to secure it firmly within connector housings, enhancing connection stability.
Applications include automation, electrical systems, mechanical systems requiring high current connections, and industrial electronic equipment. The product is recommended to be used with a hand crimp tool compatible with 16 to 24 AWG wire sizes to ensure proper termination.
Constructed from phosphor bronze with gold plating for durability and excellent conductivity. Rated for 9A maximum current capacity. Suitable for wire sizes 24 AWG minimum and 18 AWG maximum. Operating temperature range of -40°C to 105°C for varied environments.
Compatible with multiple Mini-Fit connector housings for flexible integration. Maximum contact resistance of 10 milliohms for efficient electrical performance. Supports wire insulation diameters from 1.30 to 3.10 mm. Explore more products in the Electronics & Electricals category at EnvMart, including a range of Crimp Terminals, connectors, and industrial electrical components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this crimp terminal is 9A, ensuring reliable high-power connections.
This terminal is compatible with wire sizes from 24 AWG minimum to 18 AWG maximum.
It has an operating temperature range from -40°C to 105°C, making it suitable for various environments.
The terminal is constructed from phosphor bronze and features gold plating for enhanced conductivity and corrosion resistance.
It is designed for use with Mini-Fit TPA and Mini-Fit BMI connector housings, as well as Mini-Fit Jr connector housings.
The maximum contact resistance is 10 milliohms, ensuring efficient electrical performance.
This terminal supports wire insulation diameters ranging from 1.30 mm to 3.10 mm.
It uses a crimp termination type, providing secure wire connections.
It is recommended to use a hand crimp tool compatible with 16 to 24 AWG wire sizes for proper termination.
The country of origin for this crimp terminal is India.
This crimp terminal belongs to the Molex 5558 series.
This terminal is suitable for various industrial and electronic applications, including automation and electrical systems requiring high current connections.
