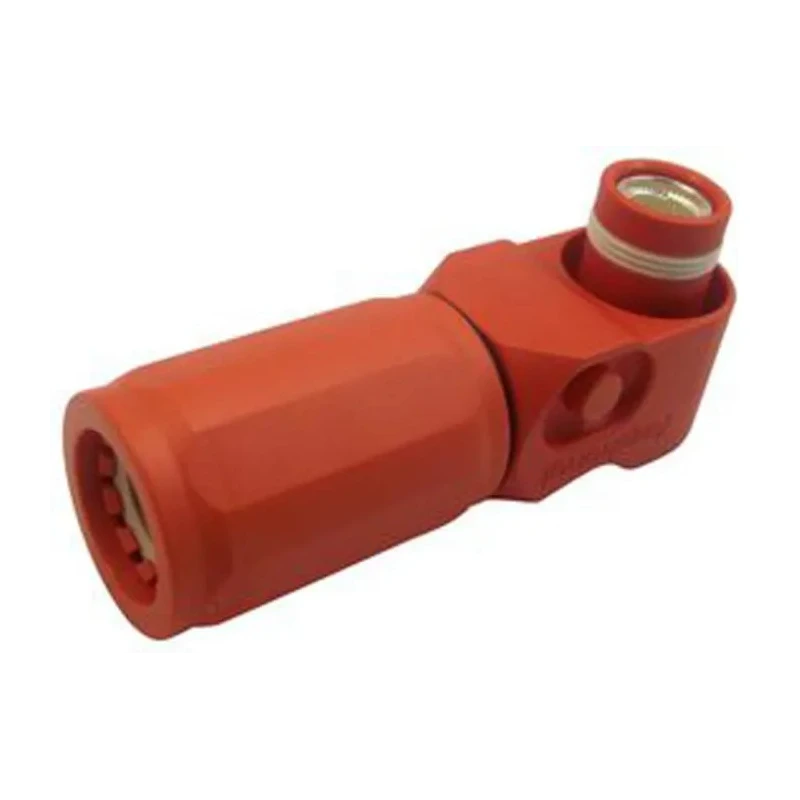

Amphenol Industrial SURLOK PLUS RADSOK EV Connector Male 200A 1000V Crimp Termination SLPPC50BSR0 / C10-730190-2500
Specifications
| Country of Origin | China |
|---|---|
| Brand | Amphenol Industrial |
| Colour | Red |
| Orientation | Right Angle |
| Current | 200A |
| Height | 88.5mm |
| Model | SLPPC50BSR0 / C10-730190-2500 |
| Depth | 40.5mm |
| IP Rating | IP67 |
| Connector Type | RADSOK |
| Width | 30.3mm |
| Mount Type | Cable |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | SURLOK PLUS |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Pin Diameter | 10.3mm |
| Number of Rows | 1 |
| Wire size | 50mm² |
| Operating Voltage | 1000V |
| For Use With | SurLok 1-Position Receptacle |
| Standards/Approvals | UL 94-V0 |
| Number of Contacts | 1 |
| Contact Gender | Female |
| Connector Gender | Male |
| Better World Claim | Renewable Energy Solution |
Key Features
- Designed with SURLOK PLUS instant locking mechanism for reliable and quick mating.
- Features a RADSOK connector type with 10.3mm pin diameter for high-conductivity connections.
- Suitable for 50mm² wire size with right-angle orientation and crimp termination type.
- IP67 rated housing made of thermoplastic ensures robust environmental sealing.
- Operates in temperatures from -40°C to 125°C with UL 94-V0 flammability rating.
- Keyed to prevent mismating and allows 360° rotation of the plug for easier installation.
- Ideal for electric vehicle, rail mass transit, battery management, process control, medical, and heavy equipment applications.
- Red color enhances visibility and identification in wiring setups.
Product Description
Amphenol Industrial SLPPC50BSR0 / C10-730190-2500 SURLOK PLUS RADSOK EV Connector Male is a high-performance 200A compact plug connector designed for demanding electric vehicle (EV) and industrial applications. Rated for 1000V operating voltage, this EV connector features a robust crimp termination ensuring reliable electrical and mechanical connections.
Constructed with copper alloy contacts and a thermoplastic housing, the connector offers excellent conductivity combined with durable environmental protection. The IP67-rated enclosure provides dust-tight and waterproof sealing, suitable for harsh operating environments.
Equipped with R4 RADSOK technology, it delivers high tensile strength connections with large conductive surface areas, enhancing reliability and safety in battery management systems (BMS), rail mass transit, process control, medical devices, and heavy equipment use.
The 10.3mm pin diameter and compatibility with 50mm² wire size enable efficient power transmission. The plug’s right-angle orientation and 360° rotation capability facilitate flexible and secure cable routing. It is keyed at 90 degrees to prevent mismating and features spring locking for instant secure engagement and easy press-to-release unlocking.
Designed with SURLOK PLUS instant locking mechanism for reliable and quick mating. Features a RADSOK connector type with 10.3mm pin diameter for high-conductivity connections. Suitable for 50mm² wire size with right-angle orientation and crimp termination type.
IP67 rated housing made of thermoplastic ensures robust environmental sealing. Operates in temperatures from -40°C to 125°C with UL 94-V0 flammability rating. Keyed to prevent mismating and allows 360° rotation of the plug for easier installation.
Ideal for electric vehicle, rail mass transit, battery management, process control, medical, and heavy equipment applications. Red color enhances visibility and identification in wiring setups.
This connector is part of the Amphenol Industrial SURLOK PLUS series, trusted for sustainability and high performance in EV connectors. It supports advanced applications requiring secure power transmission and reliability under challenging conditions.
Explore the EnvMart range for more industrial-grade EV Connectors and power connectors optimized for automotive and heavy equipment usage.
